Home > Products > Ridge Cap Machine > 312 Steel Roof Ridge Cap Forming Machine

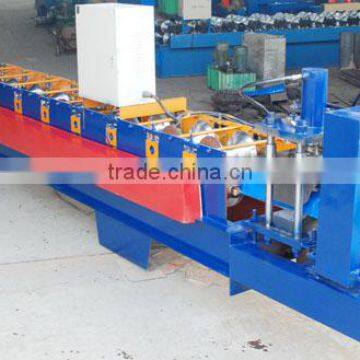

312 Steel Roof Ridge Cap Forming Machine

FOB Price

US$ 7,600 - 15,600 / Set

1 Set(Min. Order)

Port TIANJIN PORT
Payment TermsT/T

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Condition	New	Type	Tile Forming Machine
Tile Type	Colored Steel	Use	Roof
Production Capacity	0-15m/min	Place of Origin	Hebei, China
Brand Name	Toppo Machinery	Model Number	312 Steel Roof Ridge Cap Forming Machineing Machine
Power(W)	3kw	Voltage	380V, 50Hz, 3 phase
Dimension(LWH)	about 7.50.61.0m(LWH)	Weight	3.5ton
Certification	CE	Warranty	TWO Years warranty, whole life service
After-sales Service Provided	Engineers available to service machinery overseas

Product Description

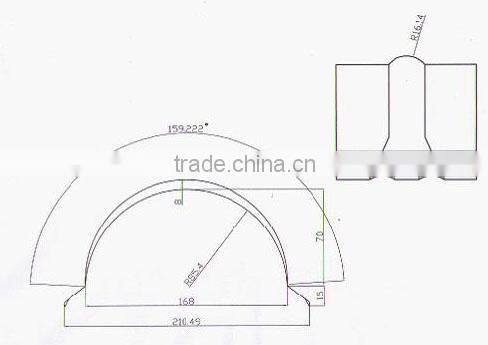

1. Drawing of Profile

what makes us better than others?

1. Professional.	We have specialized in 312 Steel Roof Ridge Cap Forming Machine since 1998. 15 years' rich experience, keep improving our quality.
2. Low price	a. the low labor cost, b. convenient transportation, c. complete supporting industries, we can save your money from every part.
3. Fully automatic, easy operation	You just input the length of sheets, and how many piece you need, then the machine will start production according to your requirement. Easy operation, steady performance.
4. OEM / ODM	OEM / ODM, customers’ design, color & logo are accepted. Our outstanding experts and skilled workers are devoting their hard working, to ensure the machine with high quality.
5. TWO Years warranty, whole life service.	Keep troubles far away from you. Within the TWO-YEARS period, for any parts damaged due to quality problems, we offer the replacement parts to the client free of charge.

3. Brief Introduction

This product is widely used in many kinds of industrial factory, civilian buildings, and wall board for attached part product. It has advantage of pretty appearance, durable using and so on.

It is producted continuously as roll forming machine instead using bending machine to make angel tile saving human resources, lower labor cost.

This machine is composed of automatic discharge table, feed leading table, main forming machine, cutting device, hydraulic station and computer control system.

Optional system are normal uncoiler and hydraulic uncoiler.

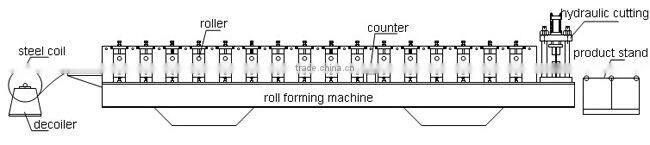

4. Working Flow for 312 Steel Roof Ridge Cap Forming Machine

decoiling the sheet-sheet guiding-roll forming-measure length-cutting the panel-panels to the supporter

5. Technical Details

a. main forming machine

Suitable power	380V, 50hz, 3 phase. Or according to your actual requirement
Suitable material	Q235 or equivalent, Colored Steel plate, galvanized board
Width of material	500 mm
Thickness of material	0.3-0.6mm
Forming steps	14 steps
Rolling material	High grade 45# steel, hard chrome plating, 0.05 mm
Power	3 kw
Active shaft material:	high grade NO.45 carbon wrought steel at Φ 65mm
Diameter of the roller	65 mm
Dimensions	about 7.50.61 m
Weight	About 3.5 T

b. post cutting

Cutting type	Hydraulic mold cutting, fully automatic
Material of cutter	Cr12
Hydraulic station	3 kw

6. Sales map

Started from 1998, Toppo Machinery Co., Ltd have exported high quality 312 Steel Roof Ridge Cap Forming Machines to more than 20 countries, including: South Africa, Tanzania, Australia, India, Indonesia, Iran, Macedonia, Ghana, Trinidad and Tobago, Sri Lanka, Sudan, Guyana, America, Abidjan, Kazakhstan, Nigeria, Bolivia, Bengal, Chile, Armenia, the UK, GHANA...

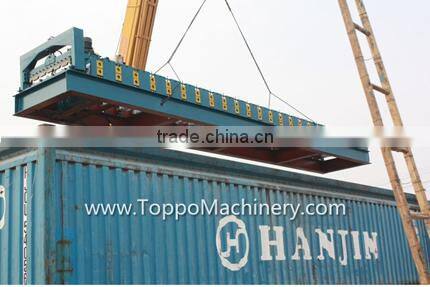

7. loading into container for 312 Steel Roof Ridge Cap Forming Machine

a. Need one 40ft container;

b. Main body of machine fixed to container by 8mm diameter steel wire;

Rollers and shaft is covered with anti-rust oil;

Spare parts in carton box.

8.Our Services

a. TWO-Years product warranty.

b. Training and installation available
c. The technical support for the whole life

9.Contact Us

	Toppo Machinery Co., Ltd

	BotouCity, Hebei Province, China
	0086-15631793989
	ToppoMachinery
	www.YouT/ToppoMachinery
