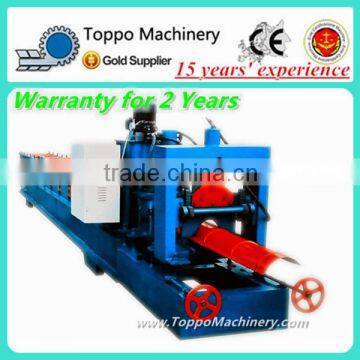

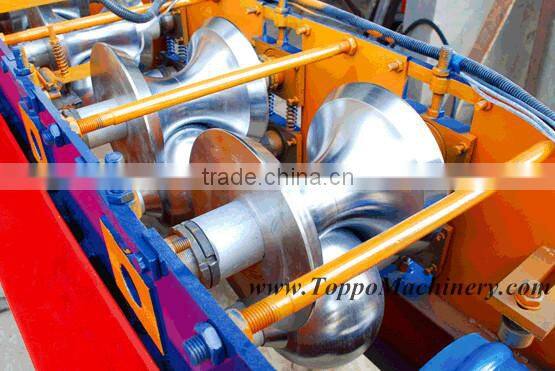

Glazed Metal Roof Ridge Cap Producing Machine

1. Professional

a.15 years' rich experience;

b.Specialized in Glazed Metal Roof Ridge Cap Producing Machine since 1998;

c.Keeping improving the quality.

2. Low price

a. Low labor cost;

b. Convenient transportation;

c. Complete supporting industries.

In short, we can save your money from every part.

3. Fully automatic,

  easy operation

a. Equiped with PLC : Ensuring high accuracy and easy operation.

b. Automatic and Easy Operation: You just input the length of sheets, and how  many piece you need, then the machine will start production according to your requirement.

c.Steady Performance.

4. OEM / ODM

a.Our outstanding experts and skilled workers are devoting their hard working, to  ensure the machine with high quality.

b.Customers’ design, color & logo are accepted.

5. TWO-Years warranty,  whole life service.

a.Keep troubles far away from you.

b.Within the TWO-YEARS period, we could offer the replacement parts to the client free of charge for any parts damaged due to quality problems .

a. General

Model Number

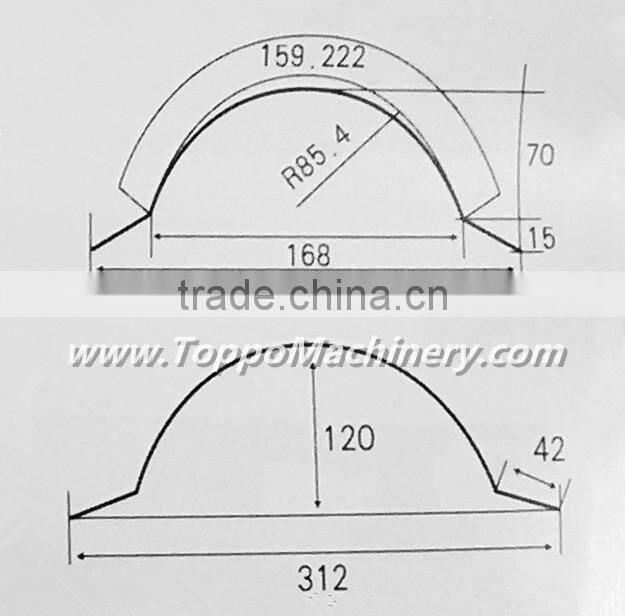

312 Glazed Metal Roof Ridge Cap Producing Machine

Suitable Material

Q235 or equivalent, Colored Steel plate or galvanized board

Material Width

500 mm

Material Thickness

0.3-0.6 mm

Dimension

about 7.5*0.65*1.0m(L*W*H)

Length of the Sheet

You can set the length according to your need. It is controlled by PLC which can ensure the accuracy of ±1mm.

Cutting

Automatically stop and cutting when it comes to the set length.

b. Components Details

Roller Material

High grade 45# steel. Hard chrome plating 0.05mm.

Diameter of the Shafts

Φ65mm, high grade 45# steel. Treating process: tempering- finish turning, high rigidity, hard to deform.

Main Frame

400# steel.More stable and no shaking.

Middle Plate

16mm. We use thicker plates to ensure stability.

Forming Steps

14

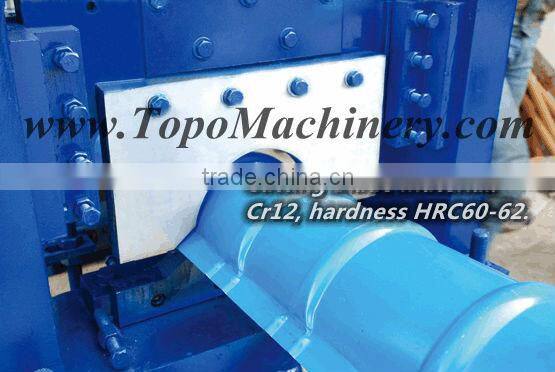

Cutting Blade Material

Cr12, hardness HRC60-62.

Active Shaft Material

45# steel

c. Electric Components

Suitable Power

380V, 50 Hz, 3 phase or according to your need.

Hydraulic Station Power

3kw

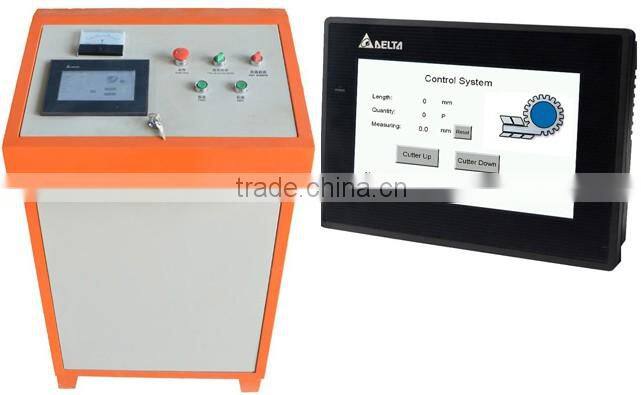

Screen

5.7 inch touch screen, easy to operate

PLC

Delta DVP14ES, well-adapted to various conditions, such as moisture, electromagnetic disturbance.

Frequency Converter

Delta VFD-M. It has the advantage of slowing down before cutting, to ensure the length accuracy (±1mm, far better than industrial standard ±3mm).

Length Measurement Device

Omron, made in Japan. It features with high accuracy and stability
