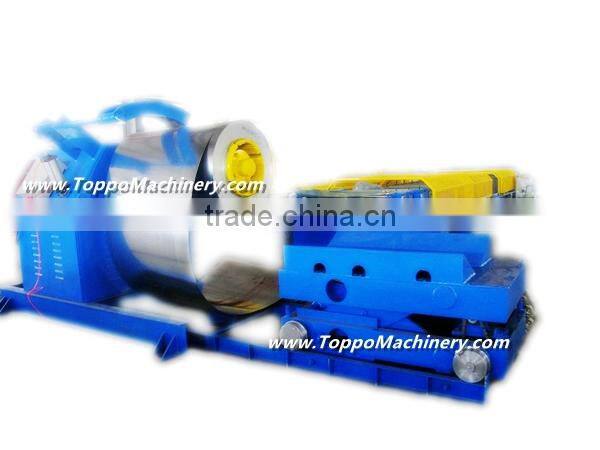

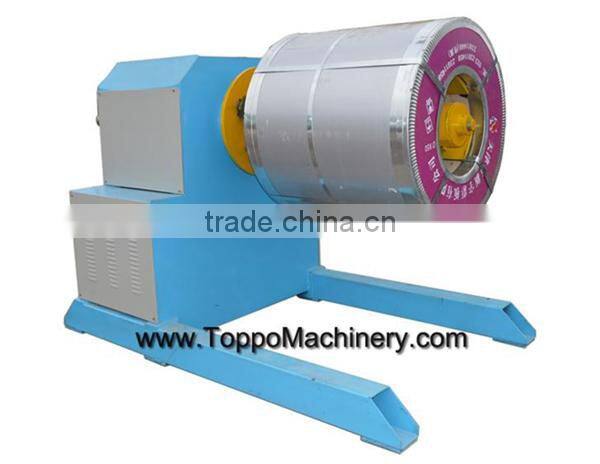

5 Ton Automatic Steel Uncoiling Machine
- TIANJIN PORT
- T/T Credit Card
You May Like
Product Details
| Condition | New | Type | Decoiler | |
| Tile Type | Steel | Use | Other | |
| Production Capacity | 0-15m/min | Place of Origin | Hebei, China | |
| Brand Name | Toppo Machinery | Model Number | 5 Ton Automatic Steel Uncoiling Machine | |
| Power(W) | 4kw | Voltage | 380V, 50Hz, 3 phase | |
| Dimension(L*W*H) | about 3*1.6*1.6 m (L*W*H) | Certification | CE | |
| Warranty | TWO Years warranty, whole life service | After-sales Service Provided | Engineers available to service machinery overseas |
Product Description
Specifications
1. Guarantee Period: TWO-Years;2. Full-automatic: Easy to operate and high efficient;
3. Training and installation available.
1. Company Profile
Toppo Machinery Co., Ltd. is a professional manuafacturer on 5 Ton Automatic Steel Uncoiling Machine. We provide an extensive line of products, including roof and wall panel machine, tile roof machine, purline forming machine, floor decking machine and other associated equipment.
what makes us better than others?
1. Professional | a.Specialized in 5 Ton Automatic Steel Uncoiling Machine since 1998; |
2. Low price | a. The low labor cost; |
3. Fully automatic, easy operation | a. Easy to operate; b. Steady performance. |
4. OEM / ODM | a. Customers’ design, color & logo are accepted. b. Our outstanding experts and skilled workers are devoting their hard working. Ensure the machine with high quality |
5. TWO Years' warranty, whole life service | Within the TWO-YEARS period, for any parts damaged due to quality problems, we offer the replacement parts to the client free of charge. Keep troubles far away from you |
2. Brief Introduction

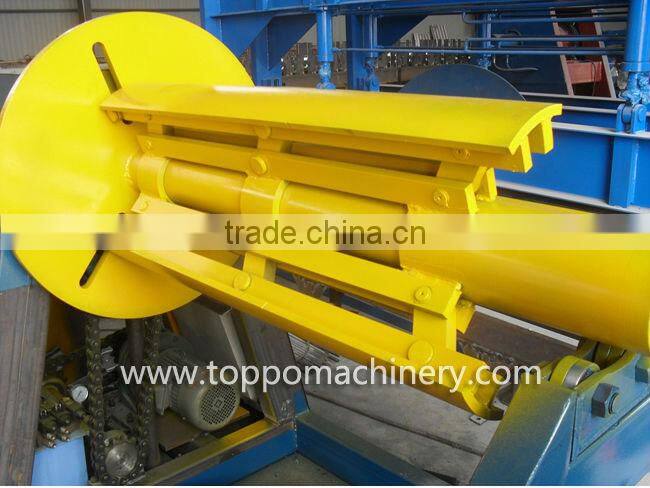

5 Ton Automatic Steel Uncoiling Machine is an auxiliary equipment for roll forming machine. It is composed of feed main machine, hydraulic station, CNC control system. When it works together with roll forming machine and auto stacker, they make up a completely steel panel production line.
3. Working Flow for 5 Ton Automatic Steel Uncoiling Machine
Loading coil-Expanding to fix the coil-Uncoiling-Feeding the sheet into roll forming machine.
There is a sensor, to keep uncoiler goes at the same speed as roll forming machine.
4. Technical Details
a. Main technical parameters
| |
Material | Cold rolled sheet, galvanized sheet, pre-painted sheet, and stainless steel sheet. |
Suitable Thickness | 0.3-1.5mm |
Max Width of Material | 1250mm |
Max Loading Weight | 5T |
Inner Diameter | 508mm |
Outer Diameter | 1200mm |
Uncoiling Speed | 0-15 m/min, speed adjustable. |
5. Sales map
Started from 1998, Toppo Machinery Co., Ltd has exported high quality 5 Ton Automatic Steel Uncoiling Machines to more than 20 countries, including: South Africa, Tanzania, Australia, India, Indonesia, Iran, Macedonia, Ghana, Trinidad and Tobago, Sri Lanka, Sudan, Guyana, America, Abidjan, Kazakhstan, Nigeria, Bolivia, Bengal, Chile, Armenia, the UK, GHANA...
6. Loading into container for 5 Ton Automatic Steel Uncoiling Machine
a.Need one 20 ft container.
b.Main body of machine fixed to container by 8mm diameter steel wire, rollers and shaft is covered with anti-rust oil.
c.Spare parts in carton box.
7.Our Services
a. TWO-Years product warranty.
b. Training and installation available
c. The technical support for the whole life
...
