STAINLESS STELL WIRE MESH CANTON FAIR

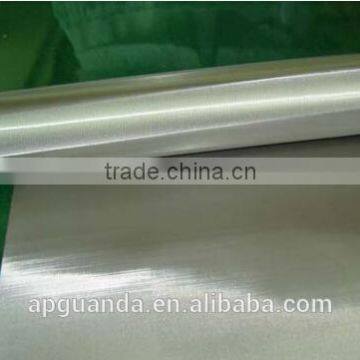

Stainless steel wire mesh is made of high quality stainless steel wire under certain temperature conditions, after drawing machine stretched to a predetermined wire diameter and at a constant temperature, clean, clean factory in knitting machine made by braiding.

Feature:
Structural precision, mesh uniform, filtration accuracy, wear-resistant, high temperature, acid resistance, corrosion resistance

Application:
1.screening and filtering under acid, alkali conditions
2.mud mesh in Petroleum industry,screen filter mesh in chemical fiber industry, pickling network in electroplating industry
3.Used in industry and construction, filter sand, filter liquid and gas

stainless steel wire mesh main parameters

1.Material：

stainless steel wire，Nickel wire，Brass wire.
Stainless steel wire include：SUS302、304、304L、316、316L etc.

sh/mesh counts：

The mesh number per inch. Mesh reflects the mesh fine or close.

Nomarly, it is called fine mesh more than 80 mesh,it is called coarse mesh less than 80 mesh.

3.wire diameter (unit: mm or gauge or inch)
Include warp/line wire and cross/weft/shute wire
Eg,80*80*0.12mm*1m*30m= mesh counts:80, wire diameter:0.12mm,width:1m length:30m

4.opening size: or Aperture/mesh size(unit：MM OR INCH)

5.selvage:
With shuttle：using close selvage or round ended when less than 20 mesh
Without shuttle: using flash selvage when more than 20 mesh.

6.width and length:(unit: meter or inch or feet)
Common width:3inch、4inch、5inch、6inch=0.914m、 1.22m、 1.524m、 1.83m
Common length：100inch=30.5m

7.quantity：square meter or square meter/roll

Packing：paper tube inside+water proof paper+plastic film+woven bag+Bubble wrap(more than 200 mesh)
