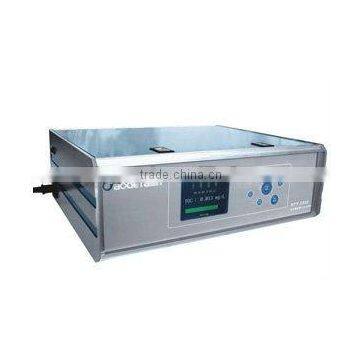

HTY-MC25 total organic carbon (TOC ) analyzer

toc analyzer

HTY TOC Analyzer is a measuring and analytical instrument which has high performance. Using membrane conductmetric detection technology which avoiding the disturb from impurity ion. Using double-wavelength ultraviolet nano method,the oxidation capacity has raising 100 times than traditional oxidation method with single-wavelength ultraviolet which avoiding the oxidizer contained gas or other dangerous impurities.


TECHNICAL PARAMETER:
1. Power supply:220V
2. Mains frequency:50Hz
3. Rated output:150W
4. Dimension:48CM,42CM,16CM
5. Measuring limit:0.001mg/L
6. Measuring precision:±5%
7. Measuring range:0.01mg/L-25mg/L
8. Analyze time:6min
9. Response time: within 30 min
10. sample temperature:1-95°C
11. Sample speed inside:0.35ml/min

FEATURES:
1. Amend and proof simply.
2. Low cost and consumption.
3. Used for laboratory with auto-sample device.
4. Small, light, low energy consumption and easy to move.
5. Membrane conductometric technology and UV oxidation.
6. Complete service after selling.
7. Designed with buzzer alarm for upper limit.
8. Easy to test according to USP and CP.
9. Large 320*234 color screen and personalized interface.
10. RS232 digital interface and micro-printer interface.

APPLICATIONS:
Pharmacy, drinking water supplies,  biochemistry, environmental monitoring, purity test.
