Steel Support and Ring Lock Scaffolding for Construction
- Qingdao Port
 - T/T

You May Like
Product Details
| Place of Origin | Shandong, China | Brand Name | qdyiyu | |
| Model Number | Cup lock Scaffolding | Type | Scaffolding Parts | |
| Scaffolding Part Type | Scaffolding Props |
Product Description
Steel support and ring lock scaffolding for construction
Product Description
Yiyu Group which is one of the largest Scaffolding R&D, manufacturing and trading group company in China, our products follow SGS, TUV, EN39, EN71, we are able to best serve our customers by providing a one-stopshopping&service company, scaffolding system, frame systems, galvanized steel tube, steel prop and the accessories are all available in our group.
1). Description:
Place of Origin  | Shandong China  |
Brand Name  | Yiyu  |
Size of Tube  | 48.3 * 3.25mm  |
Material Standard  | Q235 /Q345 carbon steel  |
Surface Treatment  | hot dipped galvanized, painted, pre-galvanized  |
Packaging Detail  | steel pallet, packed in bundle  |
Delivery Detail  | 25-30 days after deposit  |
Other Components  | ledger, vertical, diagonal brace, ladder, catwalk, jack base  |
2). Specificationos:

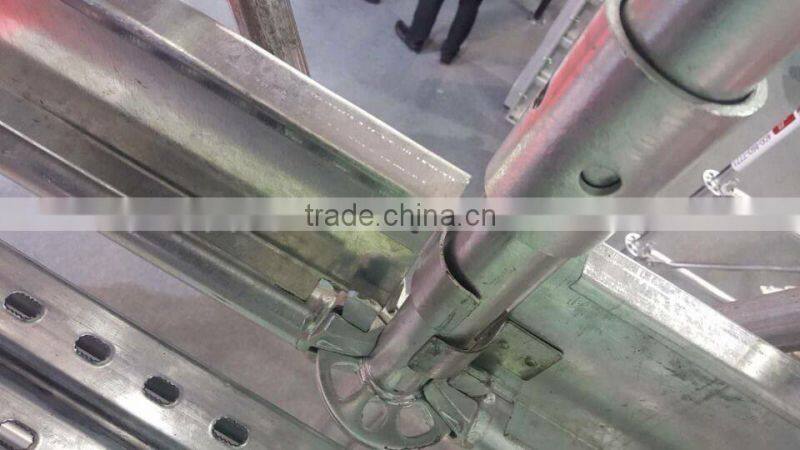

RINGLOCK VERTICAL/STANDARD WITH SPIGOT
(48.3mm x 3.25mm, Q235, Hot Dipped Galvanized)
Description  | Weight  |
Ring-Lock Standard 500mm  | 2.76kg  |
Ring-Lock Standard 1000mm  | 5.18kg  |
Ring-Lock Standard 1500mm  | 7.61kg  |
Ring-Lock Standard 2000mm  | 10.03kg  |
Ring-Lock Standard 2500mm  | 12.45kg  |
Ring-Lock Standard 3000mm  | 14.87kg  |
Ring-Lock Standard 4000mm  | 19.72kg  |
RINGLOCK HORIZORTAL LEDGER
(48.3mm x 3.0mm, Q235, Hot Dipped Galvanized)
Description  | Weight  |
Ring-Lock Ledger 1000mm  | 4.62kg  |
Ring-Lock Ledger 1500mm  | 6.50kg  |
Ring-Lock Ledger 2000mm  | 8.38kg  |
Ring-Lock Ledger 2500mm  | 10.27kg  |
Ring-Lock Ledger 3000mm  | 12.16kg  |
RINGLOCK DIAGONAL BRACE/CROSS BRACE
(48.3mm x 3.2mm, Q235, Hot Dipped Galvanized)
Description  | Weight  |
Ring-Lock Diagonal 1000x2000mm  | 10.06kg  |
Ring-Lock Diagonal 1500x2000mm  | 10.95kg  |
Ring-Lock Diagonal 2000x2000mm  | 12.13kg  |
Ring-Lock Diagonal 2500x2000mm  | 13.5kg  |
Ring-Lock Diagonal 3000x2000mm  | 15.01kg  |
3). Why Choose Us:
1. Professional Scaffolding Manufacturer
2. High Production Capacity
3. Best Price & After-sell Service
4. Timely Delivery
5. Authorty Certification
6. Technical Support
7. 18 Years' Experience
8. 6S Management
4). We also supply:
1. Ringlock System (Series Products)
2. Frame System
3. Kwikstage System
4. Cuplock System

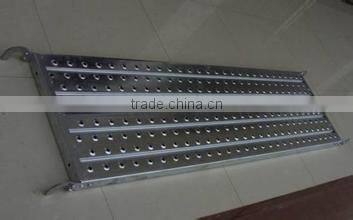

5. Scaffolding Metal Plank
6. Adjustable Screw Jack Base
7. Adjustable Steel Prop
8. Galvanized Scaffolding Tube or Pipes
9. Scaffolding Step Ladder or Stair Case
10. Scaffolding couplers & Formwork accessories
