Home > Products > Wireless Load Cell > Wireless Electronic Scale For Load Testing
Wireless Electronic Scale For Load Testing
USD $1,000 - $10,000
/ Piece
1 Piece(Min.Order)
- 100 Piece / Pieces per Month
- Qingdao
- T/T Credit Card
You May Like
Product Details
| Place of Origin | Shandong, China | Brand Name | Doowin,Dooflex | |
| Model Number | Wireless Load Cell | Type | Other, Crane Scale, Load Cell | |
| Power Supply | Battery | Display Type | Wireless Display | |
| Rated Load | 200ton | Accuracy | 2ton~200ton |
Product Description
Wireless Electronic Scale For Load Testing
Load cell is the necessary dynamometer instrument for the load testing with water filled weight bags. Measuing capacity is available as 1t, 2t, 3t, 5t, 10t, 20t, 30t, 50t, 100t, and 200t.

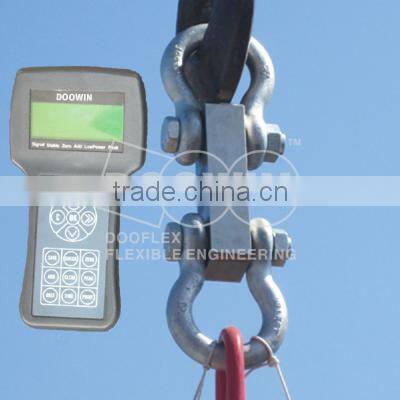

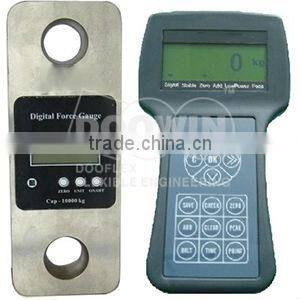

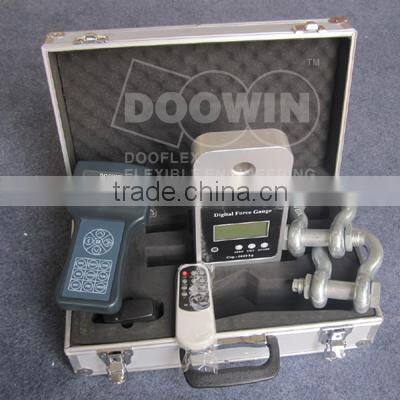

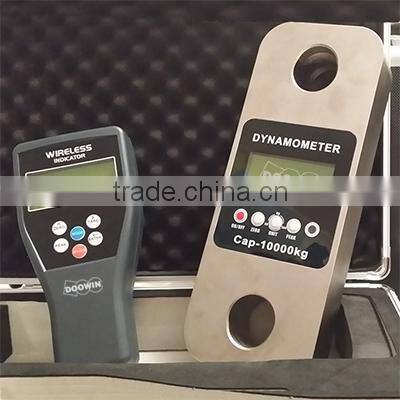

Wireless load cell used for the weight measuring of proof load testing using water weight bags. The load cell set consist of a load link with two shackles, wireless indicator.
Specification of Load Cell
| Capacity | Weight(kg) | A (mm) | B (mm) | C (mm) | D (mm) | Φ (mm) | H (mm) | Material |
| 2t | 1.7 | 245 | 112 | 37 | 190 | 43 | 335 | Aluminum |
| 5t | 2.7 | 285 | 123 | 57 | 210 | 58 | 405 | Aluminum |
| 10t | 10.4 | 320 | 120 | 57 | 230 | 92 | 535 | Alloy Steel |
| 50t | 39 | 465 | 150 | 104 | 305 | 184 | 930 | Alloy Steel |
| 100t | 81 | 570 | 190 | 132 | 366 | 229 | 1230 | Alloy Steel |
| 200t | 210 | 725 | 265 | 183 | 440 | 280 | 1380 | Alloy Steel |
Technical Data of Load Cell
| Display: | 18mm 6digits LCD |
| Power On Zero Range: | 20% F.S. |
| Manual Zero Range: | 4% F.S. |
| Tare Range: | 20% F.S. |
| Stable Time: | ≤10 seconds |
| Overload Indication: | 100% F.S. + 9e |
| Max. Safety Load: | 125% F.S. |
| Ultimate Load: | 400% F.S. |
| Battery Life: | ≥40 hours |
| Battery Type: | “LR6(AA)”size alkaline batteries. 1.5V x 3 |
| Operating Temp.: | - 10°C ~ + 40°C |
| Operating Humidity: | ≤85% RH under 20°C |
| Wireless Distance: | Min. 80m [200m(optional)] |
| Wireless Frequency: | 2.4GHz(default),433MHz,860MHz(optional) |
FAQ
1.Q:What is the MOQ about the Load Cell ?
A: The MOQ of load cell is 1 pc.
2.Q: How about the worranty of load cell
A:1 year
3.Q:What is the payment of the load cell ?
A:T/T or L/C
Contact Us
- Qingdao Doowin Rubber And Plastic Co., Ltd.
- Contact nameWang David Chat Now
- Phone86-532-89082039
- AddressNo.18 of Xiazhuang Industry Park, Chengyang, Qingdao, Shandong
