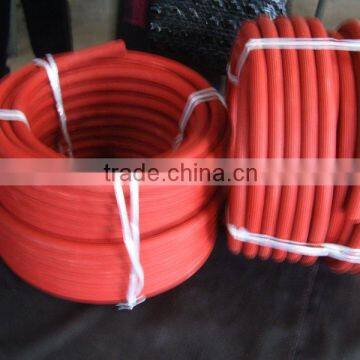

industrial rubber hoses

Specifications

Specifications

1. HIGH PRESSURE

2. Oil resistant synthetic rubber

3. weather resistant synthetic rubber

4. Temperature range : -40 °C to +100 °C

5. high tensile

6. SBR with good wear resistant, anti-static

7. High strength textile cord or Steel wire braid

8. .Anti-impact and weather-proof

9. water conveyance at coal excavations

Features:

1. The hose has the double properties of bearing both the positive and negative pressures,can be used normally under the pressure of-80kpa(600mm mercury)at the vacuum.The hose can't become flat under pressure,and can't off from it's layer,and has good bending property the body is solid and is capable of adapting to working conditions

2. Oil Suction and Discharge Hose is designed for sucking and conveying most commercial gasoline,LP gas, crude oil, diesel fuels, and other petroleum products where heavy duty diameter hose is required. Suction and Discharge Service both are available. Max aromatic content 50%

Applications:

1. Abrasive blast applications such as cleaning , paint and finish removal, and preparation and finishing of metal , stone ,sand, and glass Construction

2. Handles sand , steel shot, and other highly abrasive materials.

Abrasive blast applications such as cleaning , paint and finish removal, and preparation and finishing of metal , stone ,sand, and glass Construction:

3. Oil Suction and Discharge Hose is designed for sucking and conveying most commercial gasoline,LP gas, crude oil, diesel fuels, and other petroleum products where heavy duty diameter hose is required.

Structure

ube : Synthetic rubber resisting the deteriorating effects of petroleum products, not discolor fluids.

Reinforcement : multiple high strength tire cords (or with round steel wire which helixed in rubber) with internal static copper wire

Cover : Oil and Abrasion and weather resistant synthetic rubber . Corrugated Cover

Hose end: With optional Metal flange joints or Cam lock couplings with hose clamps .

Specification:

Inside Diameter: 102mm----457mm

Length: Up to 20 meters

Working pressure: 0.7MPa----2.0MPa

Working Temperature: -30 °C to +90 °C

 Physical Characters Of Common V-belt(wrapped)GB/T1171-2006
