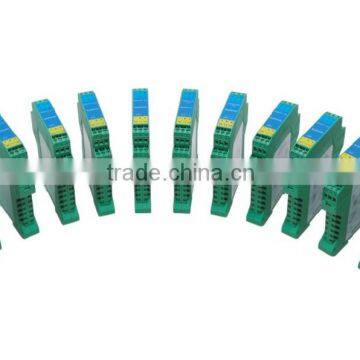

SB3000-EX Switch Amplifier,Isolated Barrier

Package of Switch Amplifier:1Pcs/Ctn for pressure transmitter,Packing Size: 42*35*30cm/ctn

SB3000-Ex series isolated barriers are designed explicitly according to latest national standard for protection of electrical signals located in hazardous areas.
Installed in safe areas, SB3000-Ex series Isolated barriers work in company with intrinsically safe instruments located in hazardous areas to guarantee a totally IS explosion protection system. With the inside signal transfer module, SB3000-Ex series isolated barriers can also play the roles of RTD temperature transmitter, thermocouple temperature transmitter and mV transmitter, as well as repeater power supply, solenoid driver and so on.
With whole series carrying approval mark of the National Supervision and Inspection Center for Explosion Protection and Safety of Instrumentation(NEPSI), SB3000-Ex series Isolated barriers are suitable for interfacing solution between safe and hazardous areas ranking [Ex ia]ⅡC.

No high-integrity earth needed
SB3000-Ex series Isolated barriers need no dedicated ground and consequently eliminate the inherent interference of ground loop.

Full input/output/power supply isolation
Full 3-port isolation between the input, output and power supply circuits achieves highly floating systems for the pursuit of extraordinary resistibility to complicated electromagnetic interference from industrial environment.

High performance components
High performance components are widely adopted for optimal signal integrity, taking into account both high accuracy and low drift of full range.

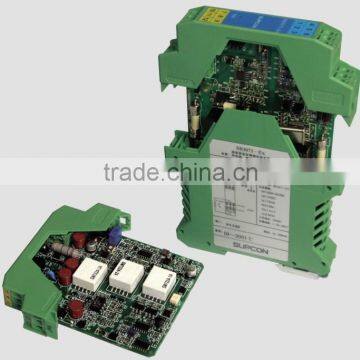

Compact modular design
With compact modular design, SB3000-Ex series isolated barriers provide wide application range in the minimum space.

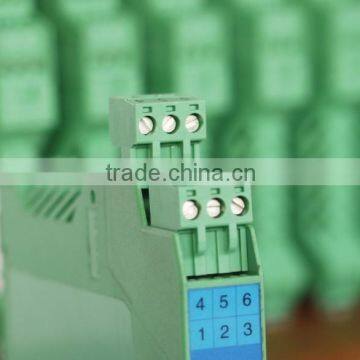

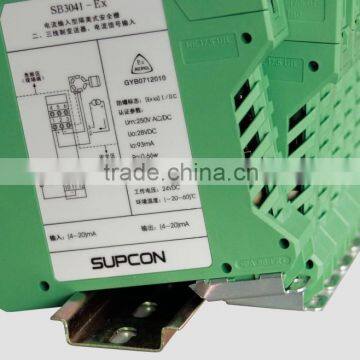

Standard DIN-rail mounting and PLUG & PLAY terminals
Standard DIN rail mounting format ensures convenient and steady installation, while application of PLUG & PLAY connector ensures the convenience of maintenance.

Features

l Certified as intrinsic safety for connection into Zone0, ⅡC, T4- T6 hazardous areas worldwide.

l No high-integrity earth needed.

l Full input/output/power supply isolation

l High voltage isolation

l LED indicators

l PLUG & PLAY terminals

l High-density assembly

l Standard DIN- rail mounting

Environmental Limits

Normal operating conditions:

Operation temperature:(-20~60) ℃

Storage temperature:(-40~60) ℃

Relative humidity:(5~95) % RH

Safety Standards and Certifications

All units are certified for connection into Zone0, ⅡC, ⅡB, ⅡA, T4-T6 hazardous areas worldwide.

Intrinsic safety:GB3836.4-2000 (eqv. IEC60079-11:1999)

Safety standard:GB4793.1-2007 (eqv. IEC 61010-1:2001)

Mechanical protection: IP20

Physical

Weight:150g approx.

Dimension:114.5mm×99.0mm×17.5mm (All except SB3017-Ex)

114.5mm×99.0mm×22.5mm (SB3017-Ex)

Power Supply

Supply voltage:(20~35)VDC

Isolation

Max allowed voltage Um: 250VAC/DC
