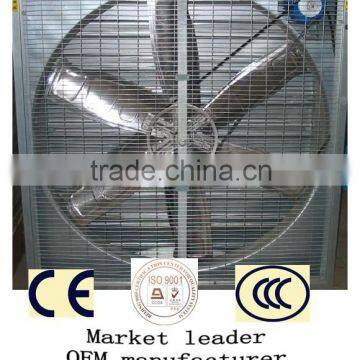

temperature controlled exhaust fan
- Shanghai Port
You May Like
-
yaoshun stainless steel kitchen fireplace high temperature exhaust fan
-
yaoshun energy-saving wall mounted chicken centrifugal exhaust fan
-
yaoshun environmental- friendly negative pressure exhaust fan
-
yaoshun all products exhaust fan cooling pad
-
all exhaust fan for cooling the temperature reducing the hot air
-
all exhaust fans for cooling the temperature for factory/greenhouse/farm
Product Details
| Place of Origin | Jiangsu, China | Brand Name | YAOSHUN | |
| Model Number | YS-1000,YS-1250,YS-1400 |
Product Description
Brief introduction:
1)Special push-pull shutter mechanism can open and close shutter automatically.
2)Stainless steel blade uses a stamping molding process,possessing beautiful,durable,
high-precision balance testing revision characteristics , avoiding being deformed and
cracked, working smoothly,reducing the noise and effectively improving the service life.
3)Unique concave handling design of exhaust fan not only helps avoid inconvenience
occurred in the transport,but also keep favorable installation and beautiful exterior.
4)V-belt pulley is made of high-strength and light-weight aluminum magnesium alloy,
formed by heat press processing.
5)A-belt or B-belt,can be customized according to the sales condition of agents
to meet different customers’ needs.
6)Equipped with efficient and energy-saving motor with CCC certification.
Protection level:IP55.Insulation level:F.
7)Guide rod-embedded steel is installed on the impeller,enhancing the reliability,
and effectively avoid shift during the process of nylon production.
| Wind collector:Made in 1.0mm with no galvanized sheet. Can produce type #910 and 270, also can be customized according to uses’ needs. |
| Protecting wire net:Made by hard-drawn wires of different diameters(also can use required materials according to users). Surface processing uses electrostatic powder painting or galvanization. The surface color can be made according to customers’ request. |
| Fan blade:Professional designed blade angle. Air volume keeps consistent in the fan using process through dynamic balance test.
|
| Iron base for the blade: One-step forming process, strong and reliable, ensure the service life. |
| Unique concave handling design of exhaust fan not only helps avoid inconvenience occurred in the transport,but also keep favorable installation and beautiful exterior. |
| Push-pull aluminum wheel: Made of high strength aluminum and magnesium alloy by press casting mold. light material and high intensity. |
| Push-pull institution:high strength,high toughness nylon. |
parameter:
Model specifications | YS-910 | YS-1270 |
Diameter of blade(mm) | 910 | 1270 |
Frequency(Hz) | 50 | 50 |
Motor rotational speed(rpm) | ≥1400 | ≥1400 |
Air flow(m³/h) | 23500 | 48000 |
Import power(W) | 750 | 1100 |
Noise(decibel) | ≤64 | ≤64 |
Rated voltage(V) | 380 | 380 |
Height(mm) | 1000 | 1380 |
Width(mm) | 1000 | 1380 |
Thickness(mm) | 450 | 450 |
Jiangyin Shuncheng airtreatment equipment co.,ltd was established in 2004 .Our core competencies is evaporative cooling pad and exhaust fan and our markets are all over the world. (WITH US YOUR MONEY IN SAFE YOUR BUSINESS IN SAFE).
Hope fully to be your honest dealer and trustworthy supplier in China.
Q:How long will cooling pads last before I should change them?
A:The service time of Evaporative Cooling Pads is greatly depend on how often and how long each day the cooler is
usedas well as the quality of supplied water. The more often the cooler is in use the shorter the life span would be.
The quality of the supply water also has a great effect on life span. This is because with “hard” water there is a larger amount of solids left behind during the evaporation process and these will eventually restrict the airflow through the flute
In good conditions with normal use Evaporative Cooling Pads usually last 5-6 years, but in areas with poor
water quality and where the coolers are used extensively the pads will need be changed far more frequently.
Q: What voltages you can do for exhaust fan , if you can make special voltages ?
A: Normal standard is 380V for 3 phase, 220V for singple.
The voltage and herz can be customized as your requirement.For example,400V,240V,60Hz.
Q: What is the MOQ , can I order a sample for test?
A: MOQ is 25 cubic meter for cooling pad and 28 sets for exhaust fan, it's of convienence to arrange products.
If you need sample for test ,then order large quantity,we can offer you the sample.
Q: Are you real manufacturer or ..?
A:Yes, we are 100% original manufactuer .Our factory located at Jiang yin city,Jiangsu province.Welcome to visit our factory.
Q: How can I pay?
A: We accept T/T(Telegraphic transfer) .
30% deposit is needed for TT payment.Balance against the copy of B/L(bill of lading).
