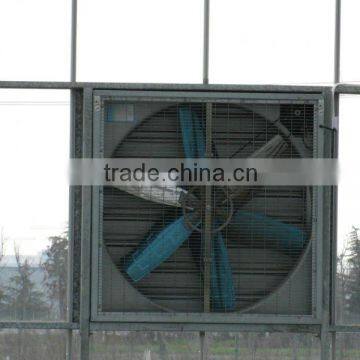

YAOSHUN Ventilation fans

FOB Price

US$ 175 - 220 / Set

10 Sets(Min. Order)

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

1)high overall pressure
2)large blowing rate
3)low noise
4)lowe power consumption
5)stable operation

Specification		YS-1000	YS-1250	YS-1400
Fan Blades		six fan blades
Fan Diameter		1000 mm	1250 mm	1400 mm
Fan RPM		600 r/min	439 r/min	439 r/min
Fan Blades Material		Stainless steel
Air flow (m³/h)		35000 m³/h	44000 m³/h	55800 m³/h
Total Pressure		70 pa	56 pa	60 pa
Motor Type		Three-phase motor, B3
Motor RPM		1400 r/min	1400 r/min	1400 r/min
Motor Frequency		50/60Hz	50/60Hz	50/60Hz
Insulating Grade		F	F	F
Protection Grade		IP55	IP55	IP55
Noise (db)		≤70	≤70	≤70
Power (kw)		0.75 kw	1.1 kw	1.5 kw
Voltage (v)		380	380	380
Outer Size (mm)		11001100400	13801380400	15361536400
Frame Material		1.0mm galvanized sheet
Weight (kg)		56 kgs	78 kgs	93 kgs
Weight without Motor		36 kgs	56 kgs	70 kgs
Shutters Material		galvanized sheet	galvanized sheet	galvanized sheet
Protective Net Material		galvanized wire	galvanized wire	galvanized wire
MOQ (set)		20sets	20sets	20sets
Unit Price (usd/set)		$188/set	$215/set	$238/set
Price Terms		FOB Shanghai

Terms of Payment		By T/T
Package		Packed in stretch film
Port of Loading		Shanghai, China
20 Container 20	Assembled	52 sets	28 sets	20 sets
	Unassembled	158 sets	130 sets	128 sets
Time of Delivery		Within 10 days after receiving the deposit.

Service		OEM service is available
Certification		CE
Safety Standards		EN60204-1
