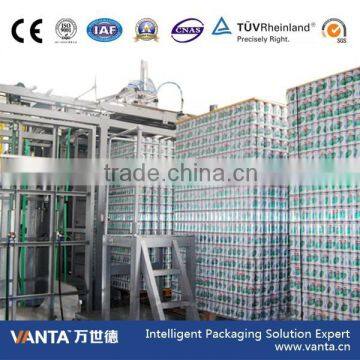

Highly Automatic Empty Bottle Depalletizer (XPD500)

1.   Description:
Automatic Empty Bottle Depalletizer is designed to transfer the bottles (Glass bottle, PET bottle) from the full pallet to the bottle conveyors in order to make sure the whole line production. It include: feed platform, unpack, bottom platform, empty pallet platform, lifting mechanism, bottle output platform, clapboard discharge mechanism and so on. Empty bottles pallets operate automatically with a frequency inverter, assuring smooth motion without damaging on empty bottles.

2.   Equipment datasheet


3. Working principle:
3.1 Firstly the whole pallet bottles will be unloaded on the pallet chain conveyor by forklift, sent and stopped at unbinding platform.
3.2 The operator will unbind the bandage and film on the pallet, in the end the pallet after unbinding will be sent underneath lifting well conveyor.
The lifting device of main machine will lift the pallet to a height that pallet probe can reach.
3.3 Then the sucker frame sucks the chipboard on the pallet and send it to the chipboard conveying device beside the main machine and collected at chipboard collecting frame.
3.4 Meanwhile, the bottle gripper clamps one layer of bottles and moves forward to bottle discharge conveyor. Then the bottle gripper looses and discharge the bottles on the conveyor. Discharged bottles will move forward by bottle conveyor.
3.5 After one layer of bottles discharged, lifting device of main machine goes up one layer according to pallet probe height, then discharging for next layer till whole pallet bottle finished.
When whole pallet bottles unloaded, lifting device lowers the empty pallet on the pallet conveyor, the door of baffle plate opens, then conveying to the empty pallet stacker.
3.6 At the same time, the pallet conveyor underneath lifting well is waiting for next pallet bottles from unbinding platform.
3.7 The pallet stacker collects empty pallets, they will be moved away by the forklift after reaching a certain numbers.
3.8 The above process completes entire pallet bottles unloading, chipboard collecting and moving and empty pallets stacking and moving.

4. Working environment
4.1 Temperature:Min.+10 º C -Max.+45 º C,Fluctuations in daily working ±3 º C
4.2  Humidity:Max.90%.
4.3 Set according to attitude of 1000 meters
4.4 If the above conditions cannot meet or exceed the size specified in the contract, the customer shall immediately notify the VANTA sales department in order to make the appropriate adjustments to ensure the normal operation of the machine. If the customer fails to notify the sales department. Any caused machine problems, will be customer's responsibility.

5. Competitive Advantage:
5.1 Grip and place in a whole line or whole layer.
5.2 The safety device can stop machine and alarm automatically in any emergency.
5.3 Simple configuration and easy maintenance.
5.4 High automation and intelligence.
5.5 Assuring smooth motion without damaging on empty bottles.

6. Applied Products:
