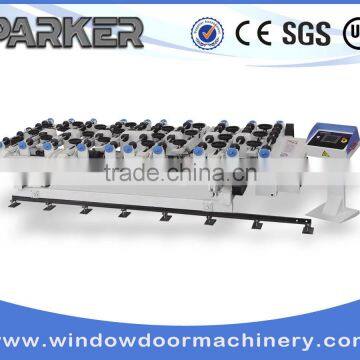

Automatic glass loading machine AGC
- Qingdao
- T/T L/C D/P D/A Credit Card PayPal
You May Like
-
Rectilinear glass cutting machine RGC
-
Butyl coating machine BC-10 PARKER
-
Aluminum spacer bending machine SBM
-
Elevator and automatic molecular sleve filling machine EMSF-S
-
Vertical Automatic Flat Process Insulating Glass produce line IGV25-S
-
Global supplier of insulating glass processing equipments IGV27W-S
Product Details
| Condition | New | Machine Type | Glass Loading Machine | |
| Place of Origin | Shandong, China | Brand Name | PARKER | |
| Model Number | AGC | Voltage | 380V 50HZ | |
| Power(W) | 9KW | Dimension(L*W*H) | 3900 x 2500 x 900 mm | |
| Weight | 900kg | Certification | CE | |
| Warranty | 1 Year | After-sales Service Provided | Engineers available to service machinery overseas |
Product Description
Automatic glass carrying machine or automatic glass loading machine is mainly used for loading glass automatically from rack, which stands vertically, to the horizontal position. Then, the glass can be transferred on horizontal position by either cutting table or another conveyor. The automatic glass loader can know the position of the glass sheet automatically and transfer the sheet to the cutting-position by roller. Driven by X and Y axis motors, the automatic glass loading machine can adjust zero position automatically to examine glass position of two stations single loading or four stations double loading.
Main feature:
1. The loading arm angle can be adjustable.
2. All axes of the automatic glass loading machine are of high accuracy.
3. The PLC program is suitable for a number of maximum loading stations
4. The vacuum pads of this automatic glass loader can be adjusted according to the glass height.
5. The air pressure is controlled by pressure sensors. Leakage is controlled by vacuum sensors.
6. Parker automatic glass loading machine is equipped with special glass separation mechanism for loading from rack.
7. The vacuum pump and directional valves are used for glass separation process.
8. This automatic glass loader also possesses sensitive glass tilting system in order to prevent glass breaking.
Model | (AGC) Automatic Glass Carrying Machine |
Voltage | 380V or 220 V 50 Hz |
Power | 9 kW |
Air Pressure | 0.5 to 0.8 Mpa |
Vacuum Pressure | -70 to 90 Kpa |
Loading Sheet Size | Min. Size: 1500 mm × 1500 mm |
Loading Thickness | 2 mm to 19 mm |
The Fastest Loading Cycle | 30 s to 60 s |
Transfer Speed | 0 to 40 m/min |
Max. Suction Depth | 750 mm |
Max. Loading Weight | 900 kg |
Unilateral Upper Arm Volume | Four Arms |
The Number of Single Arm Suckers | Three |
Turning Arm | Double |
Loading Position | Multi-position |
X Axis Normal Moving Speed | 25 m/min |
Y Axis Normal Moving Speed | 5 m/min |
Table Height of Automatic Glass Loader | 900 ± 50 mm |
Founded in 2003, Parker Machinery Co., Ltd has developed an assembly line for door, window, curtain wall and insulating glass equipment. With over ten years' production experience, Parker has become a leading manufacturer of window door machinery in China. The operation of high precision, advancement and specialty ensure that we are able to supply high-quality window and door equipment for customers.
During the past few years, Parker has made great progress and has become well known and outstanding in domestic fairs for window door machinery. With advanced technological equipment, tremendous technical strength and reliable product quality, our window and door equipment has been well received by customers from Russian, Kazakhstan, Vietnam, Iran, etc. We have a perfect sales network and complete service system in China. We are also taking a leading role in setting branch companies abroad.
1.Sample service:
Engineer available overseas
2. Customized service:
Free industrial information, free investment analysis for windows, doors, and curtain wall project, free layout design for window, and door and curtain wall product line.
3.After sales service:
One year guarantee
Free adjustment
Free training to operation and maintenance workers
Provide quick supply of spare parts for window and curtain wall companies.
1. Q: Are you a factory or trading company?
A: We are a factory.
2. Q: Where is your factory located? Can I visit there?
Our factory is located in Jinan City, Shandong Province, China, near to Jinan and Qingdao. You are warmly welcomed to visit us!
3. Q: How does your factory do regarding quality control?
We have strict control in testing of raw material, production process and final process. Only qualified products can be sent out.And we have passed ISO,CE certificate.
4.Q:What you can do if my machines have problems?
a.We can send you free components to you if your machines are in guarantee time.
b.We can send our engineers to repair your machines
5. Q: If OEM available?
Answer: Yes, as we usually do.
6. Q: What are your company normal payment Terms?
Answer: We accept T/T (30% T/T prepaid before production, 70% T/T prepaid before shipment)
