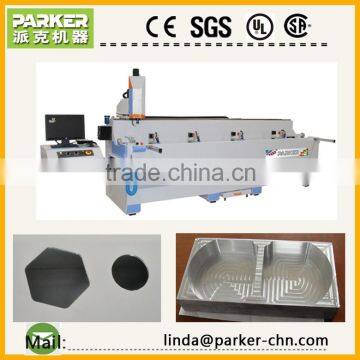

4 axis parker cnc machine center

Features:

It is used for window-door, curtain wall, aluminum profile, rail transportation, refrigeration components, bathroom hardware, ship building and ship repair, aluminum bronze accessories, industrial aluminum, nonferrous metal and light section steel structure and other processing for drilling, milling and other list of processing.

Three axis, can process one surface of the profile one time, and you need to turn the profile manually.

The full set is servo motor control system, and use OMRON brand, technique can make sure quality. Equipped with professional CAM Processing software and intuitive programming system enables easy visualization of complex processing.

Designed the moving work table for material, and moving box.

The list of processing about drilling, milling, tapping into one clamping.

The body is welding by steel tube with high quality and be processed by scratch push, so it is stability and strong steel.

Ball screw from ABBA, HIWIN from Taiwan, UUC rack from Taiwan keep high precision.

Using large-capacity tool magazine turret from Taiwan enhanced the efficiency of automatic tool changing. The max diameter is 16mm, the min diameter is 4mm, it could process the profile of 20mm.

Double location design, the machine goes on working when feeding profiles interactively, which makes the equipment improve efficiency greatly.

Power of continuing function, the machine can go on processing when the power is get through. Linked speed(processing, interpolation) can get to 1000mm/min

It is equipped with lock tool apron, which makes it convenient to change the cutters.

All the components adopt batch-type feed system, central lubrication; the cutters adopt freezing spray system to cooling, which can improve the life and working depth of work piece.

The cutters adopt Accue-Lube which is semi-open type cooling system in America. This is EHS.

Use plant oil to spray, lubricate once half on hour.

There is safe photo electricity protection screen in the front of the machine, equipped with the location of machine head detection, the location of operators detection to insure the safe of operators.

Packaging & Shipping

  Plastic package,Wooden pallet or as required.

Founded in 2003, Parker Machinery Co., Ltd has developed an assembly line for door, window, curtain wall and insulating glass equipment. With over ten years' production experience, Parker has become a leading manufacturer of window door machinery in China. The operation of high precision, advancement and specialty ensure that we are able to supply high-quality window and door equipment for customers.

During the past few years, Parker has made great progress and has become well known and outstanding in domestic fairs for window door machinery. With advanced technological equipment, tremendous technical strength and reliable product quality, our window and door equipment has been well received by customers from Russian, Kazakhstan, Vietnam, Iran, etc. We have a perfect sales network and complete service system in China. We are also taking a leading role in setting branch companies abroad.
