Jinan PARKER Aluminium Window Door Profile Double Cutting Machine LJZ2-450*3700
- QingDao port
- T/T Credit Card
You May Like
-
Aluminum Profile Cnc Double Head Cutting Machine
-
Tri-Axis Arbitrary Angle Cutting Saw With CNC
-
Aluminum Multi-Function Single Head Saw
-
Aliminum Single Head Cutting Saw Machines
-
Aluminum Windows Manufacturing Machine Tools Window Door Manufacturing
-
HOT!!!-Aluinium Profile Frame CNC Control Double Miter Saw Cutting Machine for Window and Door-Parker
Product Details
| Brand Name | PARKER | Model Number | LJZ2-450*3700 |
Product Description

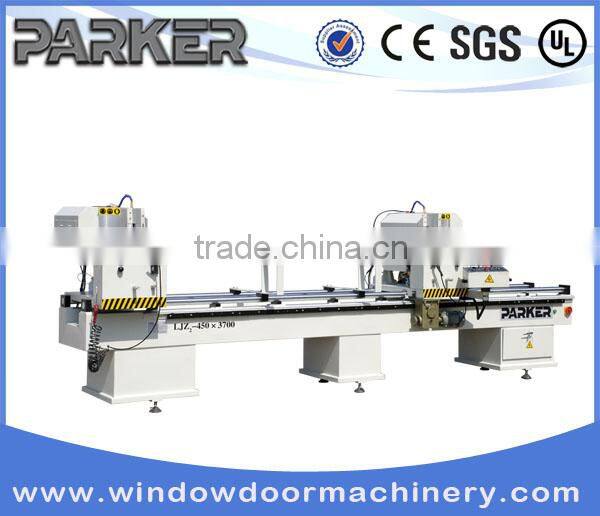

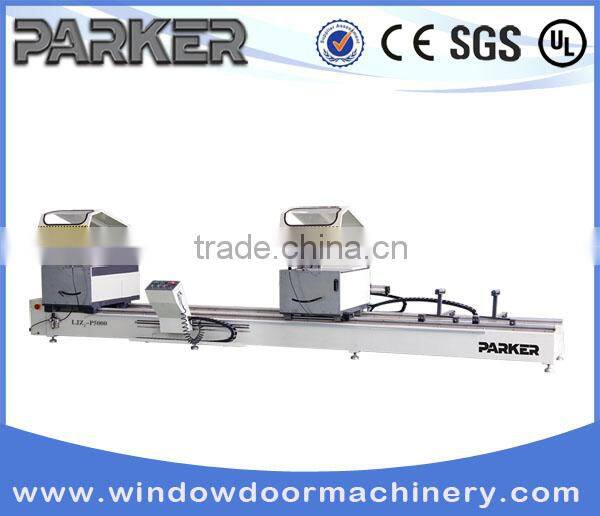

Aluminium Profile Double Mitre Saw
Feature:
1、Imported carbide saw blade give accurate processing and high endurance.
2、Saw blade rotate smoothly due to high accuracy main spindle.
3、Uniform speed feeding and smooth motion due to airdraulic damping cylinder.
4、Used for cutting aluminum at -45°,90°and 45°
5、One time processing can cut off the required length.
6、The safety devices designed specially clamp the devices when power is cut off suddenly. So the safety of operator is assured.
Parameter:
Repeating fixed length precision：≤0.2mm
Cutting angle allowance：±5′
Cutting plane：≤0.1mm
Cutting harshness：Ra12.5 µ m
Power supply：380V 50Hz (Three phase, four wire)
Motor /Trailor motor supply：1.5KW×2 /0.55kw
Speed：2800rpm
Saw blade dimension：Φ450 x 4 x Φ30mm, Z=120mm
Air pressure：0.4—0.6Mpa
Air consumption：200L/min
Cutting angle：-45°, 90° and 45°
Cutting length：Max. 3,700mm, min. 400mm
Cutting width：Max120mm
Cutting height:Max 200mm
Overall dimension：4700 x 1600 x 1600mm
Weight：1500kg

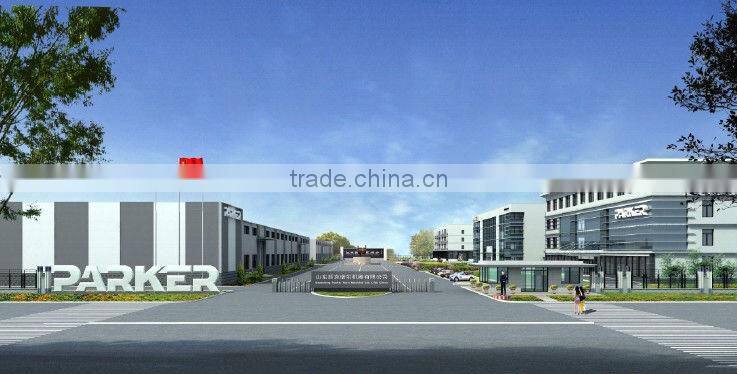

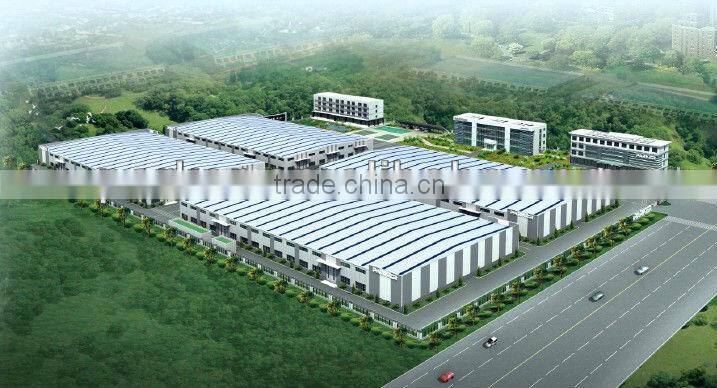

Founded in 2003, Parker Machinery Co., Ltd has developed an assembly line for door, window, curtain wall and insulating glass equipment. With over ten years' production experience, Parker has become a leading manufacturer of window door machinery in China. The operation of high precision, advancement and specialty ensure that we are able to supply high-quality window and door equipment for customers.
During the past few years, Parker has made great progress and has become well known and outstanding in domestic fairs for window door machinery. With advanced technological equipment, tremendous technical strength and reliable product quality, our window and door equipment has been well received by customers from Russian, Kazakhstan, Vietnam, Iran, etc. We have a perfect sales network and complete service system in China. We are also taking a leading role in setting branch companies abroad.
