Product Details
| Brand Name | Zhengzhou Great Wall | Model Number | SY-X2-5L | |
| Place of Origin | Henan, China |
Product Description

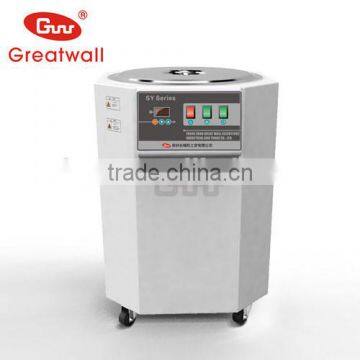

5L Circulating Oil Bath with 5L Jacketed Reactors
Brief Introduction of 5L Circulating Oil Bath SY-X2-5L :
rovide heat source for all kinds of devices need to be heated. Can be used alone and also can be used with Rotary Evaporators and Reaction Kettles. There are water bath, oil bath, circulating water bath, circulating oil bath, air cooling circulating water bath, air cooling circulating oil bath and other types which can be chosen according to the needs.
Features of 5L Circulating Oil Bath SY-X2-5L :
1. Containers are made of good quality stainless steel and can resist corrosion.
2. Control temperature by digital display, controlled by PID, with high precision of temperature control and easy to operate .
3. Vertical structure, be furnished with truckles, which is convenient for moving.
4. High performance circulating pumps of circulating water bath and circulating oil bath can provide output loops and provide homoiothermic heat source for reaction kettles.
5. Air cooling circulating water bath and air cooling circulating oil bath can achieve fast cooling through air-blast cooling.
Parameters of 5L Circulating Oil Bath SY-X2-5L :
Type | 5L | 10L | 20L | 30L | 50L | 100L |
Bath volume(L) | 5 | 10 | 20 | 30 | 50 | 100 |
Heating Power (W) | 1500 | 2000 | 3000 | 4500 | 6000 | 9000 |
Temperature stability (°C) | ±2 | |||||
Pump Power(W) | 280 | |||||
Flow(L/min) | 30 | |||||
Lift(m) | 10~12 | |||||
Temperature range(°C) | room temp~200 | |||||
Power supply(V/Hz) | 220/50 | 380/50 | ||||
Recommended Total System:
Water Circulating Vacuum Pump SHB-B95A + 5L Jacketed Glass Reactor GR-5L + 5L Circulating Oil Bath SY-X2-5L

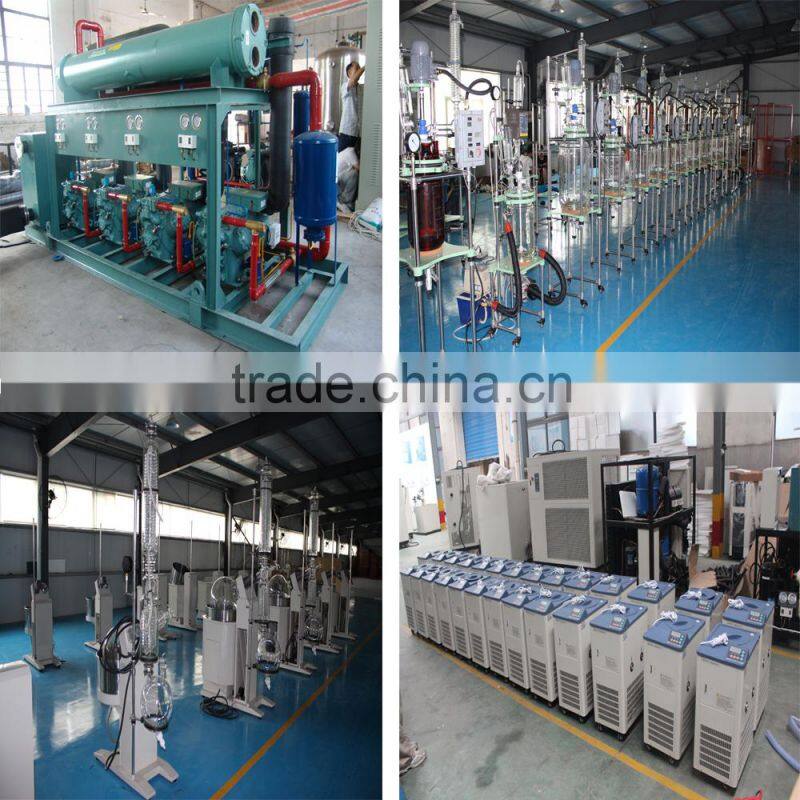

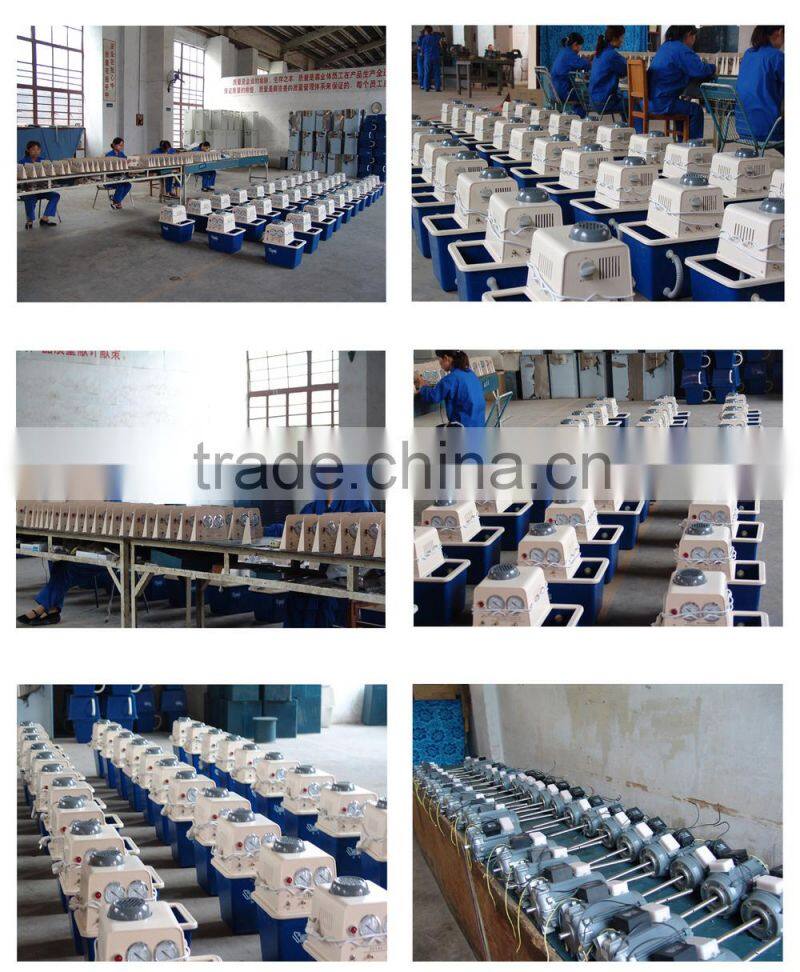

Workshop:
