Vertical Type Condenser Mini Rotary Evaporator R-1001VN
- Tianjin Shanghai Qingdao etc.
- Credit Card
You May Like
-
Industrial Rotary R1001 VN Water Refrigerating Rotary Evaporator
-
2L Double Sealing Lab Rotary Evaporator With DL-400 Refrigeration Capacity Coolers
-
DLSB-1000 Cooling-water Circulating Pump (instrument)
-
250Celsius High Temperature Circulating Oil Bath SY-50-250
-
Circulating Water/oil Bath SY Series
-
5L Circulating Oil Bath With 5L Jacketed Reactors
Product Details
| Condition | New | Application | Distillation | |
| Power Source | Electric | Process | Vacuum Distillation | |
| Place of Origin | Henan, China | Brand Name | Zhengzhou Greatwall | |
| Model Number | R-1001VN | Voltage | 1PH 110V/60Hz, 1PH 220V/50,60Hz | |
| Power(W) | 1050W | Dimension(L*W*H) | 66*54*47CM | |
| Weight | 16KG | Certification | ISO 9001:2008 | |
| Warranty | 12 Months | After-sales Service Provided | Overseas third-party support available |
Product Description

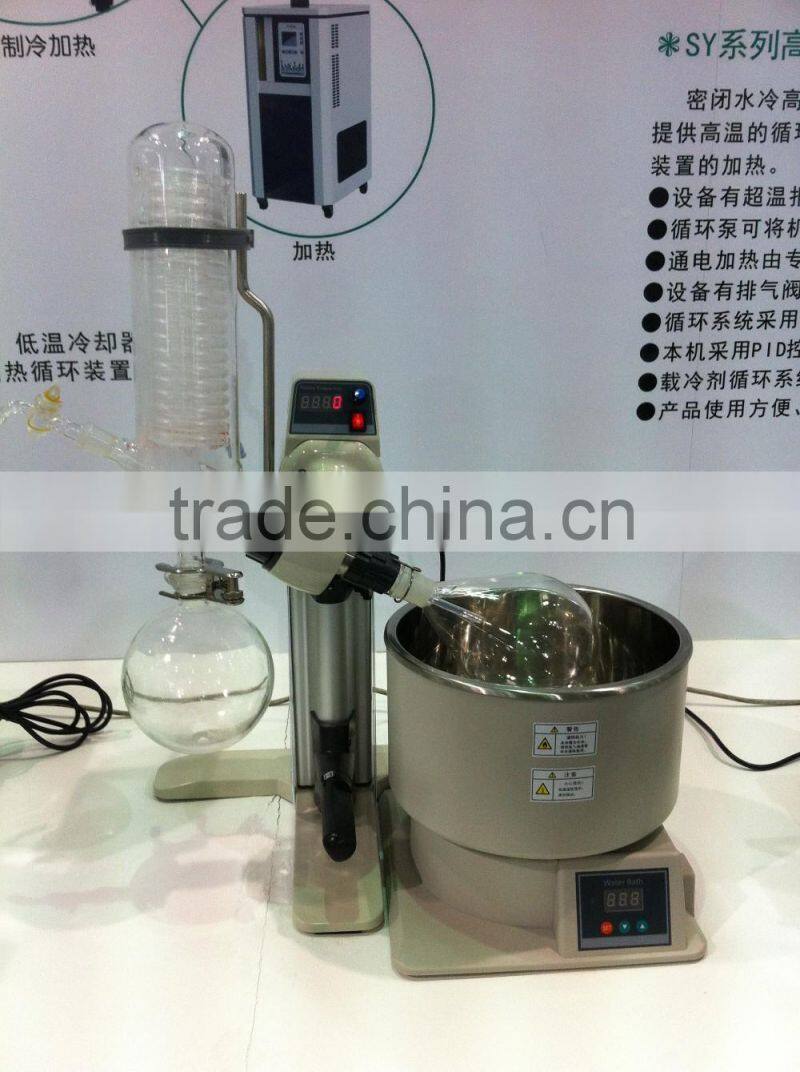

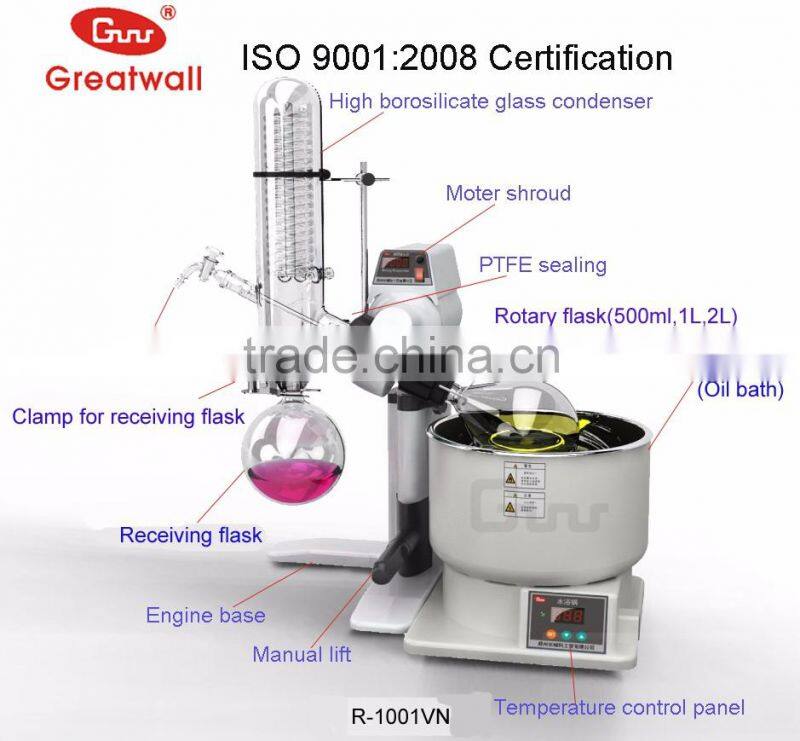

Mini Rotary Evaporator 500ml 1L 2L R-1001VN
Specifications:
- PTFE and fluorous rubber double sealing.
- Hand lift to adjust the ascending or descending of Water/ Oil bath
- Digital display of temperature and rotation speed, PID control of temperature.
- Easy assembling design..
- High quality borosilicate glass 3.3 with excellent physical and chemical properties for glass parts and SUS 304 stainless steel frame.
- Water/Oil bath and main machine seperately.
- Vertical / inclined condenser optional.
- 500ml 1L 2L rotary flask optional, 1L 2L receiving flask optional.
- Volume: 500ml 1L 2L 5L 10L 20L 50L, explosion-proof type optional.
Description:
Rotary evaporator is a device used in chemical laboratories for the efficient and general removal of solvents from samples by evaporation. It is mainly used for pharmaceutical, chemical and bio-pharmaceutical industry concentration, crystallization, drying, separation and dissolution of coal recovery. Distillation of solvent,Soxhlet extraction,Powder and grannules drying,Recycling of solvent,Synthesis and purifying of fine chimicals.
Technical specifications:
Model | R-1001VN | R-1001LN |
Rotary speed(Rpm) | 10~180 | |
Evaporating speed(ml/min) | 20 | |
Achievable vacuum(Pa) | 399.9 (below 3mmHg) | |
Temperature range(℃) | Room temp~100(Stainless steel water bath) Room temp~180(Oil bath) | |
Temperature display | Keypad input Digital display | |
Speed-setting | Knob setting ,Digital display | |
Safety functions | Fuse | |
Functions of lifting table | Weight balancing Gliding elevating+ manual lifting | |
Rotary motor(W) | 25 | |
Heater wattage(KW) | 1.05 | |
Condenser model | Vertical type water refrigerating | Inclined type water refrigerating |
Rotary bottle(L) | 0.5~2 | |
Collecting bottle(L) | 1 | |
Vacuum sealing | Double sealing rings made of Teflon+ Viton materials | |
Water Bath size and volume(L) | φ260×140·7.4(Water bath) φ250×130·7(Oil bath) | |
Elevating stroke(mm) | 100+150 | 100+150 |
Ambient temperature(℃) | 5~35 | |
Packing Dimensions (cm) | 66*54*47 | |
Packing Weight(kg) | 16 | |
Power Supply(V/Hz) | 1~110V,60Hz, 220V/50Hz,60Hz | |
Total system:

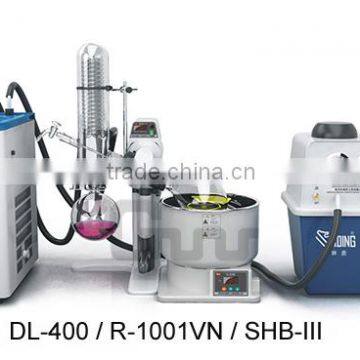

Recirculating chiller(DL-400) / R-1001VN / Vacuum pump(SHB-III)
Recirculating chiller(DL-400) / R-1001VN / Diaphragm vacuum pump(MP-201)

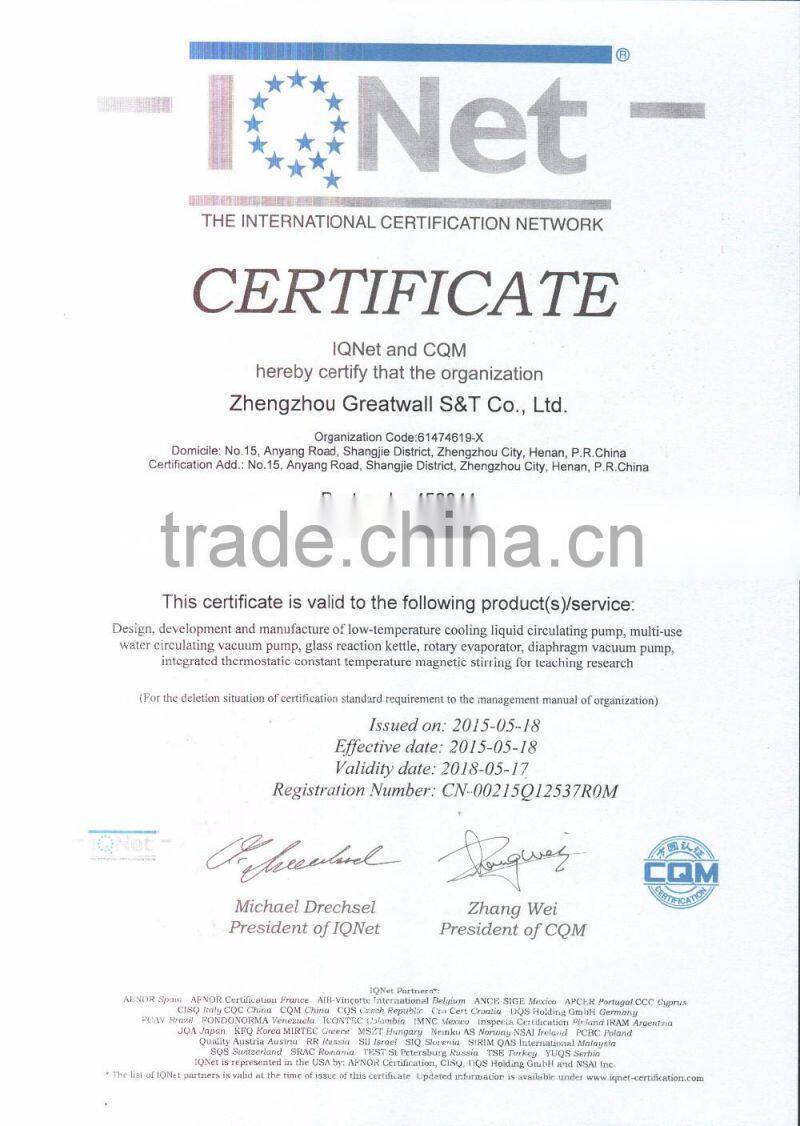

Certificate:
Zhengzhou Greatwall Scientific Industrial and Trade Co., Ltd. was established in 1988. We have passed ISO9001:2008 Certificate.
Main products: (Explosion-proof) Rotary Evaporator, (Explosion-proof) Glass reactor, (Diaphragm) Vacuum pump, Recirculating chiller, High / Low / Constant temperature circulator, Magnetic stirrer, etc.

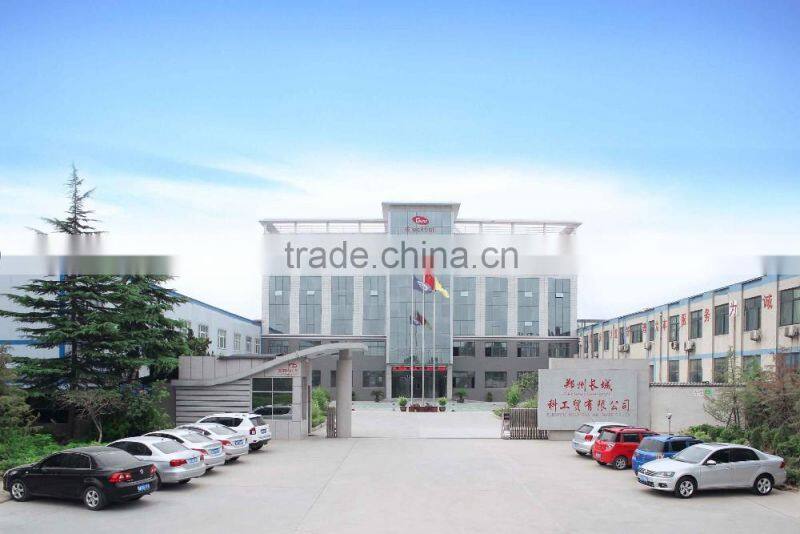

Office block:

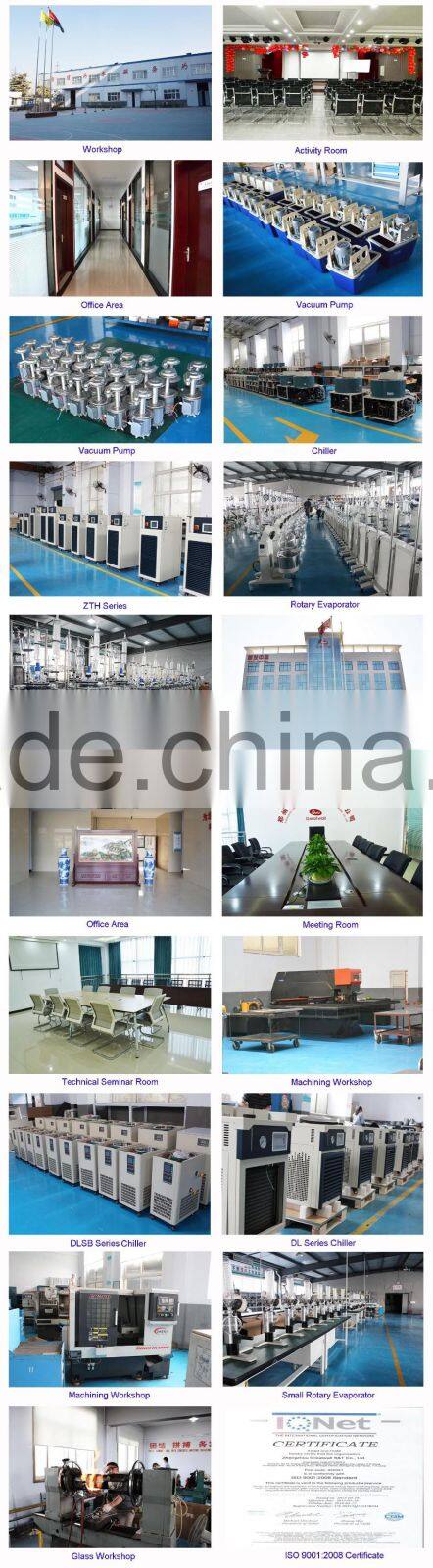

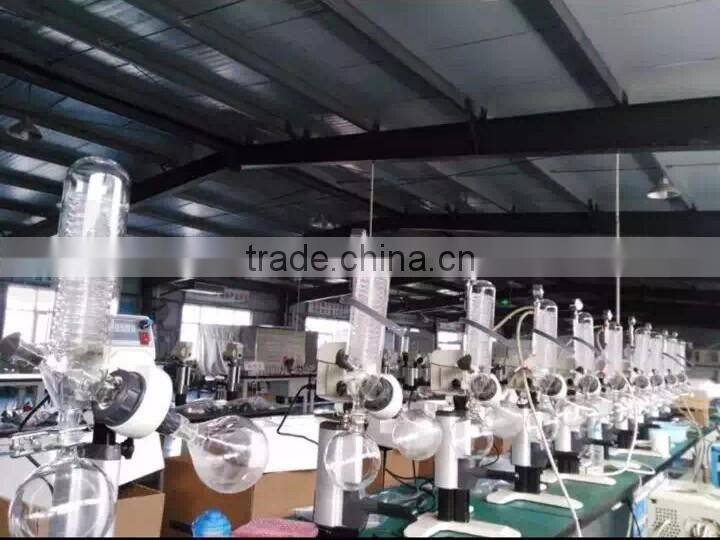

Workshop:

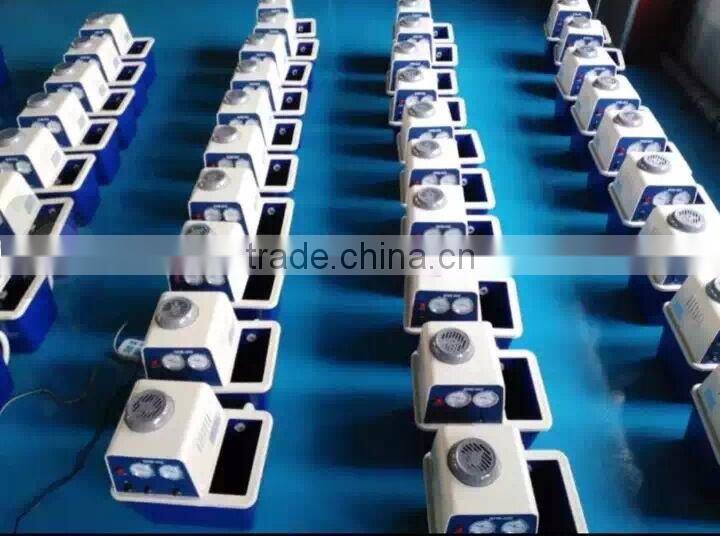

Packing:
Exhibition:
Contact information:
Current exclusive agents:
