Laboratory equipment DLSB-ZC low temperature vacuum pump (patent product)
- 200 Set / Sets per Month
- Shanghai
- T/T Credit Card
You May Like
-
DLSB -FZ Low Temperature Vacuum Pump (Patent product )
-
Industrial Chiller Low Temperature Vacuum Pump (Patent product )
-
Supply Excellent -80 degree CT-2000L Cold trap
-
Great DLSB-ZC Low Temperature Vacuum Pump (Patent Product)
-
Best selling DLSB-FZ Low Temperature Vacuum Pump (Patent Product)
-
Latest products DLSB-G1010 Low temperature cycling high pressure pump
Product Details
| Brand Name | Zhengzhou Greatwall | Model Number | DLSB-ZC | |
| Place of Origin | Henan, China |
Product Description
Specifications
low temperature vacuum pump1.our company has independent intellectual property right
2.centralize vacuum and refrigeration
Laboratory equipment DLSB-ZC low temperature vacuum pump (patent product)
I. Range of application:
Our company has independent intellectual property right.
Development is based on Cooling Water Circulating Pump and Circulating Water Vacuum Pump. Use with Rotatory Evaporator to form a complete set. Suitable for low-temperature coagulation, shorten distillation time and improve the recovery.
II. Characteristics of uses:
♥ Centralize vacuum and refrigeration,unify features of Cooling Liquid Circulating Pump and Vacuum Pump. It can draw vacuum and cool the circulating evaporator simultaneously.
♥ Self cooling function can ensure the water temperature in the vacuum pump around 4°C, to guarantee the best vacuum degree.
♦ The vacuum is stable. Have three taps and can evacuate vacuum at the same time, three vacuum gauges display, visual observation. Cooling tube adopts stainless steel, corrosion proof, and can provide cooling source for external parts.
III. Technical data:
Model | DLSB-ZC | |
Temperature range(°C) | -10~Room temp | |
Cooling capacity(W) | 600~2550 | |
Bath volume(L) | 20 | |
Temperature stability(°C) | ±2 | |
Function of circulating pump | Power (W) | 280 |
Lift(m) | 10 | |
Flow(L/min) | 30 | |
Function of vacuum pump | Power (W) | - |
Lift(m) | - | |
Flow(L/min) | - | |
Maximun vacuum degree(MPa) | 0.098 | |
Number of Taps(A) | 3 | |
Air sucking amount(L/min) | 10 | |
Ambient temperature(°C) | 5~25 | |
Overall Power(W) | 1650 | |
Power supply(V/Hz) | 220/50 | |
Dimensions(mm) | 570L×430W×780H | |

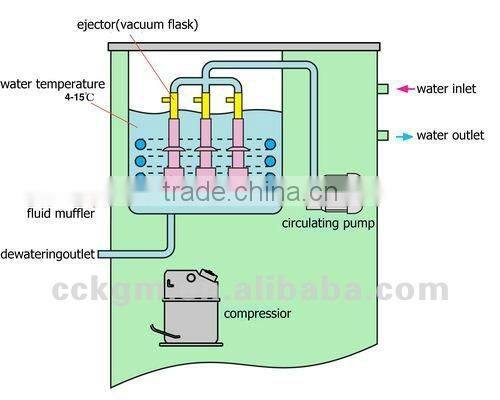

IV. Fundamental diagram:
V. Certificates:
VI. The company demonstrated:
