10L constant temperature circulating machine -30 to 99 degree

Specifications

1 Technical paramters of HX-3010 temperature controlled circulating bath:

Model                                                                                HX-3010

Temperature range(°C)                                                       -30~99

Temperature stability(°C)                                                      ±0.2

Bath volume (L)                                                                     10

Bath opening(mm)                                                         180L×140W×200H

Flow(L/min)                                                                           10

Heating Power (W)                                                               1750

Cooling capacity(W)                                                           300~1200

2 Brief introduction of the HX-3010 temperature controlled circulating bath :

The circulator can be solely used as a thermostatic bath to conduct chemical reaction experiment.

It can also be used with electrophoresis appartus, electron microprobe etc to reduce the temperature.

Provide a field source with controlled heating & cooling and uniform temperature for experiments.

Suitable for research departments like petroleum, chemical industry, metallurgy, medicine industry and biochemistry, as well as institutions of higher learning, factory laboratories and gauging and quality inspection Institution to do property measuring along with qualitative and quantitative analyses.

3 Technical parameters of HX-series temperature controlled circulating bath:

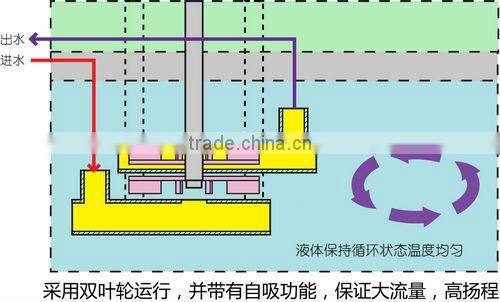

Duel wheel run ,with the function of self-absorption,the impeller are stirring,ensure the water temperature uniform.

4 Key features of the HX-3010 temperature controlled circulating bath :

♦Temperature adopts digital setting and display, easy to operate, high precision of temperature control.

♦ PID control, with stable temperature and fast speed.

♦ Cooling system adopts complete closed, air cooled type imported compressor set of famous brands from the USA and France.

♦ Circulating pump adopts bilobed wheel and has self-priming function which can guarantee high flow and high head. At present, it is the high performance circulating pump with leading technique.

♦ Uniformly dispersed flow field was formed in inner circulation of circulating liquid, which makes the heat exchange stable.

♦ Basin adopts stainless steel. (ANSI standard)
