Ultra Narrow Bezel,LCD VIDEO WALL IP46UH

FOB Price

USD $2,585 - $2,741 / Piece

5 Pieces(Min.Order)

Supply Ability 80 Carton / Cartons per Month
Port shenzhen
Payment TermsCredit Card

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Place of Origin	Guangdong, China	Brand Name	iPANEL
Model Number	IP46UH	Type	TFT
Application	Indoor	Panel Size	46 INCH
Max Resolution	1920X1080	Viewing Angle	170°
Pixel Pitch	5.3mm	Color	97%
Contrast Ratio	1000000:1	Brightness	700cd/m2
Response Time	0.001	Input Voltage	≤240W

Product Description

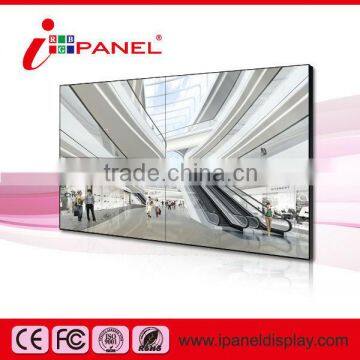

Ultra Narrow Bezel,LCD VIDEO WALL IP46UH

IP46UH is designed for large-scale combinatorial splicing display system of professional products, The special project LCD monitor of current ultra narrow edge. Engineering structure design of i-Panel module, digital network technology and strong expansibility, make product function powerful, quality excellence.

IP46UH with high contrast ration(4000:1), high reoslution(1920X1080), high brightness(700cd/m2) etc,

Static and dynamic picture can guarantee precise, delicate rendering.

Built-in splicing function, max achievable 15x15 splicing by the display built-in splicing function.,max 690 inches big picture.

i-Panel supports analog, digital video and computer signals, Supports various proportions display, the highest resolution up to 1920x1080.

i-Panel adopt special project LCD panel, high temperature resistant, Low power consumption, small heat, service life more than 60,000 hours. can continuous work for 7x24 hours.

Specification:
LCD panel	Model number	IP46UH
	Panel size	46"
	Aspect ration	16:9
	Backlight	LED backlight
	Resolution	1920x1080
	Panel type	SPVA
	Active area	*1018573mm**
	View angle	89/89/89/89
	Contrast ration	4000:1
	Brightness	700cd/m2
	Respone time	<8ms
	Display color	10Bit,1073.7M
	Pixel pitch	0.176(H) x 0.53(W)mm
	Max. resolution	1920x1080
	Compatible resolution	1920x1080;1680x1050;1600x1200;1440x1050;1360x768; 1280x1024;1280x768; 1024x768;832x624;800x600;720x400; 600x480;
Basic spec	input interface	1xVGA
		1xDVI
		1xHDMI
		2xVideo/Audio
		1xRJ45(be used in RS23S IN)
		1x Professional debugging
	Output interface	2xRJ45(be used in RS232 OUT)
	Power supply	AC Input 100~240V(+/-10%)/50-60Hz
	Power	≤240W
	Standby power	≤2W
	Operation mode	key control, infrared control, remote control
	Bus control	I2C
	Video format	PAL. NTSC
	Work temperature	00C~500C
	Work humidity	10%~90%
	Storage temperature	-200C~600C
	Storage humidity	0%~90%
	Safety rules
	Quality standard	ISO9001
	Environmental standards	All components and packaging materials in compliance with international environmental standards
	Technical parameters
	OSD menu language	Multi–language
	Horizontal refresh rate	20 ~ 82KHz (Analog & Digital)
	Vertical refresh rate:	55~75Hz
	Compatible video	480i;480p;576i;576p;720p(50 and 60HZ);1080i(50 and 60HZ);1080p(50 and 60HZ)
	Wall hole	*580300mm**
	Casing	Metal
	Color	Black
	Size	*1023.68578.27127.4mm*
Feature	Intelligent cooling system	Environmental protection mute cooling fan, Energy saving, Reduce the noise, Reduce the temperature, Improve products reliability
	Low energy consumption backlight system	Energy saving, reduce LCD panel heat, Improve the reliability of LCD monitor, Effectively solve eye fatigue, Convenient for long-term monitoring.
	System control way	Chinese/English switching, contrast ration, brightness, definition, color saturation, tone, Signal switching, Source view, Color temperature adjustment, Operation state display.
