Product Details

Place of Origin	Guangdong, China	Brand Name	iPANEL
Model Number	IP46UV	Type	TFT
Application	Indoor	Panel Size	46 INCH
Max Resolution	1920x1080	Viewing Angle	89/89/89/89
Pixel Pitch	0.7455mm	Color	97%
Contrast Ratio	'4000:1	Brightness	450cd/m2, 450cd/m2
Response Time	8ms

Product Description

exhibition lcd video wall, wall mount projector screen

IP46UV is designed for large-scale combinatorial splicing display system of narrow bezel lcd video wall , The special project LCD monitor of current ultra narrow edge. Engineering structure design of i-Panel module, digital network technology and strong expansibility, make product function powerful, quality excellence.

IP46UV narrow bezel lcd video wall with high contrast ration(4000:1), high reoslution(1920x1080), high brightness(450cd/m2) etc, Static and dynamic picture can guarantee precise, delicate rendering.

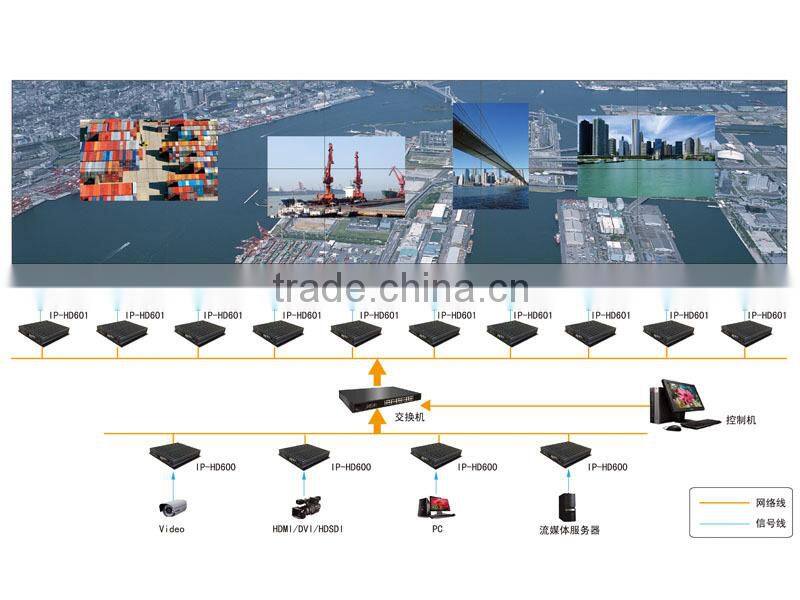

Built-in splicing function, max achievable 15x15 splicing by the display built-in splicing function.,max 690 inches big picture.

i-Panel supports analog, digital video and computer signals, Supports various proportions display, the highest resolution up to 1920x1080.

i-Panel adopt special project LCD panel, high temperature resistant, Low power consumption, small heat, service life more than 60,000 hours. can continuous work for 7x24 hours.

Specification:
spec	Model number	IP46UV
	Panel size	46"
	Resolution	1366x768
	Panel type	SPVA
	Active area	*1018573mm**
	View angle	178/178/178/178
	Contrast ration	4000:1
	Brightness	450cd/m2
	Respone time	8ms
	Display color	16.7M
	Pixel pitch	0.7455mm
	Max. resolution	1920x1080
	Compatible resolution	*640480,800600,1024768,1280720,12801024,1366768,19201080,16001200*
	Horizontal scan frequency	31.5-91.1kHZ
	Vertical scanning frequency	50-85 kHZ

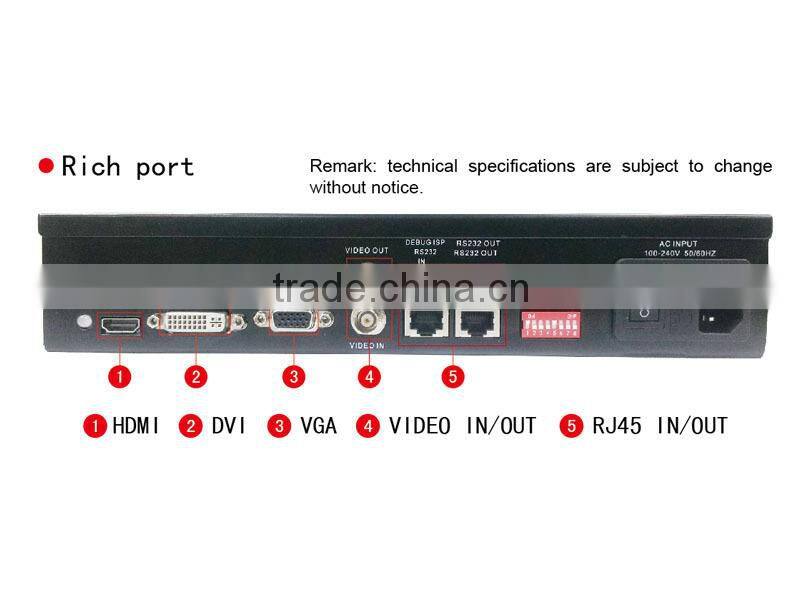

	PC signal input	DVI,VGA,BNC
	Video input	BNC
	Language	Multi-Language
	Delay Boot	Support
	Frame image adjustment	support
	System fault detection	support
	Image size adjustment	support
	Manual resolution settings	support
	Expansion function	built-in hardware splicing module
	Power	200W
	Power management	VESA DPMS
	Environment temperature(boot)	5℃-40℃
	Environment humidity(boot)	20℃-80℃
	Environment height	0-3000m
	Size	*1025.7579.8125.5mm*
	Weight	29kg
	splicing gap	6.7mm
