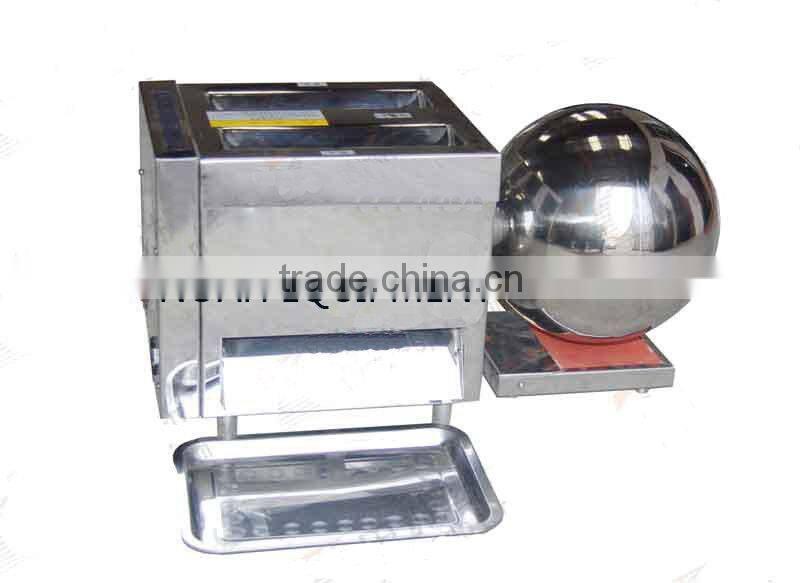

DZ-20 Small Size Pill Maker

Application:

The DZ-20 Small size pill maker is mainly used for producing pills from Chinese herbal medicine. It can produce honeyed pill, condensed pill, water-bindered pill, coating, baking and foodstuff industries efficiently. It adopts high-precision mechanical drive type. Also can continuous automatic(also can be hand-operated) machine-shaping. Traditional Chinese medicine, health care, foodstuff industries needs fashioned round-shaped, slice-shaped, strip-shaped products. It adopts pyroelectricity baking technology, putting end products coating and icing, also baking.

Characteristic:
1,The functions of this machine are performance steady, easy to operate and clean.
2,It can continuous outing strip, twisting pill, drying one time, and the pills is round and uniform size, difficult to broken, dispense with screening.
3,This machine had good applicability. It can produce all kinds of viscosity soft, hand pill, high efficiency, is special suitable for producing pills in small pharmaceutical factory trial-produce room, traditional Chinese medicine research laboratory, hospital, pharmacy, health care, foodstuff and other industries.

4,The parts touched with the drug and hull are all made of stainless steel, meets GMP requirement

Main technical parameters:
1,Scope of function:Can produce honeyed pill, condensed pill, water honey pill, water-bindered pill, coating, baking, pelletized food, etc
2,Pelleting standard:Φ3mm Φ4mm,Φ5mm,Φ6mm,Φ7mm,Φ8mm Φ9mm Φ10mm Φ11mm Φ 12mm Φ13mm

Cpacity:Honeyed pill 7kg/h(Subject to 5mm).
4,Motor output power: 0.18KW,Electrical heating 1KW
(1)Voltage 220V,50HZ
(2)Voltage 110V,60HZ
Motor speed 1400 r/min, working speed 50 r/min
5,Scope of applications: It is widely used in small size pharmaceutical factory, large and medium enterprise pharmaceutical factory trial-produce room, traditional Chinese medicine research laboratory, drug scientific research unit, hospital, private clinic, traditional Chinese medicines shop(house), tonic sale website counter site's process, foodstuff factory for developing pelletized food and other units.
6,Overall size:546×321×247mm
7,Machine weight:30kg.
8,Structure:This machine consists of squeeze the clutch roller, pelleting roller, water-bindered pill coating machine, whole gear graduation, motor, electrical heating component.

Export standard plywood package are supplied with well packed. we can make the packages according to customer's request. Sea packages or Air packages are both available.
Usually to ship DZ-20 Small size pill maker by sea way.
