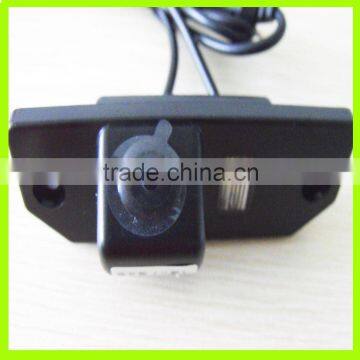

Car Reverse Parking Camera for Focus Cars
- 2000 Piece / Pieces per Month
- Shenzhen
- Credit Card
You May Like
Product Details
| Type | Reverse Camera | Voltage | DC 12V | |
| Power | 0.1W | Car Make | Focus car | |
| Place of Origin | Guangdong, China | Brand Name | BIG VIEW | |
| Model Number | HTH-935 |
Product Description
Specifications
1) high quality,reasonable price2)170 degrees viewing angle
3)high definition,waterproof
4)PAL/NTSC selectable
5)dustproof
Products Name : car reverse parking camera
My advantage:
1.Competitive price
2.All kinds of Model
3.long working life.
4.2year warranty
5.night vision car camera with IR
6.water-proof car camera
7.high quality car camera
8.CE,FCC,RoHS
Main Specifications:
1.12V car rear view vcamera
2.Side view camera
3.Waterproof ,wide angle and night vision function.
4.Installed under car's
The 12V car rear view camera's feature and parameter:
1.Nightvision car camera, side view camera.
2.Waterproof ip 67.
3. 3 color parking guidelines,can be connected with gps,dvd or rear view monitor
4.IR Distance 10m.
Product Features:
- Original fitting by replacing the license light.
- Smart size for hidden installation.
- 170 degrees wide angle waterproof lens and dust-proof applied, with reference line.
- License light available on partial models.
- Night vision available and high definition camera. Good driving assistant in the night.
- Day /Night sensor for automatic adjustment,minimum illumination auto fill light.
- Accessories included video cable and power cable.
♥Product Specifications(with 3 different chip) :
1. Sensor:PC1030
| Features | describe | Features | describe |
| Device Type | CMOS | Output signal system | NTSC/PAL |
| Optical Size | 1/4" | S/N Ratio | more than48dB |
| Sensing Area | 3.596mm*2.708mm | Dynamic range | 60dB |
| TV line | 420 | synchronous mode | inter-sync |
| Pixels | Pal:648*488 NTSC:582*492 | Display direction | Mirror/natural |
| lens | f=1.9 λ=400~700nm | Distance line | can be choosen |
| Minimum Illumination | 0.1lUX/F=1.2(OLux with ON | Work Voltage | 9v-16v |
| Shutter | 1/60-1/5000sec | Work current | ( 12V)45mA±5mA |
| Viewing Angle | 170 degrees | Power consumption | 0.54W |
| Output signal type | CVBS | Working Temperature | -20°C~+60°C |
| Output signal amplitude | 1Vp-p75Ω | White Balance | Auto |
2. sensor: PC3030
| Features | describe | Features | describe |
| Device Type | CCD | Output signal system | NTSC/PAL |
| Optical Size | 1/3" | S/N Ratio | more than48dB |
| Sensing Area | 3.584mm*2.688mm | Dynamic range | 60dB |
| TV line | 480 | synchronous mode | inter-sync |
| Pixels | Ntsc/Pal: 728(H)*488(V) | Display direction | Mirror/natural |
| lens | f=1.9 λ=400~700nm | Distance line | can be choosen |
| Minimum Illumination | 0.1lUX/F=1.2(OLux with ON | Work Voltage | 9v-16v |
| Shutter | 1/60-1/10000sec | Work current | ( 12V)105mA±5mA |
| Viewing Angle | 170 degrees | Power consumption | 0.3W |
| Output signal type | CVBS | Working Temperature | -20°C~+60°C |
| Output signal amplitude | 1Vp-p75Ω | White Balance | Auto |
3.sensor :MT9V136
| Features | describe | Features | describe |
| Device Type | CCD | Output signal system | NTSC/PAL |
| Optical Size | 1/3" | S/N Ratio | more than48dB |
| Sensing Area | 3.584mm*2.688mm | Dynamic range | 60dB |
| TV line | 480 | synchronous mode | inter-sync |
| Pixels | Ntsc:(720*480) Pal:(720*670) | Display direction | Mirror/natural |
| lens | f=1.9 λ=400~700nm | Distance line | can be choosen |
| Minimum Illumination | 0.1lUX/F=1.2(OLux with ON | Work Voltage | 9v-16v |
| Shutter | 1/60-1/10000sec | Work current | ( 12V)105mA±5mA |
| Viewing Angle | 170 degrees | Power consumption | 0.3W |
| Output signal type | CVBS | Working Temperature | -20°C~+60°C |
| Output signal amplitude | 1Vp-p75Ω | White Balance | Auto |
Note:
waterproof, shockproof, high temperature resistance,high definition,humidity resistance
Waterproof test :
Installation:
loading position is of unity,the structure does not destroy the original car,combined with the car perfectly.Good hiding in the car could barely see the rear camera (Subject to loading the actual effect)
Remarks:
We are professional manufacturer---make sure best quality with very reasonable price. Integrity and credibility is our philosophy.Hoping some of them meet your taste and needs,also with the hope that we can establish long-term and friendly cooperation relationship in the future.
BEST WISHES TO YOU AND YOUR FAMILY!
