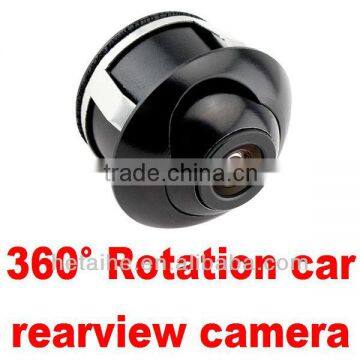

360degree rotation car rearview camera

Specifications

360degree rotation car rearview camera

Advantage:

1.Easy to install

2.Wide view angle

3.Mirror/Normal image can be switched(optional to some chipset)

4.Distance label function can be switched on/off

5.Parking line can be optioned

6.Different chipset to be choose

7.High resolution rear view camera that works at night or day

8.Smaller size design for easily installed in the behind of car

9.Certification:CE, RoHS, ISO9001, FCC

10.2year warranty

Specifications:

1.12V car rear view vcamera
2.Side view camera
3.Waterproof ,wide angle and night vision function.
4.Installed under car's

Sensor:PC1030:
Device Type...............CMOS
Optical Size..............1/4"
Sensing Area..............3.596mm*2.708mm
TV Lines..................420
Pixels....................Pal:648*488 NTSC:582*492
lens......................f=1.9 λ=400~700nm
Minimum Illumination......1Lux
Shutter...................1/60-1/5000sec
Viewing Angle.............170 degrees
Output signal type........CVBS
Output signal amplitude...1Vp-p75Ω
Output signal system......NTSC/PAL
S/N Ratio.................more than 48dB
Dynamic range.............60dB
synchronous mode..........inter-sync
Display direction.........Mirror/natural
Distance line.............can be choosen
Work Voltage..............9V-16V
Work  current.............(12V)45mA±5mA
Power consumption..........0.54W
Working Temperature.......-20°C~+60°C

Sensor:MT9V136
Device Type................CMOS
Optical Size...............1/4"
Sensing Area...............3.596mm*2.708mm
TV Lines...................420
Pixels.....................Ntsc:(720*480)
Pal:(720*670)
lens.......................f=1.9 λ=400~700nm
Minimum Illumination.......0.2Lux
Shutter....................1/60-1/5000sec
Viewing Angle..............170 degrees
Output signal type..........CVBS
Output signal amplitude.....1Vp-p75Ω
Output signal system........NTSC/PAL
S/N Ratio...................more than 48dB
Dynamic range...............60dB
synchronous mode............inter-sync
Display direction...........Mirror/natural
Distance line...............can be choosen
Work Voltage................2.8V±5%
Work  current...............<105mA
Power consumption...........0.3W
Working Temperature.........-20°C~+60°C

Note:

waterproof, shockproof, high temperature resistance,high definition,humidity resistance

Quality Assurance:

1.Aging test
2.Shockproof test
3.Waterproof test
4.High-and-low temperature test

Installation:

loading position is of unity,the structure does not destroy the original car,combined with the car perfectly.Good hiding in the car could barely see the rear camera (Subject to loading the actual effect)

Products show:

Our Commitment:

*We would control our products quality strictly and use the best housing/case from authorized case manufacturer to ensure there is no defect in the housing surface as far as we can

*It is very a effective way to reduce the percentage of products sent back for repair and save the cost for our oversea partners

*You could a very competitive price,but we cant promise our price is the lowest considering the quality.

*We value performance price ratio more important than the lowest price.
