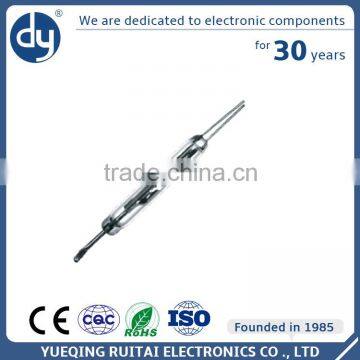

Chinese Manufacturer Wholesale Price magnetic reed switch
- NINGBO or SHAGNHAI
- T/T Credit Card
You May Like
Product Details
| Place of Origin | Zhejiang, China | Brand Name | [dy] | |
| Model Number | XSH-1 | Max. Current | 0.05A | |
| Max. Voltage | 24VDC |
Product Description
XSH-1 SERIES CHARACTERISTICS
DIMENSIONS | Φ6.5×42MM |
CONTACT TYPE | 1C |
CONTACT RATING | 100VA |
PULL IN VALUE(PI) | 80-240AT |
DROP OUT VALUE(DO) | ≥30AT |
CONTACT RESISTANCE | ≤50MΩ |
BREAKOVER VOLTAGE | ≥1000VDC |
INSULATION RESISTANCE | ≥100MΩ |
ELECTROSTATIC CAPACITANCE | 0.5PF |
MAXIMUM SWITCHING VOLTAGE | 500VDC |
MAXIMUM SWITCHING CURRENT | 4A |
MAXIMUM CARRY CURRENT | 8A |
OPERATE TIME | ≤5MS |
BOUNCE TIME | ≤5MS |
RELEASE TIME | ≤2MS |
MAXIMUM OPERATING FREQUENCY | 100HZ |
OPERATING TEMPERATURE | -10-70℃ |
CHARACTERISTICS
1 REED CONTACTS ARE HERMETICALLY SEALED WITHIN A GLASS TUBE AND DO NOT RECEIVE THE EXTERNAL ATMOSPHERIC ENVIRONMENT;
2 QUICK RESPONSE, AND LIGHT WEIGHT
3 SUPERIOR CORROSION RESISTANCE AND WEAR RESISTANCE OF THE CONTACTS ASSURES STABLE SWITCHING OPERATION AND LONG LIFE;
4 COMPOSED FAST WITH THE COIL AND MAGNET, REED SWITCH CAN BE USED FOR REED RELAY OR SENSOR
5 WIDELY USED IN HOUSEHOLD APPLIANCES, CONTROL EQUIPMENT, COMMUNICATION EQUIPMENT, COMMUNICATION, AUTOMOTIVE ELECTRONIC DEVICES AND MEASUREMENT EQUIPMENT ETC.
XGH/GSH CODE EXPLANATION - FOR EXAMPLE
Raw Materials:
