Home > Products > Automatic hydraulic cutting machine > Automatic Precision Four fully automatic conveyor belt cutting machine

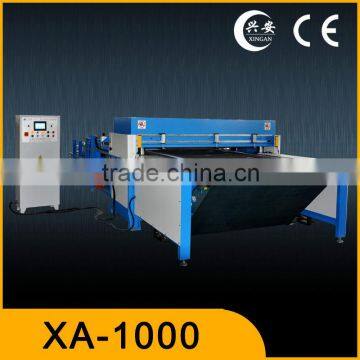

Automatic Precision Four fully automatic conveyor belt cutting machine
- SHANGHAI
- T/T
You May Like
-
automatic hydraulic car interior fabric cutting machine
-
hydraulic die corrugated paper box cutting machine
-
hydraulic movable head die cutting press machine
-
Gasket hydraulic die cutting press machine rubber/EVA Foam/fabric/paper
-
hydraulic travelling head cutting press machine sponge & epe foam cutting machine price
-
new travelling head hydraulic garments fabric cutting machine price
Product Details
| Place of Origin | Jiangsu, China | Brand Name | Xing'An | |
| Model Number | XA-1000 | After-sales Service Provided | Engineers available to service machinery overseas |
Product Description
Don't know how many ton you need?
Please contact us!
Don't know how the machine working?
Please contact us to see the video!
What Specifications of our cutting machie?
Technical Parameters
Model | XCLP3-1500 |
The Maximum Cutting Force | 1000KN |
PunchingSpeed | 5s within the (equipment operation time) |
The Electrical Power | 8KW |
Stroke Adjustment Range | 0-130mm |
The Pressure Plate To TheTable Distance | 50-180mm |
The Effective Area Of The Table | 800*1600mm2 |
Blanking Area | 800*1600mm2 |
Dimension | 4000*2200*1300mm2 |
Weight | 6700Kg |
Fuel Tank Capacity | 180L |
Use and character
1. This machine is suitable for large plants with a die cutter carpet, leather, rubber, cloth and other non-metallic materials for continuous high-volume cutting operation |
2. conveying part adopts PLC control, servo motor drive input material from one side of the machine, by die-cutting, the output from the other side to ensure accurate feeding, stable operation; and feeding length can be adjusted conveniently via the touch screen. |
3. The machine adopts four-column guiding, double-crank balancing, four-column blocking fine-adjustment mechanism, hydraulic control system to ensure that the cutting speed and accuracy of the machine, all movable connecting parts are equipped with central oil supply automatic lubricating device, the wear to a minimum. |
4. Material inputs and outputs are on the conveyor belt, the die cutting of the material is done automatically on a conveyor belt. |
5. Using pneumatic photoelectric corrective devices to ensure accurate location of the belt run. |
6. Cutting machine feed area, a gate equipped with safety screens, ensuring operator safety. |
7. The fixed die cutter with pneumatic clamping device, replace the cutter convenient and prompt. |
8. Special specifications can be customized. |
Why Choose Us?
1. We will run the machine for a few days, and use your materials to do the test. Only guarantee the machine shows best performance, and then we will ship out.
2. Our elite teams can provide you professional, customized, and all-round services around the clock. If you need any help, contact us by Email or Telephone.
3. 24hour technical support on Internet or by Telephone, free instructions and problem solving.
How to choose the most suitable hydraulic die cutting machine for your business?
1)material: nonmetal
2)Cutting area depends on your material size.
3)Feeding system depends on your material style ( rolls or sheets).
4)The force depends on the perimeter of the die blade.
Welcome to contact us for select the right model.
Remark: We can make the machine according to your specifically order, for example the color, the motor information ,the working table etc.
working show
Field trips
1.Q:Are you a factory or tarding company?
A:We are a factory
2 Q:What is your MOQ of this item?
A: 1 set per style
3 Q: What are your payment terms?
A: 30% deposit and balance T/T before shipment or L/C at sight.
4 Q:Why we choose Xingan?
A:16 years experience of cutting machine industry.
Factory direct sales,best price.
Fast,safe and timely transport supplies.
OEM and ODE service are availale.
5 Q: How to choose the most suitable machine for your business?
A: 1.Tell us the materials you use.
2.The size and thickness about your materials.
3.Which automatic grade you need, automatic or manual?
4.The perimeter of the die cutter you use, our factory also can produce the dies for your machine
