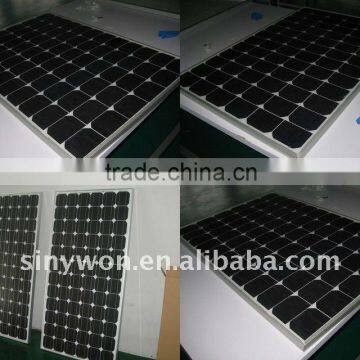

250W Poly Solar Panel with TUV/CE/IEC

FOB Price

US$ 1.1 - 1.8 / Piece

20 Pieces(Min. Order)

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

250W Poly Solar Panel with TUV/CE/IEC
1.Warranty:25yrs
2.CE TUV,ULCertification
3.High Efficency
4.Steady yield

250W Poly Solar Panel with TUV/CE/IEC

1.5 yrs Quality Warranty
2.CE,TUV,UL,IEC Certification
3.High Efficency Solar Cells 12.94%
4.Life Span 25 yr

Model		SYW-250P
		Poly-crystalline silicon
Maximum Power	Watt	250W
Production Tolerance		+3% /-3%
Maximum Power voltage	V	35.14
Maximum Power current	A	7.12
Open circuit voltage	V	43.2
Short circuit current	A	7.6
Size of module (wide and high)		196098650mm
Frame (type, material and thickness)		Anodized Alu. Alloy frame,40mm thickness
Number of cells		72pcs
Size of cells (wide and high)		156mmx156mm
Weight per piece Kg		20.96
Type of junction box		PV junction box
Cable type and length, Connector type		PV cable, 0.8m Plug and socket
Maximum system voltage		1000V
Temperature coefficient of Isc		+0.05%/°C
Temperature coefficient of Voc		-0.33%/°C
Temperature coefficient of power		-0.23%/°C
Temperature coefficient of Im		+0.05%/°C
Temperature coefficient of Vm		-0.33%/°C
NOCT (Nominal operating cell temperature)		45°C(+2°C)
Insulation		>=100 MΩ
Voltage Standoff		AC2000V, DC3000V
Wind Bearing		60m/s (200kg/sq.m)
Impact Resistance Hail Impact Test		227g steel ball fall down from 1m height
CONVERSION EFFICIENCY		Cell CONVERSION EFFICIENCY >14.27%
