Home > Products > Horizontal Bead Mill / Sand Mill > Professional Cone Sand Mills
Professional Cone Sand Mills
- Shanghai Guangzhou etc.
- T/T Credit Card
You May Like
Product Details
| Condition | New | Type | Sand Mill | |
| Product Type | Other, Inks,Slurry, Paste, Paint etc. | Place of Origin | Shanghai, China | |
| Brand Name | ELE | Model Number | EZW-14 | |
| Voltage | 380V or per customer's requirement | Power(W) | 37Kilowatt | |
| Dimension(L*W*H) | 1700mm*670mm*1860mm | Weight | 1230kgs | |
| Certification | CE |
Product Description
Specifications
1.Suitable for high viscous material2. Cone pin type bead mill
3.Build-in cooling structure
4.Variable volume structure

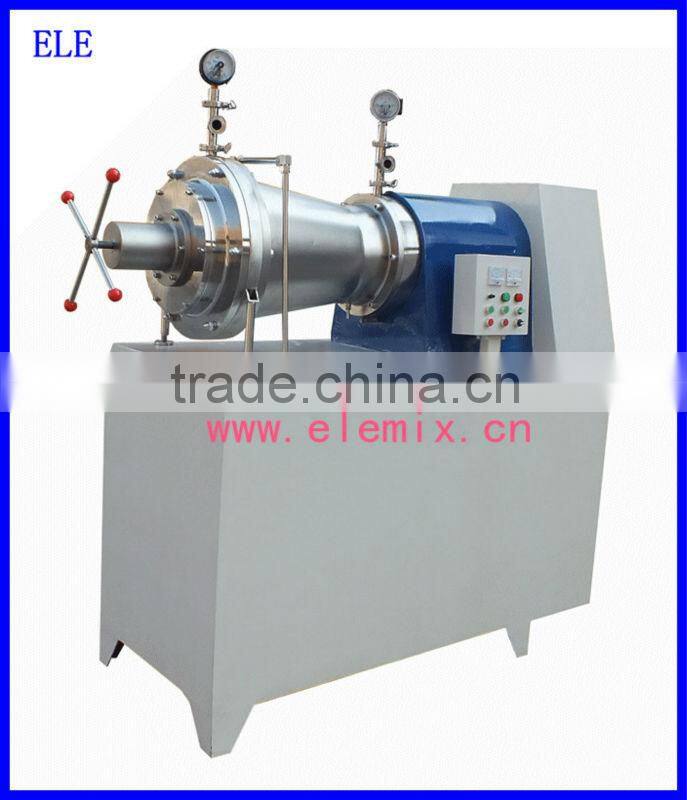

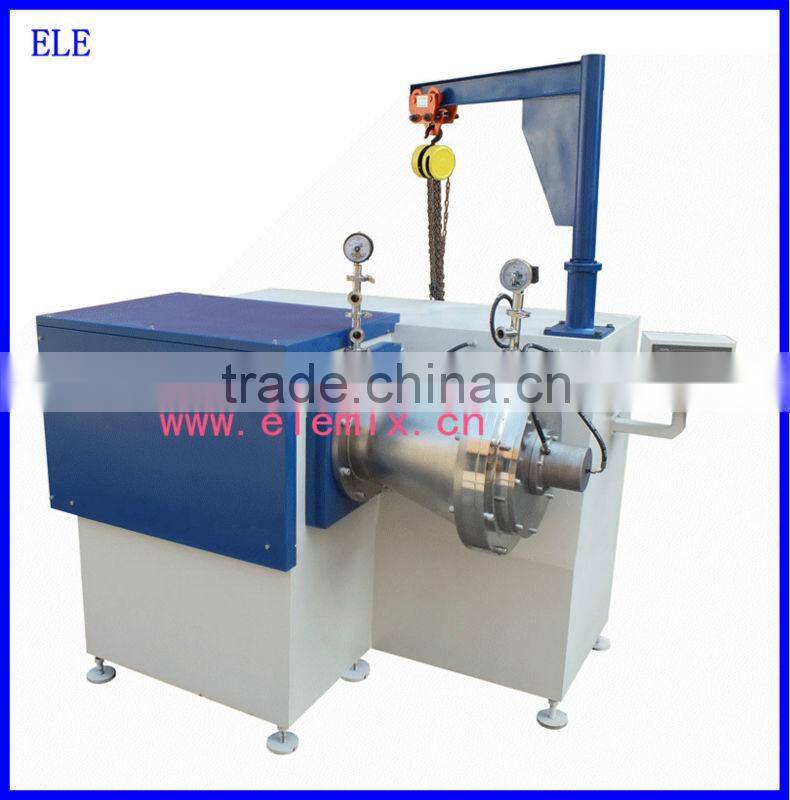

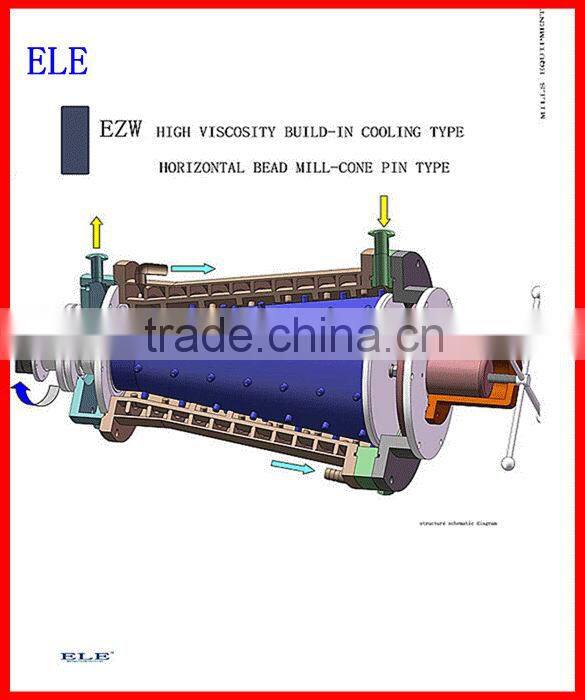

EZW Series High Viscosity Build-in Cooling Type Horizontal Bead Mill - Cone Pin Type, Pigment Grinding Mill,Grinding Equipment,Bead Mill, Sand Mill, Paint Mill
Features
1. Specially designed for high viscous range of materials, particularly suitable for ultrafine grinding in the field of ink;
2. Adopt build-in cooling structure to effectively and timely take out the heat generated.
3. The rotor at high speed rotation in conical grinding chamber can effectively promote high viscous material to avoid accumulation of high viscous material;
4. The piston-type and variable volume structure of the grinding chamber adjust energy density, and effectively reduce energy consumption at the start.
Technical Parameter
Model | Power (KW) | Rotation (RPM) | Cavity Volume(L) | Bead Loading Volume(KG) | Feeding Size(”,1”=3.33cm) | Capacity(L/H) | Cooling Water Pressure(KG/CM2) | Dimension(CM) | Weight (KG) |
EZW-14 | 37
| 860 | 14 | 56 | 1 | 180 | 1.5-2 | 170×67×186 | 1230 |
EZW-16 | 55
| 360 | 16 | 65 | 1 | 260 | 1.5-2 | 196×145×164 | 4100 |
Applications
Screen printing ink, Offset ink, Light-curing ink, High viscous slurry
Remarks
1. If oil product, we design motor and on-spot control box expolsion-proof.
2. The power supply can be changed for different country.
About Us ---ELE
Remarks:
We have CE certificate.
