Home > Products > New Products > ZIF 1.8 Solid State disk

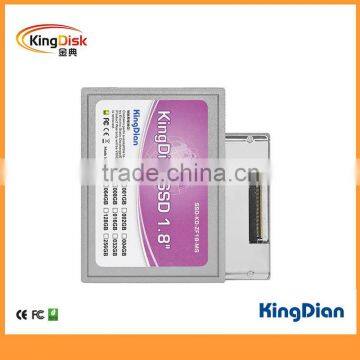

ZIF 1.8 Solid State disk
US$ 30 - 150
/ Piece
50 Pieces(Min. Order)
- Shenzhen
- T/T Credit Card
You May Like
Product Details
| Products Status | Stock | Application | Other, Any PC with ZIF(IDE 40pin) interface | |
| Type | Internal | Style | SSD | |
| SSD Capacity | Other, 8GB-128GB | Size | Other, 1.8" | |
| Interface Type | Other, ZIF(IDE 40pin) | Brand Name | KingDian | |
| Model Number | SSD-KD-ZF18-MJ | Place of Origin | Guangdong, China |
Product Description
Specifications
ZIF 1.8 Solid State diskSupport NCQ,SMART
Density: 8GB-128GB
Support static and dynamic wear-leveling, bad block management
| SSD-KD-ZF18-MJ | ||||||
| Item | Model | SSD-KD-ZF18-MJ | ||||
| General | Form factor | 1.8" | ||||
| interface | ZIF40Pin | |||||
| Performance | Capacity(GB) | 8GB | 16GB | 32GB | 64GB | 128GB |
| Sustained Read | 29MB/S | 29MB/S | 65MB/S | 71MB/S | 71MB/S | |
| Sustained Write | 24MB/S | 24MB/S | 47MB/S | 52MB/S | 52MB/S | |
| Random IOPS | 5.585 | |||||
| Average Access time | 0.2ms | |||||
| Storage Media | NAND Flash | MLC-NAND Flash | ||||
| Power Consumption | input Voltage | 3.3V or 5V± 5% | ||||
| Idle | 0.5W | |||||
| Active | 1.5W | |||||
| Reliability& Endurance | Write endurance | 80years@10GBytes write and erase per day at 128GB | ||||
| Read endurance | unlimited | |||||
| Wear-Leveling Algorithm | Dynamic and static wear-leveling | |||||
| Data Retention | 10years at 25ºC | |||||
| MTBF | 1,000,000hours | |||||
| ECC | Supports BCH ECC 8bits or 15bits in 512 bytes | |||||
| Bad Block Management | Auto Bad Block Management in system | |||||
| Environment | Operating Temperature | 0~70ºC | ||||
| Non-operating Temperature | -40~85ºC | |||||
| Shock | 2,000G(@0.3ms half sine wave) | |||||
| Vibration | 20G(40-2000HZ) | |||||
| Humidity | 5-95% | |||||
| Warranty | 2years | |||||
| Available unit | Available,NO EOL | |||||
| Testing Platform | AMD Athlon 64 3000+ 1.8GHz,DDR2 PC2-5300 512MB×2pcs double channel. RAM,NVIDIA nForce520 chipset,Microsoft Windows XP Professional SP3 | |||||
| Testing Software | HDBench3.4.0.3, IOMeter 2006.07.27 | |||||
| Physical Dimensions& Weight | Height(mm) | 5.0± 0.25 | ||||
| Width(mm) | 54.1± 0.25 | |||||
| Length(mm) | 71.1± 0.25 | |||||
| Weight(g) | 40 | |||||
| The read and write speed is limited to this test platform. | ||||||
