Home > Products > S500 120GB SATA3 series > KingDian S500 120GB Internal 2.5'' SSD Solid State Hard Disk
KingDian S500 120GB Internal 2.5'' SSD Solid State Hard Disk
- Shenzhen
- T/T Credit Card PayPal
You May Like
-
2.5 Inch SATA3 120GB S500 Super Speed Kit Internal External SSD for Games Medical POS Industrial Tablet PC
-
High Speed KingDian S500 240GB 2.5 Inch Internal SSD Solid State Drive
-
KingDian Brand 2.5 Inch Internal Ssd Hard Drive 120GB
-
High Speed KingDian S500 240GB 2.5 Inch Internal SSD Solid State Drive
-
Souvenir Edition KingDian S500 120GB 2.5 Inch SSD Solid State Drive
-
KingDian SSD 240GB In Hard Drives 2.5 Inch SATA3 Stock For Desktop and Laptop Internal Hard Disk Sever
Product Details
| Products Status | Stock | Application | Other, All board with SATA | |
| Type | Other, Both internal and external | Style | SSD | |
| SSD Capacity | Other, 4GB-480GB | Size | Other, 2.5" | |
| Interface Type | Other, SATAIII | Brand Name | KingDian | |
| Model Number | S500 | Place of Origin | China |
Product Description
SSD professional manufacturer

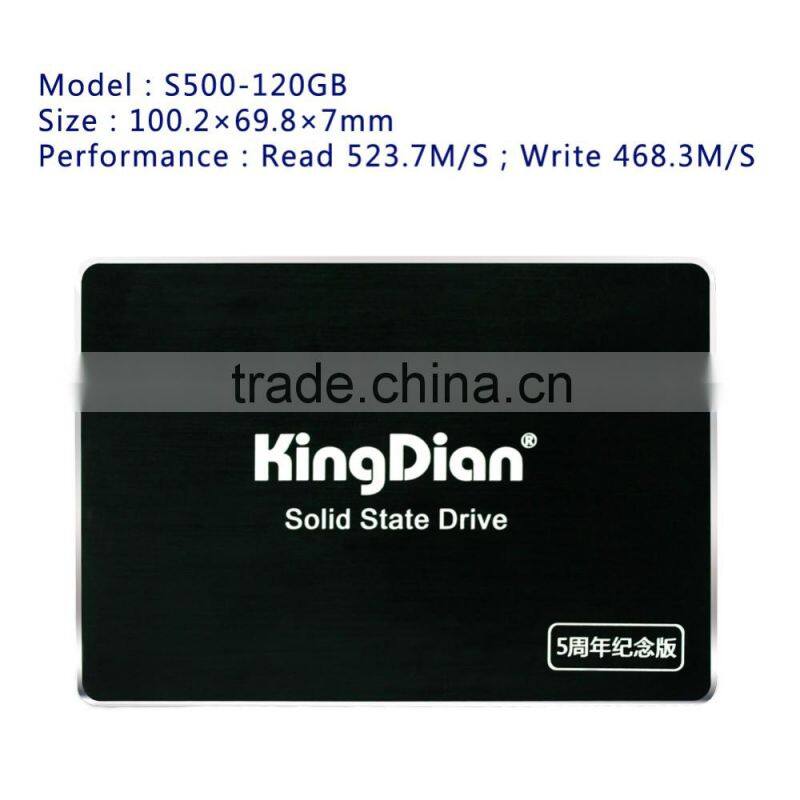

KingDian S500 120GB Internal 2.5'' SSD Solid State Hard Disk
Interface: SATAIII
Dimension: 100*70*7 mm
Capacity: 120GB
SDram: 128MB
Flash type: MLC NAND Flash

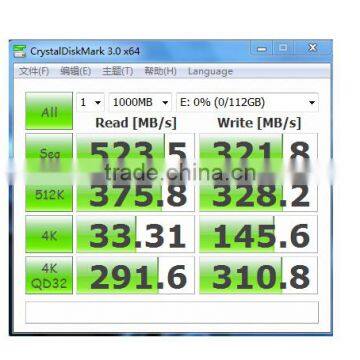

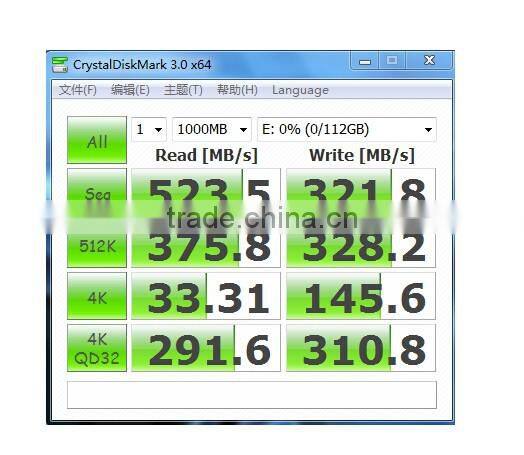

Read/Write Performance:
Sequential Read: Up to 523MB/s
Sequential Write: Up to 321MB/s
4KB Random Read IOPS: 70000
4KB Random Write IOPS: 3000
Response Time: 0.2ms
Power Consumption:
Power Supply: 5V+5%
Standby: 0.3W
Maximum Ripple: 70 mV(peak to peak)
4KB Random Write: 2.5W
Reliability:
Write endurance: 8 years 100G write/day(32G)
Read endurance: unlimited
MTBF: >2,000,000 hours
Data retention: >20years 25
Data destroy do not support
Sudden power-off recovery support
Support: S.M.A.R.T, NCQ,Trim and dynamic power management.
Static and dynamic wear-leveling
Bad block management algorithm
ECC: Supports BCH ECC 12/14/40 bits in 1024 bytes
Environment:
Storage temperature: -55~95
Operation temperature: -0~55
Humidity: 5%~95%
Vibration: 15G (10 to 2000Hz)
Shock: 350G at 0.5ms
Warranty: 3 years
Specifications:
1)Physical Dimensions: Parameter Value
Length(Parameter): 100+0.1mm(Value)
width (Parameter): 70+0.1 mm(Value)
height(Parameter): 7+0.1 mm(Value)
Table 3 Physical dimensions of the driver
2) Interface Mode:
The interface of the 2.5" SATA SSD complies with the standard Serial ATA version 3.1:
1,Host Transfer Rate is 600MB/s(6.0Gb/s)
2,PIO mode 0,1,2,3,4
3,DMA mode 0,1,2
4,UDMA mode 0,1,2,3,4,5,6
