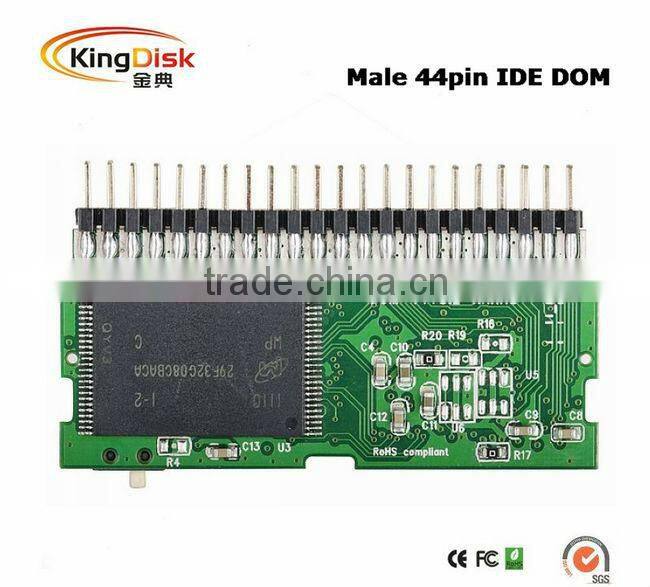

Male 4GB 44 Pin IDE DOM

FOB Price

Negotiable / Piece

5 Pieces(Min. Order)

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Male 4GB 44 pin IDE DOM
1)Improve data security
2)CE,ROHS,FCC
3)MAX substain R/W:43/21MB/s
Sample OK,ECC,RAID,NCQ

Name:Hot sale ! Male 4GB 44 pin IDE DOM 2 Channels SSD for UMPC,Player,Thin Client,POS System,ect !!!

General
Product model	DOM-KD-PA44G.2-MS
Interface	44PIN IDE Socket
Storage media	MLC-NAND Flash
Capacity(GB)	1GB 2GB 4GB 8GB 16GB
Performance
Max Sustained Read	43MB/s
Max Sustained write	21MB/s
4KB Sequential Read IOPS	4311
4KB Sequential Write IOPS	647
Average Access time	0.3ms
Power Consumption
input Voltage	3.3v/5v
Work power	0.45W
Standby power	0.0005W
Reliability& Endurance
Write endurance	8years@100GBytes write and erase per day
Read endurance	unlimited
S.M.A.R.T	Support
Wear-Leveling Algorithm	Dynamic and static wear-leveling
Data Retention	10years at 25ºC
MTBF	1,000,000hours
ECC	Supports BCH ECC 8bits or 15bits in 512 bytes
Bad Block Management	Auto Bad Block Management in system
Environment
Operating Temperature	0~70°C
Non-operating Temperature	–45~85°C
Shock	2,000G(@0.3ms half sine wave)
Vibration	20G(40-2000HZ)
Humidity	5-95%1
Physical Dimensions & Weight
Height(mm)	22.8mm
Width(mm)	6.7mm
Length(mm)	50.7mm
Weight(g)	9
Testing software&platform
Testing Software	HDBench3.4.0.3, IOMeter 2006.07.27
Testing Platform	AMD Athlon 64 3000+ 1.8GHz,DDR2 PC2-5300 512MB×2pcs double channel RAM,NVIDIA nForce520 chipset,Microsoft Windows XP Professional SP3

What do it do?

Speed up your system with an additional memory support that can connect to your mini ITX's IDE slot.
The high capacity EDC (Embedded Disk card) memory storage is well suited for solidstate mass storage applications offering new and expanded functionality while enabling cost-effective designs.
It is designed to replace a conventional IDE hard disk drive, and can be plugged into a standard IDE connector commonly found in desktop or portable PC systems.

Advantages:

Features:

Applications:
