DOM 1GB SATA Flash Module

FOB Price

Negotiable / Piece

5 Pieces(Min. Order)

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Products Status	Stock	Application	Other, All PC board with SATA Interface
Type	Internal	Style	SSD
SSD Capacity	Other, 1GB	Size	Other, 9.5 x23.5 X51mm
Interface Type	SATA	Speed	Other, N/A
Cache	Other, N/A	Brand Name	KingDian
Model Number	DOM-KD-SA.2-MJ5	Place of Origin	Guangdong, China

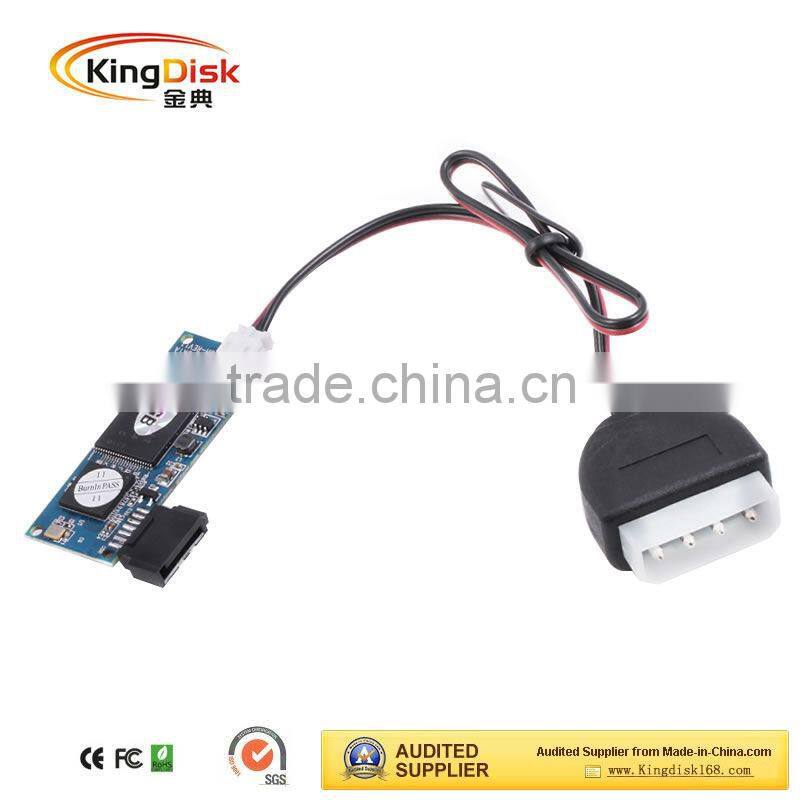

1.DOM 1GB SATA flash module
2.Max Read:51MB/s,Max Write:30MB/s

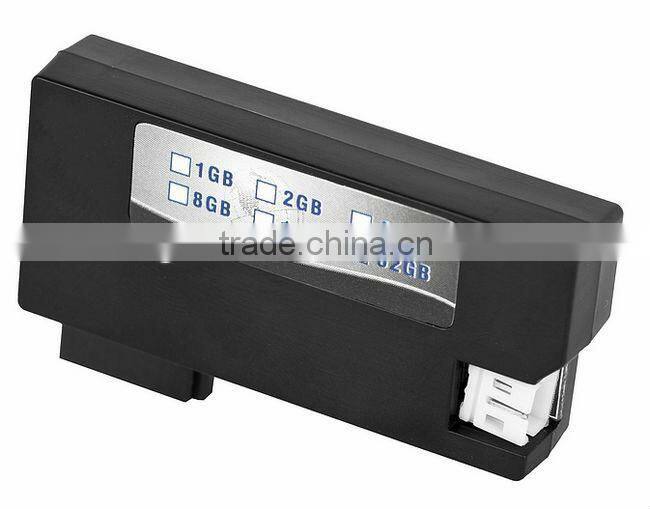

3.Capacity:1GB-32GB
4.CE,FCC,RoHS
5.With 2 years warranty

Product Name : DOM 1GB SATA flash module 2 Channles MLC Nand Flash for Thin Client,Industrial Computer,ect,computer terminal

General

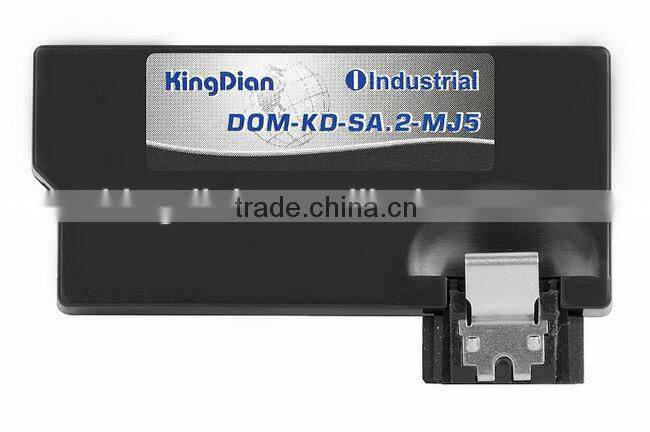

Product model	DOM-KD-SA.2-MJ5

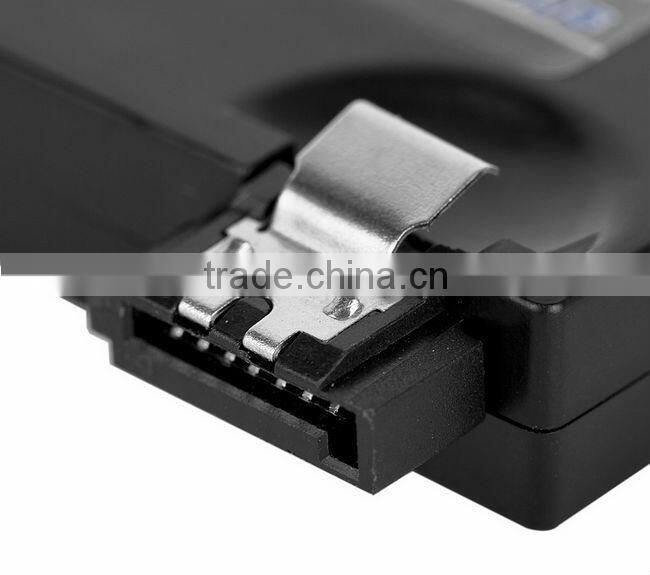

Interface	7 Pin SATA
Storage media	MLC-NAND Flash
Capacity(GB)	2GB 4GB 8GB 16GB 32GB
Performance
Max Sustained Read	46MB/s
Max Sustained write	26MB/s
4KB Sequential Read IOPS	5960
4KB Sequential Write IOPS	2419
Average Access time	0.3ms
Power Consumption
input Voltage	3.3v/5v
Work power	Max 0.75W
Standby power	Max 0.4W
Reliability& Endurance
Write endurance	8years@100GBytes write and erase per day
Read endurance	unlimited
S.M.A.R.T	Support
Wear-Leveling Algorithm	Dynamic and static wear-leveling
Data Retention	10years at 25ºC
MTBF	1,000,000hours
ECC	Supports BCH ECC 8bits or 15bits in 512 bytes
Bad Block Management	Auto Bad Block Management in system
Environment
Operating Temperature	0~70°C
Non-operating Temperature	–45~85°C
Shock	2,000G(@0.3ms half sine wave)
Vibration	20G(40-2000HZ)
Humidity	5-95%1
Physical Dimensions & Weight
Height(mm)	9.5mm
Width(mm)	23.5mm
Length(mm)	51mm
Weight(g)	10
Testing software&platform
Testing Software	HDBench3.4.0.3, IOMeter 2006.07.27
Testing Platform	AMD Athlon 64 3000+ 1.8GHz,DDR2 PC2-5300 512MB×2pcs double channel RAM,NVIDIA nForce520 chipset,Microsoft Windows XP Professional SP3
