Home > Products > DOM(Disk on Module) > 40pin Vertical Dom
40pin Vertical Dom
- Shenzhen
- Money Gram Credit Card
You May Like
Product Details
| Products Status | Stock | Application | Desktop | |
| Type | Internal | Style | SSD | |
| SSD Capacity | Other, 1GB-256GB | Size | Other | |
| Interface Type | IDE | Speed | Other | |
| Cache | Other, N/A | Brand Name | KINGDIAN | |
| Model Number | DOM-KD-PA40L.2-SS | Place of Origin | Guangdong, China |
Product Description
Specifications
40pin vertical domInterface :40pin IDE
Direction: vertical(horizontal optional)
Density: 8GB-256GB
3 years warranty
General | |
Product model | DOM-KD-PA40L.2-SS |
Interface | 40PIN IDE Socket |
Storage media | SLC-NAND Flash |
Capacity(GB) | 2GB 4GB 8GB 16GB 32GB |
Performance | |
Max Sustained Read | 41MB/s |
Max Sustained write | 33MB/s |
4KB Sequential Read IOPS | 4311 |
4KB Sequential Write IOPS | 647 |
Average Access time | 0.2ms |
Power Consumption | |
input Voltage | 3.3v/5v |
Work power | 0.45W |
Standby power | 0.0005W |
Reliability& Endurance | |
Write endurance | 8years@100GBytes write and erase per day |
Read endurance | unlimited |
S.M.A.R.T | Support |
Wear-Leveling Algorithm | Dynamic and static wear-leveling |
Data Retention | 10years at 25ºC |
MTBF | 1,000,000hours |
ECC | Supports BCH ECC 8bits or 15bits in 512 bytes |
Bad Block Management | Auto Bad Block Management in system |
Environment | |
Operating Temperature | 0~70°C |
Non-operating Temperature | –45~85°C |
Shock | 2,000G(@0.3ms half sine wave) |
Vibration | 20G(40-2000HZ) |
Humidity | 5-95%1 |

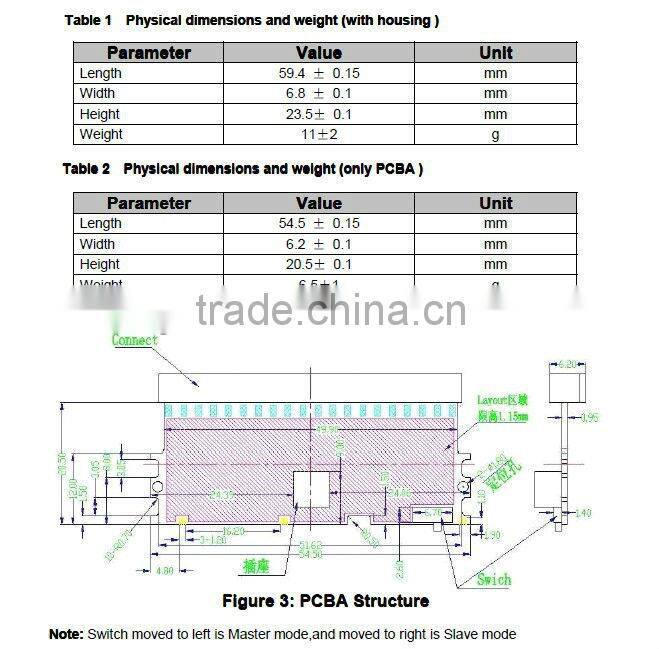

Physical Dimensions & Weight | |
Height(mm) | 23.5mm |
Width(mm) | 6.8mm |
Length(mm) | 60mm |
Weight(g) | 11 |
Testing software&platform | |
Testing Software | HDBench3.4.0.3, IOMeter 2006.07.27 |
Testing Platform | AMD Athlon 64 3000+ 1.8GHz,DDR2 PC2-5300 512MB×2pcs double channel RAM,NVIDIA nForce520 chipset,Microsoft Windows XP Professional SP3 |
