Home > Products > DOM(Disk on Module) > 44pin IDE DOM 32GB
44pin IDE DOM 32GB
Negotiable
/ Piece
10 Pieces(Min. Order)
- Shenzhen
- T/T Credit Card
You May Like
Product Details
| Products Status | Stock | Application | Laptop | |
| Type | Internal | Style | SSD | |
| SSD Capacity | Other, 1GB-64GB | Size | Other, 6.5X33.5 X45.2mm | |
| Interface Type | IDE | Speed | Other, N/A | |
| Cache | Other, N/A | Brand Name | KingDian | |
| Model Number | DOM-KD-PA44W.4-XS | Place of Origin | Guangdong, China |
Product Description

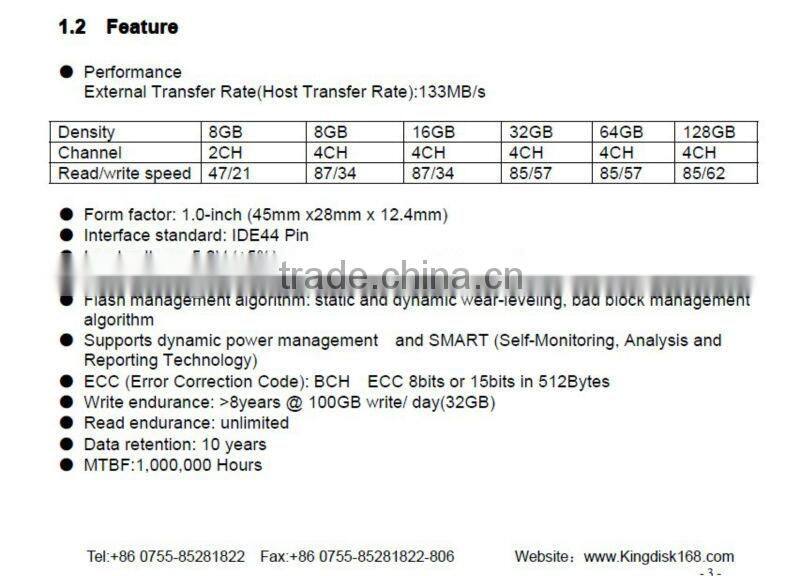

Specifications
1.44pin IDE DOM 32GB2.Max Read:100MB/s *Max Write:50MB/s
3.Capacity:1GB-64GB
4.CE,FCC,RoHS
| General | |
| Product model | DOM-KD-PA44W.4-SS |
| Interface | 44PIN IDE Socket |
| Storage media | SLC-NAND Flash |
| Capacity(GB) | 2GB 4GB 8GB 16GB 32GB 64GB |
| Performance | |
| Max Sustained Read | 100MB/s |
| Max Sustained write | 50MB/s |
| 4KB Sequential Read IOPS | 4311 |
| 4KB Sequential Write IOPS | 647 |
| Average Access time | 0.2ms |
| Power Consumption | |
| input Voltage | 3.3v/5v |
| Work power | 0.45W |
| Standby power | 0.0005W |

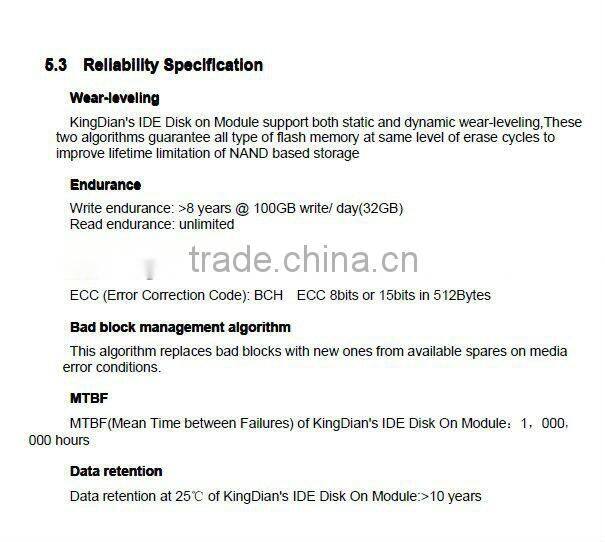

| Reliability& Endurance | |
| Write endurance | 8years@100GBytes write and erase per day |
| Read endurance | unlimited |
| S.M.A.R.T | Support |
| Wear-Leveling Algorithm | Dynamic and static wear-leveling |
| Data Retention | 10years at 25ºC |
| MTBF | 1,000,000hours |
| ECC | Supports BCH ECC 8bits or 15bits in 512 bytes |
| Bad Block Management | Auto Bad Block Management in system |
| Environment | |
| Operating Temperature | 0~70°C |
| Non-operating Temperature | –45~85°C |
| Shock | 2,000G(@0.3ms half sine wave) |
| Vibration | 20G(40-2000HZ) |
| Humidity | 5-95%1 |

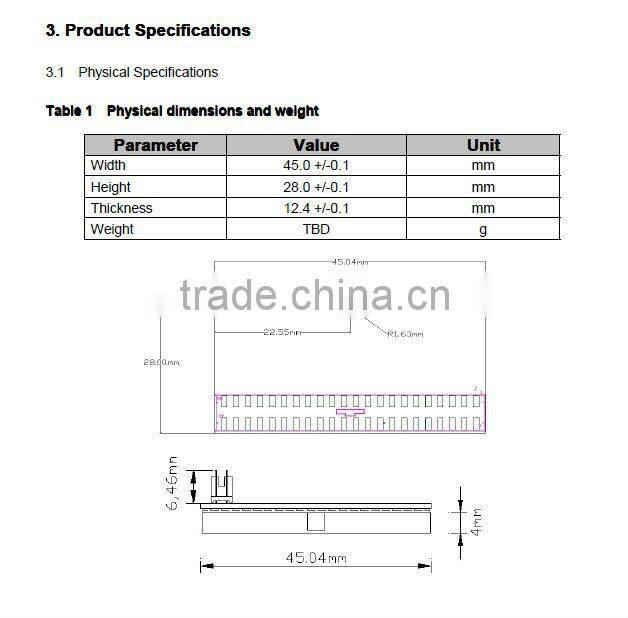

| Physical Dimensions & Weight | |
| Height(mm) | 6.5mm |
| Width(mm) | 33.5mm |
| Length(mm) | 45.2mm |
| Weight(g) | 10 |
| Testing software&platform | |
| Testing Software | HDBench3.4.0.3, IOMeter 2006.07.27 |
| Testing Platform | AMD Athlon 64 3000+ 1.8GHz,DDR2 PC2-5300 512MB×2pcs double channel RAM,NVIDIA nForce520 chipset,Microsoft Windows XP Professional SP3 |
