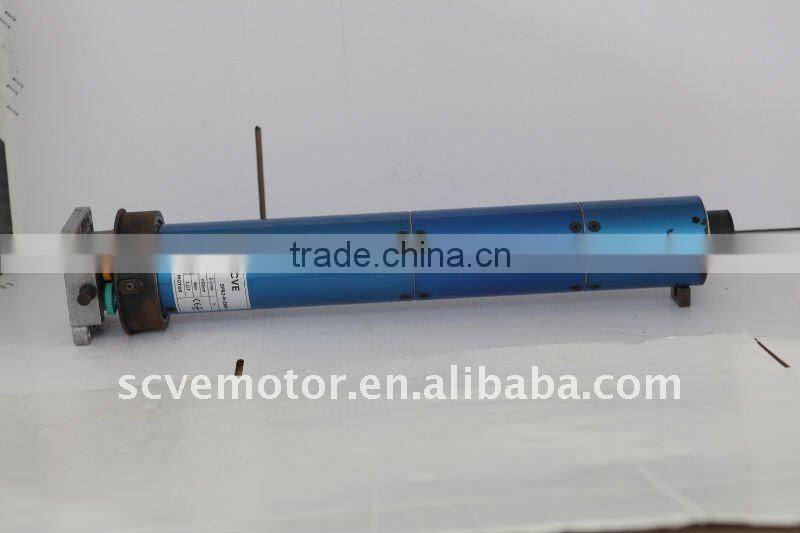

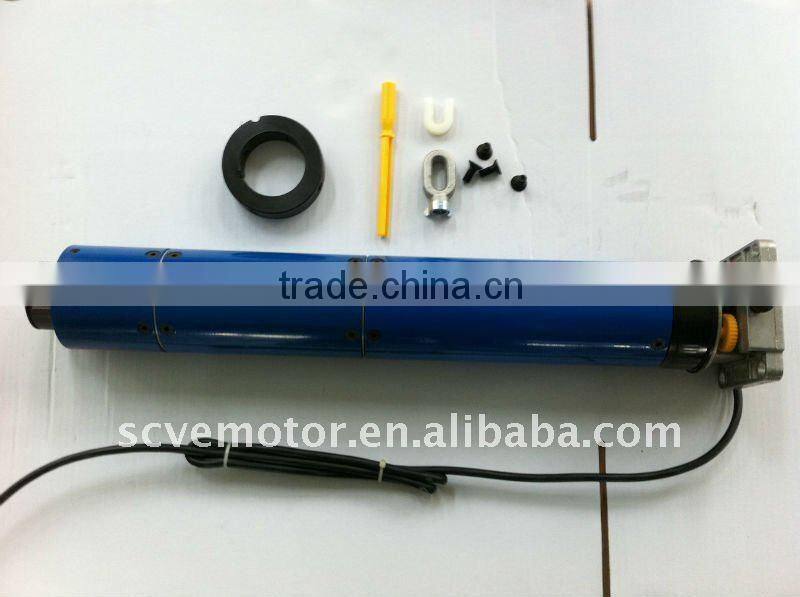

CE TUV CCC Tubular Motor for Roller Shutter

FOB Price

Negotiable / Piece

50 Pieces(Min. Order)

Port Shanghai/Ningbo
Payment TermsT/T D/P D/A

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Brand Name	SCVE	Model Number	SF92 M2 Manual
Type	Other, AC motor	Frequency	50/60
Output Power	580-910	Protect Feature	Other, IP44
Phase	Single-phase	Certification	CCC, CE, ROHS, UL, Other, CCC, CE, ROHS, UL, TUV
AC Voltage	208-230 / 240 V	Place of Origin	Zhejiang, China

Product Description

Specifications

1. Best quality tubular motor in China
2.Tube adaptors to suit 97mm to 135mm

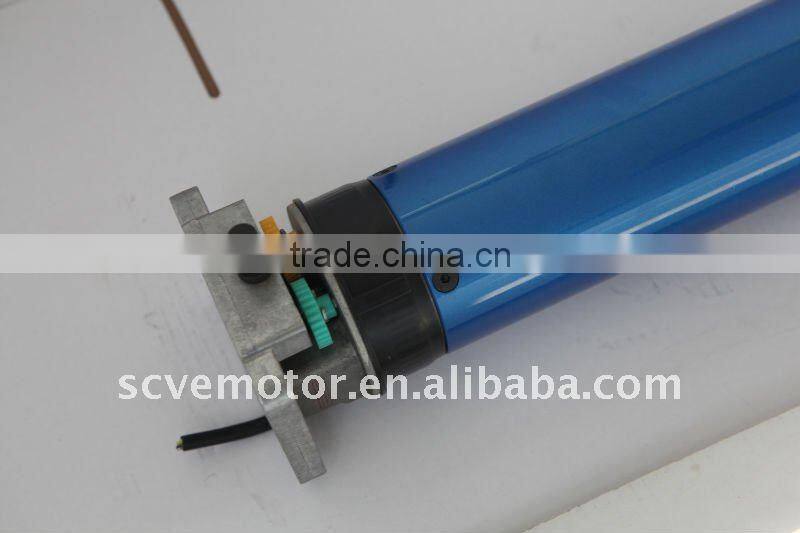

3. with manual override

Company File: Zhejiang Huzhou SCVE Machine&Motor Co.,ltd is a professional manufacturer in tubular motors and relative accessories in China.

With many years' experience, we have established a skilled team with high technology, who are dedicated to investigating and developing new tubular motor constantly .

At present, SF series tubular motor already have the most completed models from 3N.M to 500N.M in diameter of 35mm(SF35series), 45mm(SF45 series), 59mm(SF59 series), 64mm(SF64 series). 92mm(SF92 series), 115mm(SF115 series). With or without manual override for your various choices, please link our website: www.scvemotor.en.china.cn to get more details about our products. All of products are CE, TUV, ROHS, UL certificated.

Specifications:

SF92 M2

Model	Torque (N.M)	Rotating (rpm)	Rated Voltage (V)	Rated Frequency (Hz)	Rated Power (W)	Rated Current (A)	Limit Turns (turn)	Protection Index (IP)	Running Time (min)	Net Weight (KG)
SF92-140M2	140	12	230	50	580	2.6	12	IP44	≥4	13.5
SF92-180M2	180	12	230	50	626	2.6	12	IP44	≥4	13.5
SF92-230M2	230	12	230	50	830	3.6	12	IP44	≥4	13.5
SF92-250M2	250	8	230	50	850	3.7	12	IP44	≥4	14.6
SF92-280M2	280	8	230	50	860	3.75	12	IP44	≥4	14.6
SF92-300M2	300	8	230	50	880	3.8	12	IP44	≥4	14.6
SF92-330M2	330	8	230	50	910	4.0	12	IP44	≥4	14.6

Range of application: garage door, shop shutter, industrial door
