Contactless 13.56MHz Printable Plastic Smart Card for Parking

1.Printing   options

Offset printing(CMYK);

Silk screen printing(Panton Color);

Digital printing, inkjet printing, thermal printing;

- Hot stamp foil color ( gold, silver, laser red gold etc);

- ecurity logo printing;

- Hologram logo.

2. Size

- CR80: 2.125*3.375 inch (85.6*54 mm)or customized die cut shape;

- CR90: 3.63*2.37 inch ( 92.7*60.33mm)

- CR50: 88.9*43.69mm

- Thickness: Ultra-thin (without chip): 12mil(0.3mm), 14mil(0.36mm), 18mil(0.45mm),20mil(0.5mm);

- Thickness( with RFID Chip): 30mil(0.76mm), 24mil(0.6mm), 40mil (1.0mm);

3.   Surface Processing Craft

- Lamination Glossy, Frosted, Dump, Matt , Sport UV, Epoxy or others special request.

4.   Material

- PVC/PETG/PET/ABS/PLA

5.   Optional Crafts

- Embossing name, number and date ( gold or silver color for options);

Barcode, QR code, Signature panel, magnetic strip, scratch-off panel, UV ;

Numbering: laser, thermal, DOD, ink jet, Embossing

Scratch-off Panels

6.   Magnetic Stripes(LoCo/ HiCo)

1. Low   coactivity (LoCo) and High coactivity (HiCo) magnetic stripes.

Encode   data into track 1, 2, 3;

2.   Magnetic size : 8mm / 12.5mm;

7. Technique   Specification

Card Size: 85.6*54*0.76mm or Customized Size

Storage Temperature: -20~70 ℃

Operating Temperature: -20~70 ℃

Frequency: 125KHz/13.56MHz/860-960MHz

EEROM write time:  2.5ms

EEROM write endurance: 10,000cycles

EEROM data retention:  10years

Operating distance: LF: 2.5~5 cm; HF: 2.5~10 cm; UHF: 1-8 meters

Memory Capacity: 1KB,4KB,8KB ETC.

Read/Write: read and   write

8.   Application

Smart   Card, School ID Card, voter ID Card ,portrait ID Card, Contact IC card,

Key card,Portrait   card, PVC Card, Plastic card, VIP Card, Membership Card,

Gift   Card; Clear Card, Luggage Card, Discount card, Magnetic card,

Barcode   card, Phone card, Embossing card, CPU card, Identification card,

ID   cards, access card, student card, Pvc id card, Hotel Key Card, Transit Card,

Public   transportation card, health card, insurance card, access control card, super   marketing and ETC Card so on.

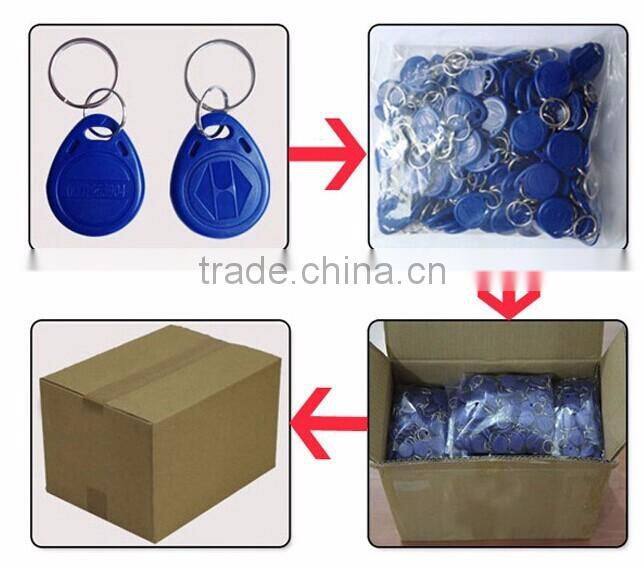

Box

200/box   (21.5*9.5*6cm),

100/box(12*9.5*6cm),   or customized

Carton

1000/carton(23.5*21.5*17.5cm)

1500/carton(30.8*22.9*14.6cm)

2000/carton(51*23.5*14.5cm)

3000/caron(51*23.5*20cm)

5000/carton(51*23.5*33.5cm)

Or   Customized

Weight

1000/6kg(   without chip), 8kg/6kg with chip.

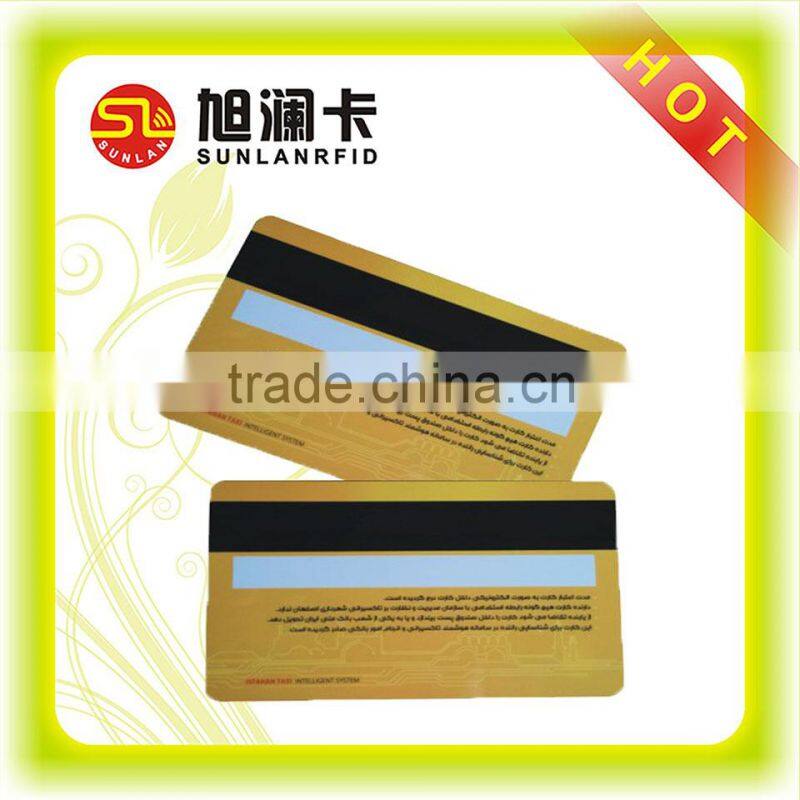

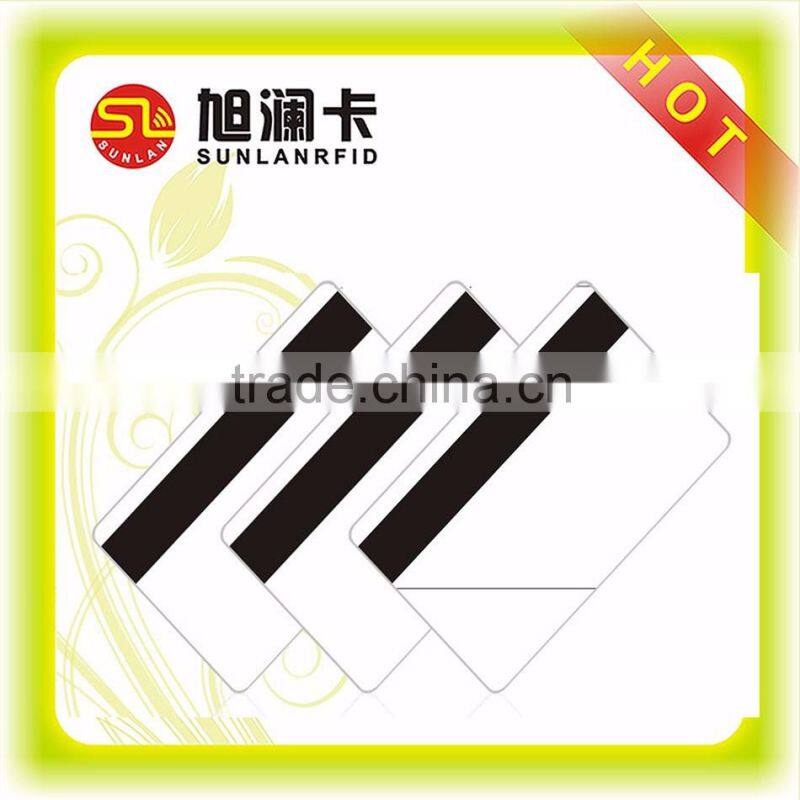

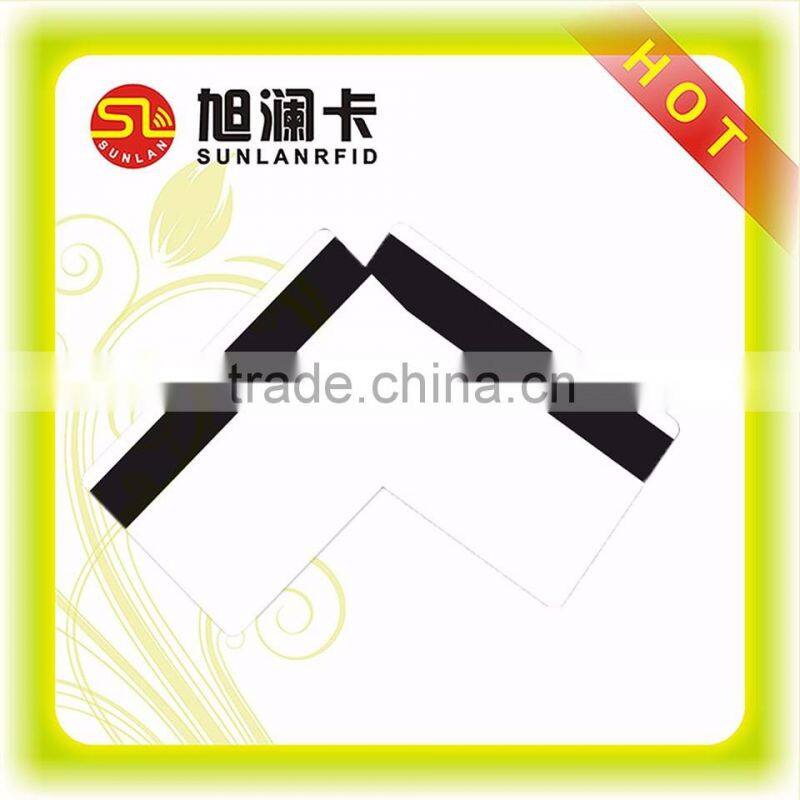

10.   Sample picture
