Model No.

THL

DESCRIPTION

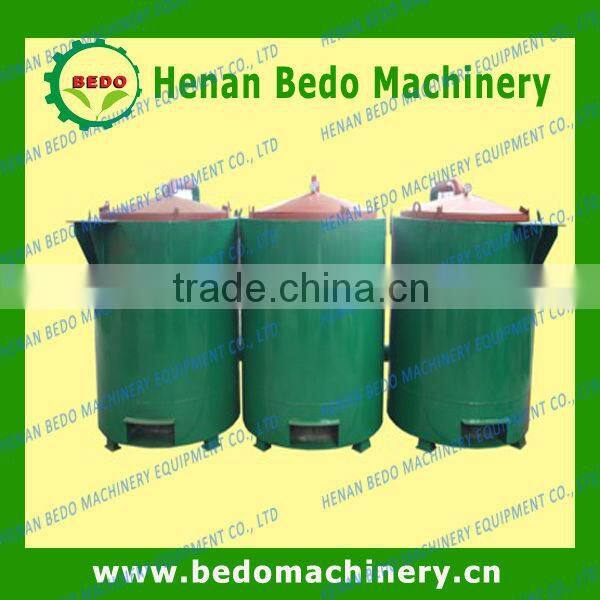

Carbonization   stove

TECHNICAL DATAS & FEATURES

power

exhaust fan (0.22kw, 2 phase,used for discharge the moisture
of the raw material

raw material could be

wood ,coconut shell, wood briquette, bamboo, almond shell, plam shell,

 final product

  wood charcoal , coconut shell charcoal and so on

 capacity

 wood (6- 8ton/24hour)  wood briquette (9-10ton/24hours),coconut shell (7-8ton/24hours)

 operation

 one people one shift ( one day two shift)

  carbonization time

  wood log ( 8-10hours). Wood briquette (8hours), coconut shell (6hours)

  energy  consumption

  20-30kg firewood or 15kg liquid gas .This type will save 30% payment

The stove include

3 outer stove,9 inner stoves,3smoking recycle tube, 3 purification tank, 1 five-ton hoisting equipment with E-hoist

introduction of the parts

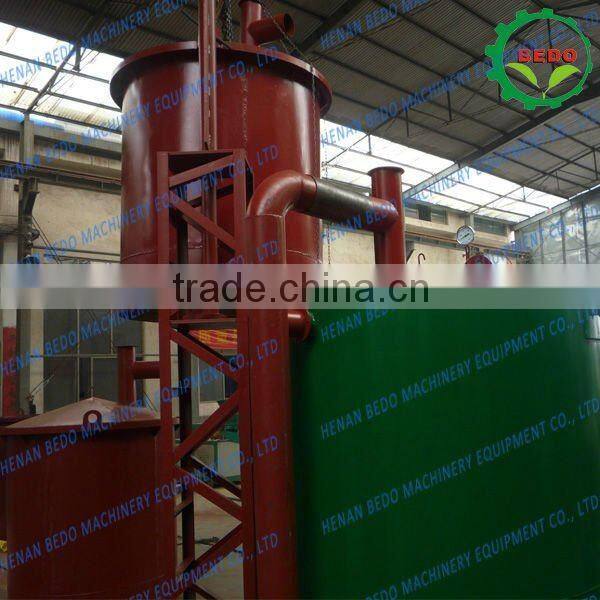

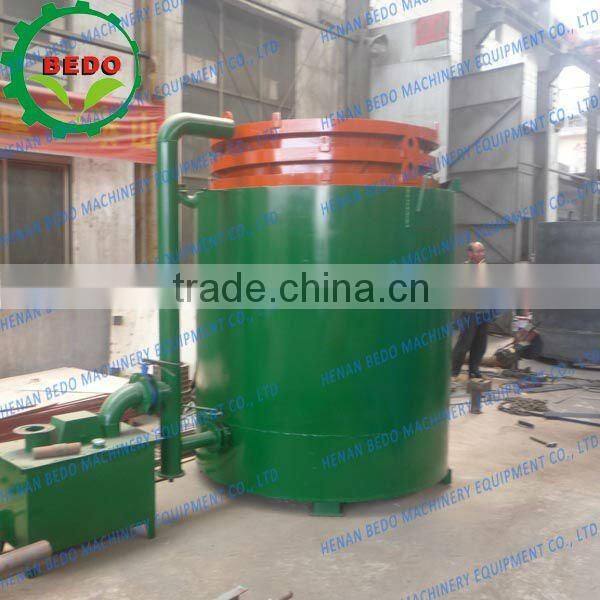

outer stove

includes heating room (for heating the stove), furnace body and heat-keeping layer (it is made of the heat insulating material, used for keep the heating)

inner stove

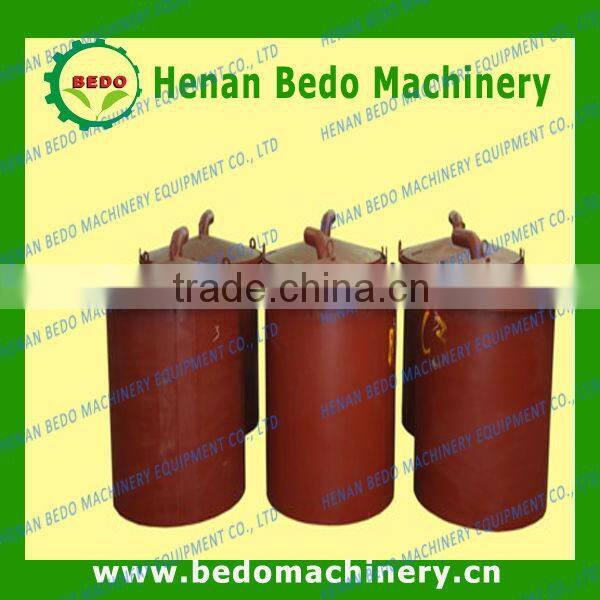

Consist of the stove tank body and the sealed top cap. Both of them are made of the heat resistance thermal steel. , and the three carbonization basket can be stack together, easy for loading and transporting ,and it will save a lot of space and transport charge.

smoking recycle tube

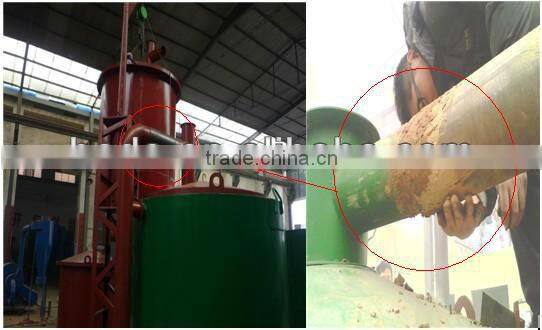

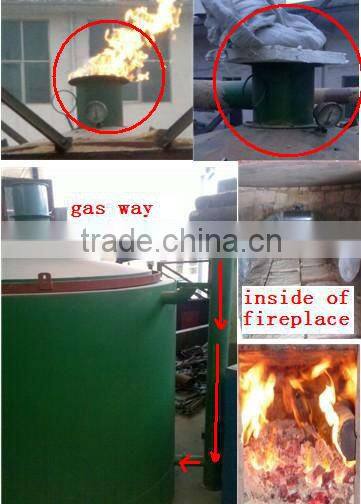

When during the process of carbonizing, there will be some smoke.( can be burning) the smoke can return to the furnace through tube for purifying, after purification , the combustible smoking can be flow into the heating room of the outer stove for heating the stove again,

purification tank

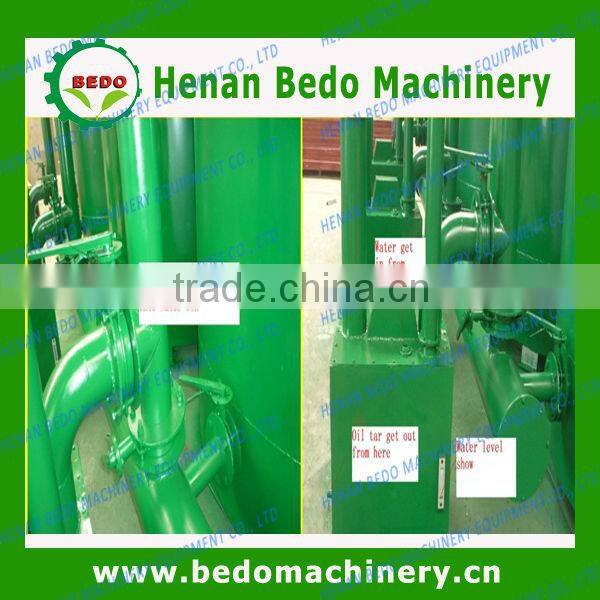

This system is consisting of purification tank and the exhaust-heated cycle pipe. And Smoking purification tank are used for purify the smoking (can not Burning) and filter thewood tar. The smoking through the purification tank will Become water vapor, and it will not pollute the air.

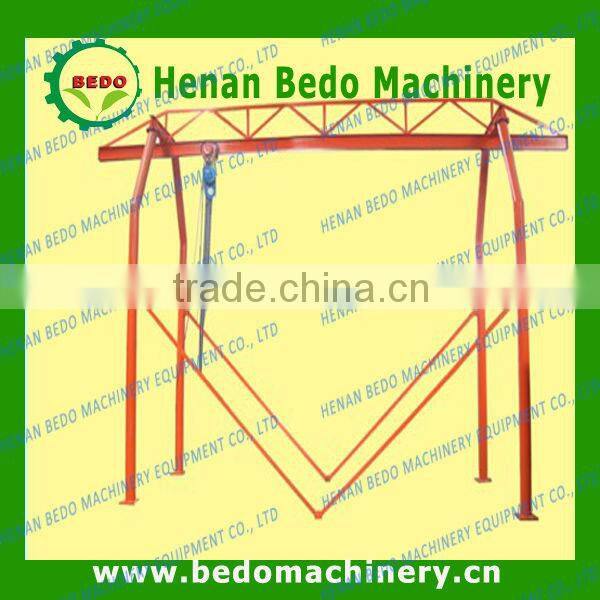

hoisting equipment

it include the steel hoisting frame and the E-hoist .And it is easy for loading and unloading the stove, and can reduce labor intensity, and it can be avoid the high-temperature burn when lift the carbonization basket

picture of different parts
