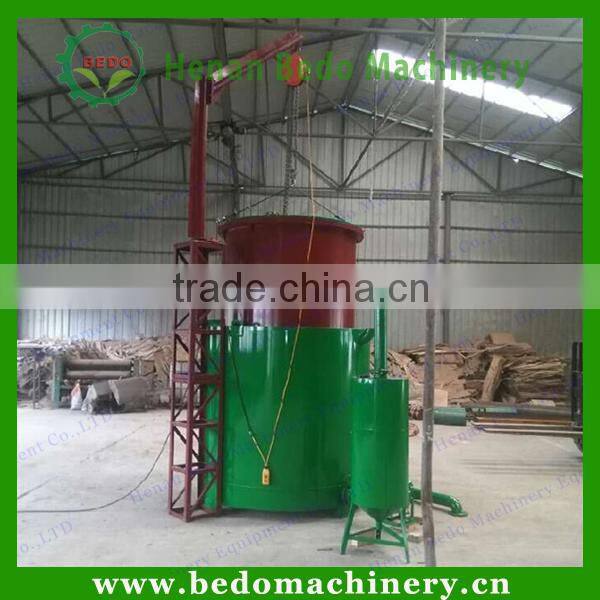

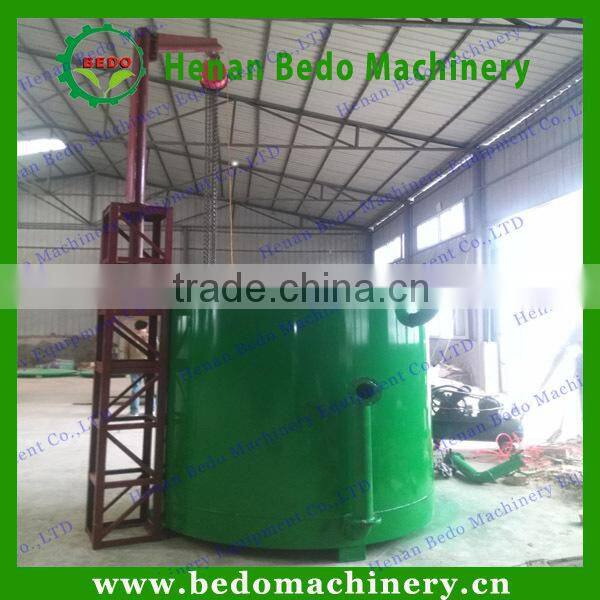

High Carbonization Rate Wood Coconut Shell Charcoal Production Kiln for Sale

Specification:

High carbonization rate wood coconut shell charcoal production kiln for sale

1. No smoke, energy saving.

2. Electric hoist is available.

3. Temperature for charcoal: 420-480 °C

4. CE approved charcoal production kiln

High carbonization rate wood coconut shell charcoal production kiln for sale

 What is the introduction of our wood coconut shell charcoal production kiln?

1. This wood coconut shell charcoal production kiln can carbonize wood log, wood briquette, coconut shell and bamboo into good quality charcoal.

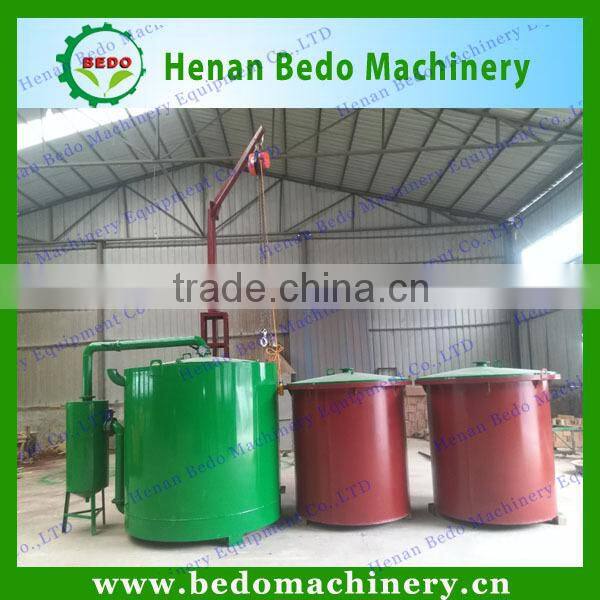

2. It is designed with one outer stove, three inner stoves, one electric hoist and one clean system.

3. Its carbonizing speed is 2.5-3T/24hrs for dry wood with moisture less than 8% or wood briquettes.

What is the specification of our wood coconut shell charcoal production kiln?

What are the advantages of our wood coconut shell charcoal production kiln?

1. Easy to operate and maintain, more safety, energy saving.

2. High carbonization rate, no smoking, little pollution, high efficiency.

3. Newly developed carbonization stove, which can dry the materials with the superfluous energy produced in the process of carbonization, 6-8 hours per stove and can work continuously.

4. The tube of fume extraction will recycle the gas flow which come from the inner stove during the carbonizing process for continually warming the stove, and it will save 70% energy consumption and recycle 95% smoke.

What is the working principle of wood coconut shell charcoal production kiln?

Put the raw material into the inner stove, hoist it into the outer stove for carbonizing, when one inner stove finished the carbonization, hoist out for natural cooling and then hoist the second inner stove into the outer stove for carbonizing, the similar process for the third inner stove.

Three inner stoves continuously work in turn to improve the productivity, with smoke clean system to protect the environment.

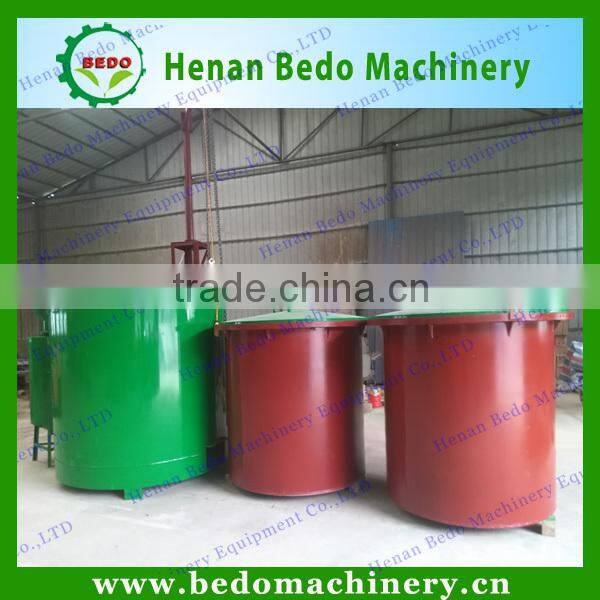

Structure of the wood coconut shell charcoal production kiln

1. Outer stove

The outer stove consists of three parts: heating chamber, stove body and the heat preservation layer.

The raw material of outer stove is heat resistant steel plate and heat preservation refractory materials.

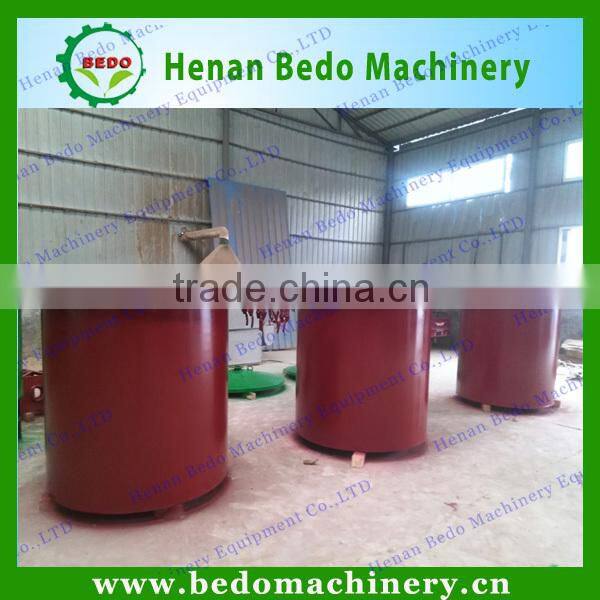

2. Inner stove

The inner stove consists of stove body and the sealing top cap. The material of inner stove is heat resistant steel plate and special steel boiler plate. And the steel plate thickness is 8mm.  The three inner stoves can be stacked in the outer stove together, which will save a lot of space and reduce the freight cost.

3. Exhaust smoke pipe

In the process of carbonizing, some smoke will be produced. The combustible smoke can return to the furnace through purifying tube. The purified combustible smoke can flow into the heating chamber of the outer furnace for heating the stove again.

4. Clean system

This system includes purification tank and heat exhaust cycle pipe. The clean system is designed to purify the incombustible smoke and filter the wood tar. In the process of carbonizing, first come out is smoke with bad smell. The clean system internal has floating cold water, when the hot smoke meets the cold pipe, the smoke will become water vapor, thus it will not pollute the air.

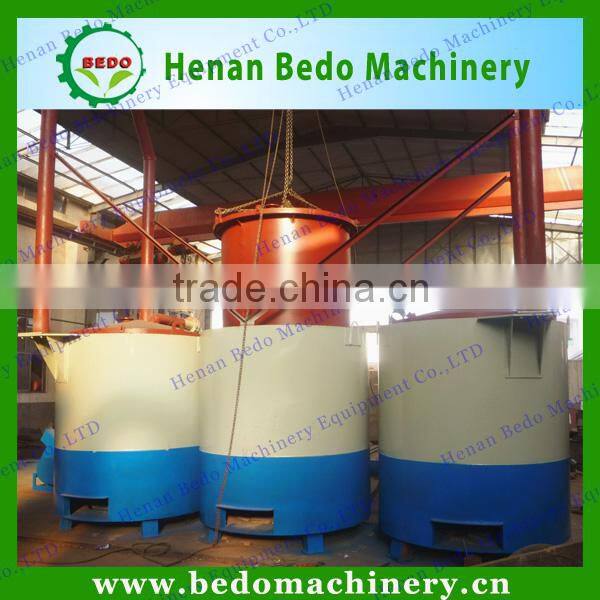

Other models of the wood coconut shell charcoal production kiln

New design charcoal production kiln with liquefied gas burner

Two sets connected charcoal production kiln

Three sets connected charcoal production kiln

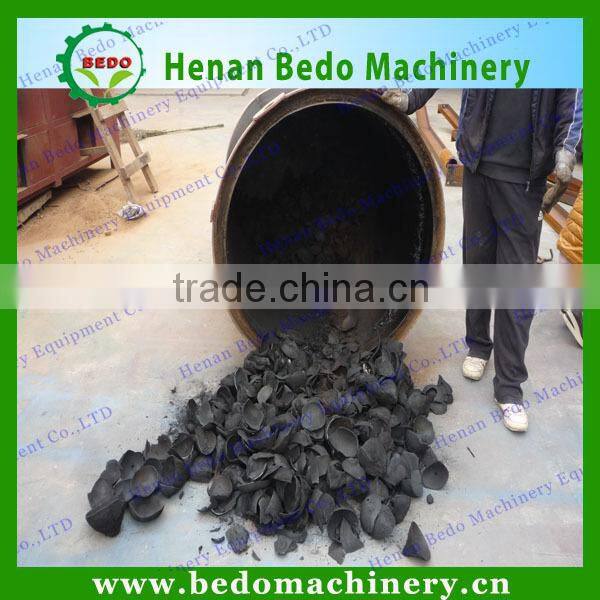

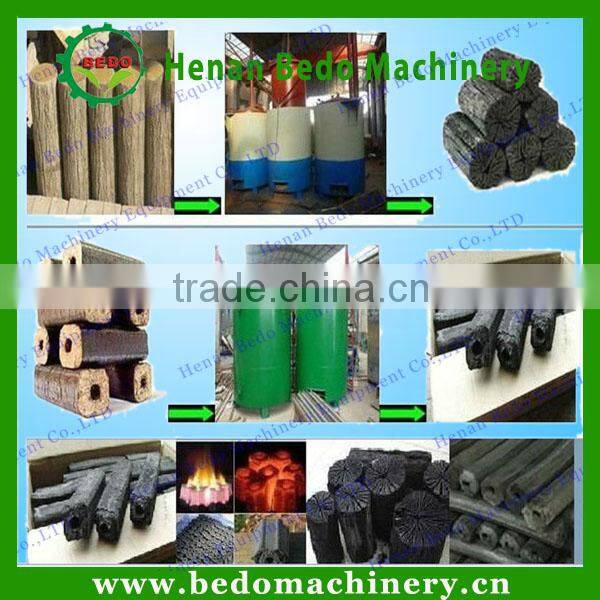

Final charcoal from our  wood coconut shell charcoal production kiln

Wood log charcoal, wood briquette charcoal

Coconut shell charcoal

 Why choose us?

1. We have more than 10 years' manufacturing experience in wood working machinery industry.

2. We have exported our products to more than 30 countries all over the world.
3. All of our machines are built in with the most advanced technology.
4. Our R&D team have rich experience in researching, designing, testing and installing machines.
5. Our sales team provide 7x24-hour online or Email service.

About us

Henan Bedo Machinery Equipment Co., Ltd. is specialized in the production of all kinds of woodworking machinery for many years.

Main Business scope: Wood Chipper, Wood Crusher, Sawdust Dryer, and Biomass Pellet Machine, Charcoal Kiln, Wood Briquette Machine, Fish Feed Extruder Machine, etc.

With more than 10 years manufacturing experience and 5 years export experience, BEDO products have been exported to Russia, India, Malaysia, Indonesia, East Europe, South America and some other countries and regions.

In addition, “BEDO GROUP” not only provides customers with high quality products, but also provides first-class after-sales service and OEM service. Bedo group will create a bright future together with all the friends all over the world.

Other related products

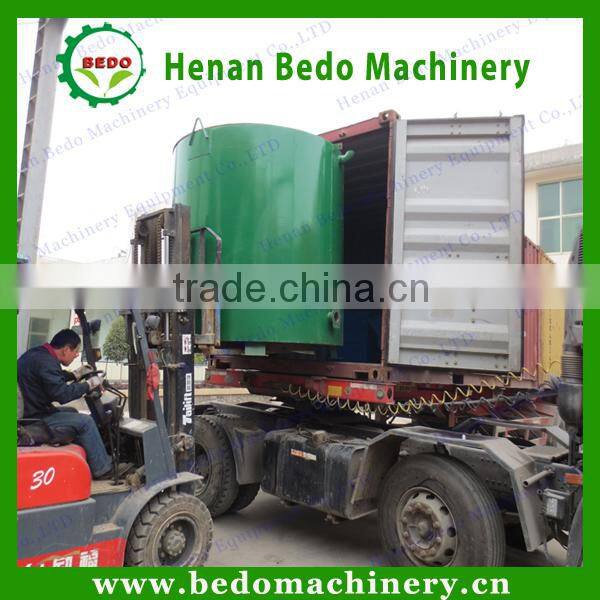

What is the packaging, shipping and payment term?

Packaging

For one set  charcoal production kiln, it is packed by waterproof cloth, then packed in the container.

For more than two sets charcoal prodution kiln, it is nude packing, packed in the full container.

Shipping

3. Delivery  time: Within 7-10 days for single machine after getting the down payment; 25-35 days for the whole production line after getting the down payment.

Q1: What is the usage for the clean system?

A1: In the carbonizing process, first come out is steam with bad smell. The clean system inside with floating cold water, when the hot steam meet the cold pipe, the steam will turn to water, thus the steam and bad smell will reduce much.

Q2: What is the most suitable temperature for carbonizing?

A2: The temperature should be 420-480 °C

Q3: What is the power for the electric hoist?

A3: In general, its power is 0.5kw, three phrase, 380V, 50Hz. If your voltage is different with ours, our technician can custom made the motor for you.

Q4: Can i get some discount if i buy this machine from your company?

A4: Yes. We will give you the most favourable price; if buy more than two sets, the big discount will be given.
