Home > Products > Electrowinning > 2000A IGBT dc rectifier for electroplating, electrolysis, anodizing

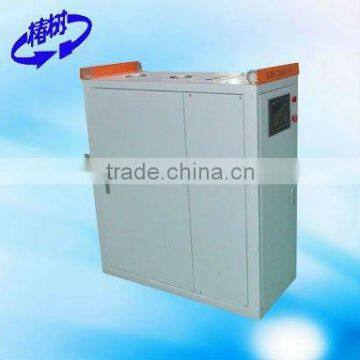

2000A IGBT dc rectifier for electroplating, electrolysis, anodizing
Negotiable
/ Unit
1 Unit(Min. Order)
- Xingang Tianjin
- T/T Credit Card
You May Like
-
10000A IGBT dc rectifier for electroplating, electrolysis, anodizing
-
7000A IGBT dc rectifier for electrochemical, electrolysis, anodizing
-
400A DSP dc rectifier for electrochemical, electrolysis, anodizing
-
DSP dc rectifier with IGBT module for electrochemical, electrolysis, anodizing
-
3000A DSP dc rectifier with IGBT module for electrochemical, electrolysis, anodizing
-
5000A DSP dc rectifier with IGBT module for electrochemical, electrolysis, anodizing
Product Details
| Place of Origin | Beijing, China | Brand Name | Chunshu | |
| Model Number | IGBS | Output Power | 1 - 200KW | |
| Output Type | Single | Weight | 30-1000Kg | |
| Input Voltage | 380V or 440V | Output Voltage | 0-1000V | |
| Type | Other, AC-DC rectifier | Output Frequency | 10-25KHz | |
| Output Current | 0-10000A |
Product Description
Specifications
1. DC output current:0-20000A;voltage: 0-1000V2. ISO9001:2008
3. 2-year warranty
4. 52 years rectifier manufacturer
1. Application
- Electrolysis: Copper, Zinc, Tin, Lead
- Aluminum foil, copper foil production
- Electrochemical machining
- Anodizing: anodizing, hard anodizing
- Plating
2. Main technical parameters
Input | 3Φ380V(±10%),50Hz |
Rated output current | 0~2000A |
Rated output voltage | 0~1000V |
Regulation | current and voltage constant |
Efficiency | 89%-96% |
Control range | 0~100% |
Operation mode | Continuously long time |
Ripple | <5% |
Relatively humidity | ≤30%(20±5°C) |
Finishing | RAL7032 |
Voltage regulation mode | IGBT PWM control |
Precision | 1% |
3. Cooling method
- Water cooling
- Wind cooling/forced air cooling
- Oil cooling
4. Control and display
- DSP digital control, applied software copyright
- Constant current/constant voltage
- Local/remote control
- Touch screen
