T2-T5 SPCC/MR Grade Tinplate Etp

Specification of tinplate :

1) Capacity: about 58,000 tons per year for tin plate products.
2) Standard: Passiviation 300 & 311, EN10202, EN10203, JIS G3303, ASTM A624, ASTM626
3) Raw material: MR, SPCC
4) Thickness: from 0.18mm to 0.50mm, all available
5) Width: from 200mm to 1050mm, all available
6) Hardnss:T2, T3&T4
7) Tin coating weight: 1.1g/m2-8.4g/m2
8) Surface: bright finish, stone, super stone, matte, silver
9) Min trial order: 5 tons per each thickness, 1x20' per delivery Steel Type
10) Steel Type

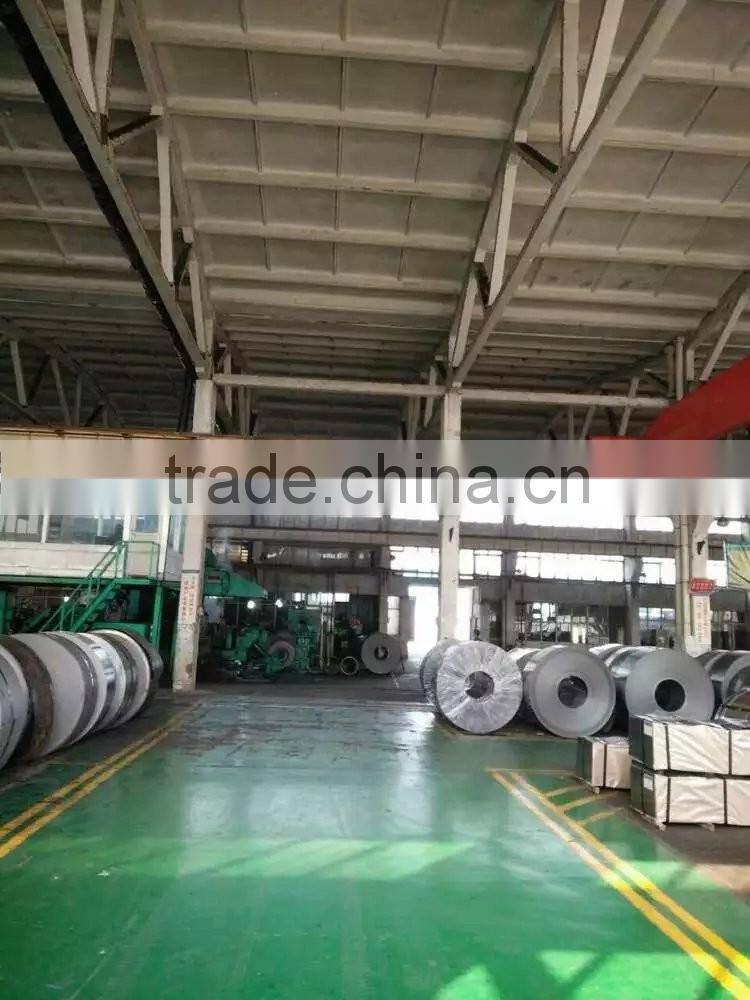

Facility of tinplate :

Tin Coating Weight:

*Notes:
1. A slash of normal coating weight distinguishing the difference of tin coating weights on both sides. The left number of a slash means the top side coating weight of tinplate; the right number of a slash means the bottom side coating weight of tinplate.
2. The following designations and marking are used for differentially coated tinplate.
a) A: stands for the thick side of tinplate, eg. 2.8/5.6A means tin coating weight is 5.6g/m2 on the thick and bottom side.
b) D: stands for thin side of tinplate, eg. D2.8/5.6 means tin coating weight is 2.8g/m2 on the thin and topside.

Coating Structure:

Features of tinplate:

• Beautiful Appearance:
• Excellent Paintability & Printability
• Excellent Formability & Strength
• Excellent Corrosion Resistance
• Excellent Solderability & Weldability


Applications of tinplate :

• Cans and Containers: cans for foods and beverages, containers for oils, grease, paints, polishes, chemicals, aerosol and many other products.
•  Electronics: electrodes, cable tape, magnetic screen covers, etc.
•  Engineering: automotive oil filters, automotive air filters, gaskets, etc.
• Constructions: Gas meter internal components, heat exchangers, cookware, shelving, etc.

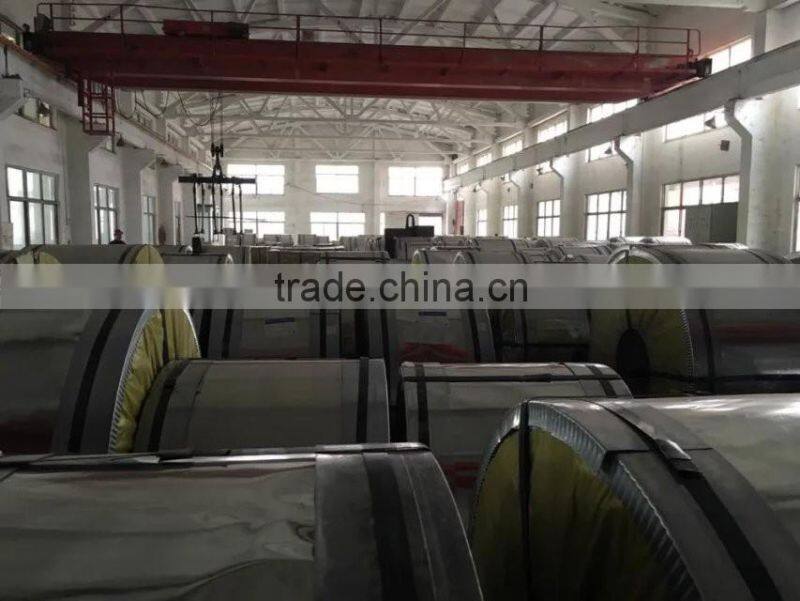

Our Tinplate Coil Products & its packing :
