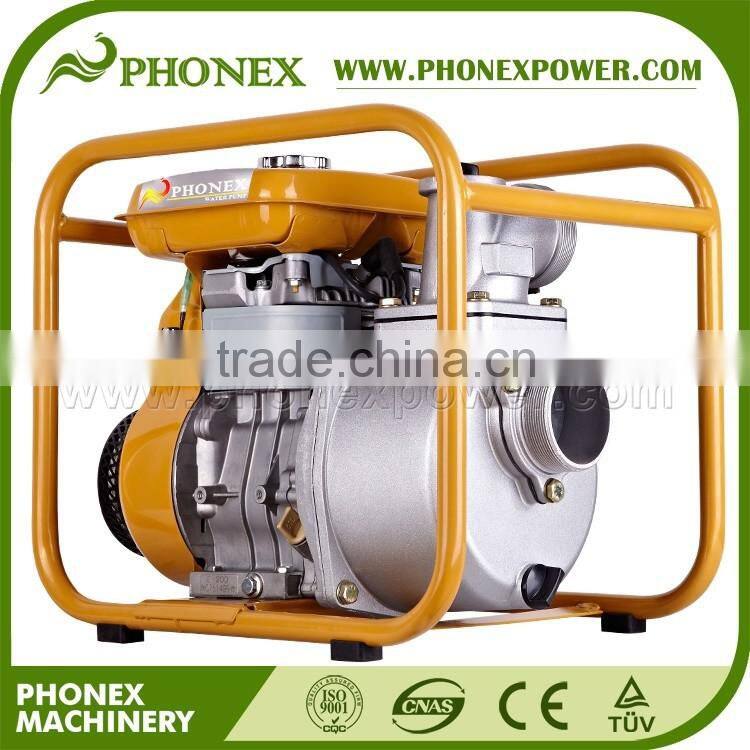

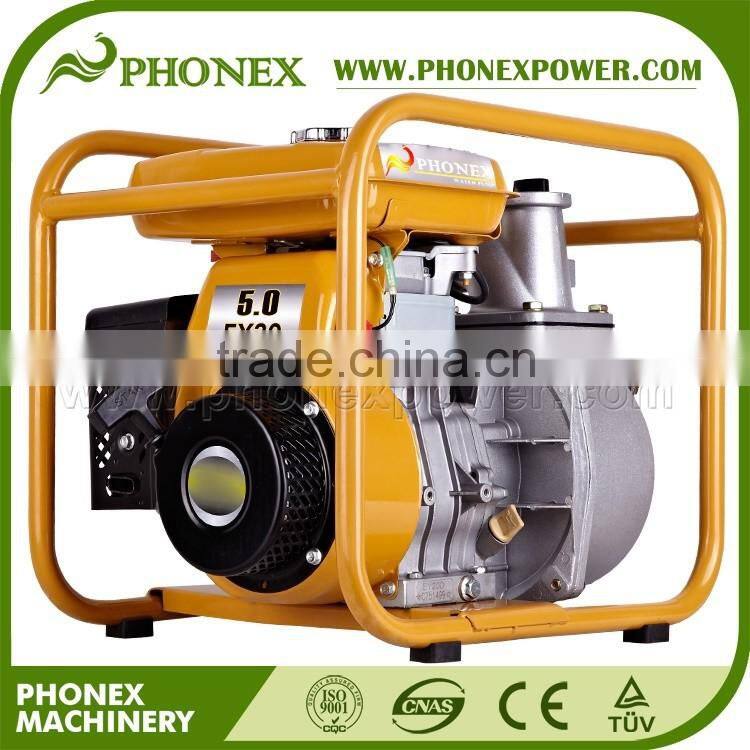

EY20 5HP ROBIN Type Water Pump PTG310
US$ 88 - 98
/ Set
100 Sets(Min. Order)
- NINGBO
- T/T Credit Card
You May Like
-
ECOSHIN 4HP Engine 2 Inch Gasoline Water Pump WP20
-
Japan GX160 3 Inch SEH 80X Gasoline Water Pump
-
Phonex (China) Cheap Price GX390 13HP 4 Inch Gasoline Water Pump for Agriculture Irrigation
-
Phonex (China) 13 HP Agriculture Water Pump Gasoline 4 Inch for Sale
-
Phonex (China) 3 Inch 5.5hp Honda Engine Gasoline Water Pump WP30
-
China PHONEX Low Price Self-priming 3inch 3" Gasoline Dirty Water Pump
Product Details
| Place of Origin | Zhejiang, China | Brand Name | PHONEX | |
| Model Number | PTG310 | Theory | Centrifugal Pump | |
| Structure | Gear Pump | Usage | Water | |
| Power | Other, Gasoline Engine | Standard or Nonstandard | Standard | |
| Fuel | Gasoline | Pressure | Low Pressure | |
| Application | Other, Irrigation |
Product Description
Product Overviews
| Gasoline Water Pump | ||||
| Model | WP15 | WP20 | WP30 | WP40 |
| Outlet Size(mm) | 40 | 50 | 80 | 100 |
| Inlet Size(mm) | 40 | 50 | 80 | 100 |
| Speed (rpm) | 3600 | |||
| Q. max(m3/h) | 27 | 21 | 60 | 80 |
| H. max (m) | 20 | 30 | 30 | 25 |
| Suction(m) | 7 | 7 | 7 | 7 |
Maximum Power Output (HP) | 2.5 | 5.5 | 6.5 | 11 |
| Engine Model | PH154 | PH168F | PH168-1 | PH188 |
| Bore x Stroke (mm) | 52x38 | 68x45 | 68x54 | 88x64 |
| Displacement (cc) | 80.7 | 163 | 196 | 389 |
| Compresslon Ratlo | 7.7: 1 | 8.5: 1 | 8.5: 1 | 8.2: 1 |
| Maximum Power Output | 1.7kw/4000rpm | 4.0kw/3600rpm | 4.8kw/3600rpm | 9.6kw/3600rpm |
Recommended Power Using | 1.65kw/3600rpm | 3.4kw/3600rpm | 4.0kw/3600rpm | 8.6kw/3600rpm |
| Maximum Torque | 4.2N. M/3200RPM | 10N. M/2500RPM | 11N. M/2500RPM | 26.5N. M/2500RPM |
| Ignition System | Non-contact transistorized(TCL) | |||
| Engine type | Single cylinder, Air-cooled, 4-stroke | |||
| Starting System | Manual | Recoil and hand-operated/Eletric start | ||
| Air Cleaner | semi-dry oil bath type | |||
| Fuel tank Capacity (L) | 1.6 | 3.6 | 3.6 | 6.5 |
| Fuel Consumption(L) | ≤ 450g/kw/h | ≤ 395g/kw/h | ≤ 395g/kw/h | ≤ 395g/kw/h |
| oil Capacity (L) | 0.37 | 0.6 | 0.6 | 1.1 |
| Net Weight(kg) | 18 | 27 | 30 | 47 |
| Dimensions LxWxH(mm) | 450x340x355 | 480x370x415 | 520x390x460 | 615x445x52 |
