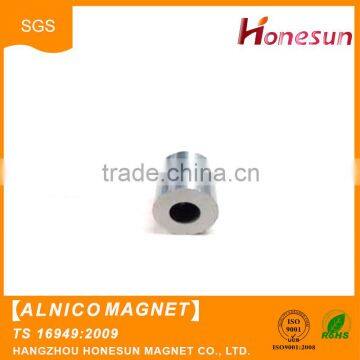

Spot wholesale Component bar Cast sintered Alnico magnet

FOB Price

USD $0.001 - $100 / Piece

1 Piece(Min.Order)

Supply Ability 50 Ton / Tons per Month
Port Shanghai/Ningbo or customer required port
Payment TermsT/T L/C D/P D/A Credit Card PayPal

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Place of Origin	Zhejiang, China	Brand Name	Honesun
Model Number	HS-Al0001 series	Type	Other, Permanent, cast alnico magnet
Composite	Other, AlNiCo Magnet, Aluminum,Nickel,Cobalt	Shape	Other, Other, Block/Rectangular,Disc,Bar,Ring,Segment,ect

Product Description

Description:	Spot wholesale Component bar Cast sintered Alnico magnet
Material:	Aluminum-Nickle-Cobalt-Iron
Product Name:	Alnico Magnets, Cast Alnico Magnet, Sintered Alnico Magnet,

Working Temperature:	Grade	Temperature
	LN10-LN12	450ºC
	LNG34-LNG60	525ºC
	LNGT18-LNGT80	550ºC
	FLNG10-FLNG12	450ºC
	FLNGT18-FLNGT20	550ºC
	FLNG34-FLNGT28	525ºC
	FLNGT36J-FLNGT48	550ºC
	B-LNG7-B-LNG8	200ºC
Magnet Shapes and Sizes:	Disc,Cylinder,Block,Ring,Countersunk,Segment,Trapezoid and Irregular shapes and more.Customized shapes are available


Features:	An ideal material in high temperature applications, which has high operating temperature up to 550°C and above, with excellent corrosion resistance. They can become partially demagnetized if they come in contact with other ferrous materials, special care is required during handling and storing. Usually cast and grinded during production, they are available in various grades depending on its application. Others such as sintered Alnico have lower magnetic properties but offer higher mechanical characteristics.



Applications:	Cast Alnico Magnet: automobile parts, instrumentation, electroacoustics, motor, teaching and aerospace military, etc Sintered Alnico Magnet: instrumentation, communication, magnetoelectricity switch and various sensors, etc.

CAST ALNICO
Grade	MMPA	Br	Hcb	(BH)max	Tc	Tw	T.C.α(Br)	T.c.α(Hcj)	Density
		mT/Gs	Ka/m/Oe	Kj/m3/MGOe	°C	°C	%/°C	%/°C	g/cm3
		Typical	Typical	Typical	Typical	Typical	Typical	Typical
LN10	ALNICO3	600/6000	40/500	10/1.25	750	550	-0.02	-0.03~-0.07	6.9
LNG10	ALNICO3	600/6000	44/550	10/1.25	750	550	-0.02	-0.03~-0.07	6.9
LNG12	ALNICO2	700/7000	44/550	12/1.50	800~850	550	-0.02	-0.03~-0.07	7.1
LNG13	ALNICO2	680/6800	48/600	13/1.63	800~850	550	-0.02	-0.03~-0.07	7.1
LNG16	ALNICO4	800/8000	48/600	16/2.00	800~850	550	-0.02	-0.03~-0.07	7.3
LNG18	ALNICO4	900/9000	48/600	18/2.25	800~850	550	-0.02	-0.03~-0.07	7.3
LNG37	ALNICO5	1200/12000	48/600	37/4.63	800~850	550	-0.02	-0.03~-0.07	7.3
LNG40		1230/12300	48/600	40/5.00	800~850	550	-0.02	-0.03~-0.07	7.3
LNG44		1250/12500	52/650	44/5.50	800~850	550	-0.02	-0.03~-0.07	7.3
LNG48	ALNICO5DG	1280/12800	56/700	48/6.00	800~850	550	-0.02	-0.03~-0.07	7.3
LNG52	ALNICO5DG	1300/13000	56/700	52/6.50	800~850	550	-0.02	-0.03~-0.07	7.3
LNG56	ALNICO5-7	1300/13000	58/720	56/7.00	800~850	550	-0.02	-0.03~-0.07	7.3
LNG60	ALNICO5-7	1330/13300	60/750	60/7.50	800~850	550	-0.02	-0.03~-0.07	7.3
LNGT28	ALNICO6	1000/10000	56/700	28/3.50	800~850	550	-0.02	-0.03~-0.07	7.3
LNGT30	ALNICO6	1100/11000	56/700	30/3.75	800~850	550	-0.02	-0.03~-0.07	7.3
LNGT18	ALNICO8	580/5800	80/1000	18/2.25	800~850	550	-0.02	-0.03~-0.07	7.3
LNGT32		800/8000	100/1250	32/4.00	800~850	550	-0.02	-0.03~-0.07	7.3
LNGT38		800/8000	110/1380	38/4.75	800~850	550	-0.02	-0.03~-0.07	7.3
LNGT44		850/8500	115/1450	44/5.50	800~850	550	-0.02	-0.03~-0.07	7.3
LNGT48	ALNICO8HE	900/9000	120/1500	48/6.00	800~850	550	-0.02	-0.03~-0.07	7.3
LNGT60	ALNICO9	900/9000	110/1380	60/7.50	800~850	550	-0.02	-0.03~-0.07	7.3
LNGT72		1050/10500	112/1400	72/9.00	800~850	550	-0.02	-0.03~-0.07	7.3
LNGT80		1080/10800	120/1500	80/10.00	800~850	550	-0.02	-0.03~-0.07	7.3
LNGT88		1100/11000	115/1450	88/11.00	800~850	550	-0.02	-0.03~-0.07	7.3
LNGT96		1150/11500	118/1480	96/12.00	800~850	550	-0.02	-0.03~-0.07	7.3
LNGT36J	ALNICO8HC	700/7000	140/1750	36/4.50	800~850	550	-0.02	-0.03~-0.07	7.3
LNGT48J		800/8000	145/1820	48/6.00	800~850	550	-0.02	-0.03~-0.07	7.3
LNGT52J		850/8500	140/1750	52/6.50	800~850	550	-0.02	-0.03~-0.07	7.3

SINTERED ALNICO
SINTERED ALNICO
Grade	MMPA	Br	Hcb	(BH)max	Tc	Tw	T.C.α(Br)	Density
		mT/Gs	Ka/m/Oe	Kj/m3/MGOe	°C	°C	%/°C	g/cm3
		Typical	Typical	Typical	Typical	Typical	Typical
FLN8	S.ALNICO3	500/5000	40/500	8/1.00	760	450	-0.022	6.9
FLNG12	S.ALNICO2	700/7000	48/600	12/1.50	810	450	-0.014	7.1
FLNGT18	S.ALNICO7	600/6000	90/1130	18/2.20	860	450	-0.02	7.3
FLNG34	S.ALNICO5	1200/12000	48/600	34/4.25	890	450	-0.016	7.3
FLNGT28	S.ALNICO6	1050/10500	56/700	28/3.50	850	450	-0.02	7.3
FLNGT38	S.ALNICO8	800/8000	120/1500	38/4.75	850	450	-0.02	7.3
FLNGT42	S.ALNICO8	880/8800	120/1500	42/5.25	820	450	-0.02	7.3
FLNGT33J	S.ALNICO8HC	700/7000	140/1750	33/4.13	850	450	-0.025	7.3
FLNGT36J	S.ALNICO8	700/7000	140/1750	36/4.50	850	450	-0.025	7.3
