Home > Products > COB Graphic lcd module > custom make LCD module
custom make LCD module
- Shenzhen
- T/T Credit Card
You May Like
Product Details
| Place of Origin | Guangdong, China | Brand Name | Crystal-Run | |
| Model Number | JR-G19264B | Type | Graphic |
Product Description

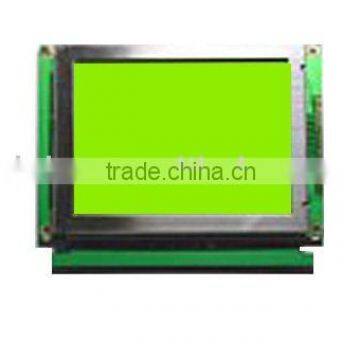

192x64 dot graphic lcd display module
DISPLAY CHARACTERISTICS
| item | Value |
| LCD Display Mode | STN/Y-G Positive,Transflective |
| View Angle | 6:00 |
| Driving Method | 1/64 Duty,1/9Bias,10.5V |
| Backlight | yellow-green |
MECHANICAL DATA
| item | Value |
| Outline(mm) | 130.0 x65.0x13.5 |
| Viewing Area(mm) | 122.0 x92.0 |
| Active Area(mm) | 97.87x32.59 |
| Dot Pitch(mm) | 0.51x0.51 |
| Dot Size(mm) | 0.46 x0.46 |
ABSOLUTE MAXIMUM
| item | Value |
| Operation Voltage(v) | 0-5.5 |
| Operation temperature | -20-70°C |
| Storage Temperature | -30-80°C |
operations
1. It is essential to drive the lcd with the specified voltage limits, since a higher driving voltage than allowed causes a shorter lcd liftime.
2 The response time of the lcd liquid is considerably longer at low temperature than in the normal operting temperature range .On the other hand ,the lcd will show a dark blue colour at high temperatures .Those phenomena do not indicate a malfunction or defect of the lcd. Back at normal temperature ,the lcd will return to its original behavior .
Competitive advantages :
1 reasonable price
2 ROHS compliant
3 sample available as request
4 long life span: 10 years
5 MOQ orders can be negotiated
Anything ,please feel free to contact me !
