Home > Products > COB Character lcd module > Character STN lcd module 16x2

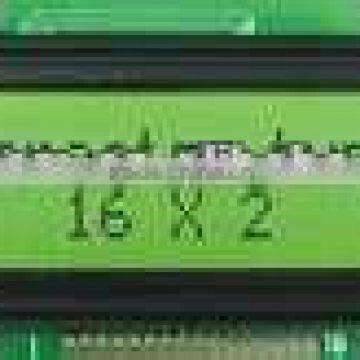

Character STN lcd module 16x2
- 100000 Piece / Pieces per Month
- shenzhen
- T/T Credit Card
You May Like
Product Details
| Place of Origin | Guangdong, China | Brand Name | Crystal Run | |
| Model Number | JR-C162F | Type | COB |
Product Description
Specifications
Character STN lcd module 16x21.Fast delivery
2.reasonable price and best service
3.customize is welcome
4.excellent quality
Character STN lcd module 16x2
| ITEM | DESCRIPTION |
| lcd size | 85*30.0*13.0mm |
| Viewing Area(mm) | 64.5*16.0 |
| Active Area (mm) | 57.7*9.40 |
| DOT Pitch(mm): | 0.60*0.55 |
| DOT Size(mm): | 0.55*0.50 |
| LCD Display Mode | STN, Positive, Transflective |
| View Angel | 6 o'clock |
| Driving method | 1/16 Duty, 1/5 Bias |
| Blacklight | Y-G |
| Operation Temperature | -10~+50°C |
operations
1. It is essential to drive the lcd with the specified voltage limits, since a higher driving voltage than allowed causes a shorter lcd liftime.
2 The response time of the lcd liquid is considerably longer at low temperature than in the normal operting temperature range .On the other hand ,the lcd will show a dark blue colour at high temperatures .Those phenomena do not indicate a malfunction or defect of the lcd. Back at normal temperature ,the lcd will return to its original behavior .
Competitive advantages :
1 reasonable price
2 ROHS compliant
3 sample available as request
4 long life span: 10 years
5 MOQ orders can be negotiated
Anything ,please feel free to contact me !
