Fluorine Plastic Automatic Magnetic Pump,cuastic Soda Pump
- Shanghai
 - T/T L/C D/P D/A Credit Card PayPal

You May Like
Product Details
| Place of Origin | Anhui, China | Brand Name | SBMC | |
| Model Number | CQB | Theory | Centrifugal Pump | |
| Structure | Single-stage Pump | Usage | Other, Acids & lyes/Metal Pickling/Rare-earth separation | |
| Power | Electric | Standard or Nonstandard | Standard | |
| Fuel | Other, Motor | Pressure | Other, ≤1.6Mpa | |
| Application | Other, Chemical and petrochemical industries/Dyes/Agricultural chemicals |
Standard export packing or according to customers' requirement.
Product Description

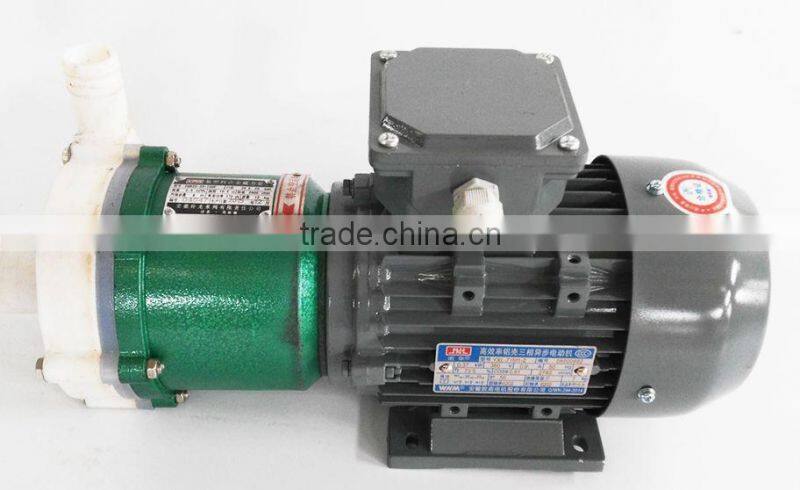

Product Image
Economic and Reliable Design Features
- Leak-proof design.

Sealless Teflon lined magnetic drive pump, driven by magnetic coupling indirectly, motor shaft and pump chamber is completely sealed, avoid pump leakage problem and use site pollution.
- Anit-corrosive

Wetted part material is PTFE fused with FEP, can transfer low and high concentration acid, alkali, strong oxidizer etc corrosive liquid.
- Low maintenance costs and long service life.

Cost-intensive wearing parts are canceled by the seal-less method of construction, therefore, reduced maintenance costs and long service life. The structure is tightly, safety, and energy-saving.
Characteristic analysis
0.1 Patent advantage
Patent no.  | The name of the patent  | The patent type  | Available Date  |
ZL200820038728.3  | Can assembly type magnetic drive pump  | The patent for utility model  | 08/Aug./2008-07/Aug. 2018  |
ZL200820038729.8  | New Type Teflon Magnetic Drive Pump  | The patent for utility model  | 08/Aug./2008-07/Aug. 2018  |

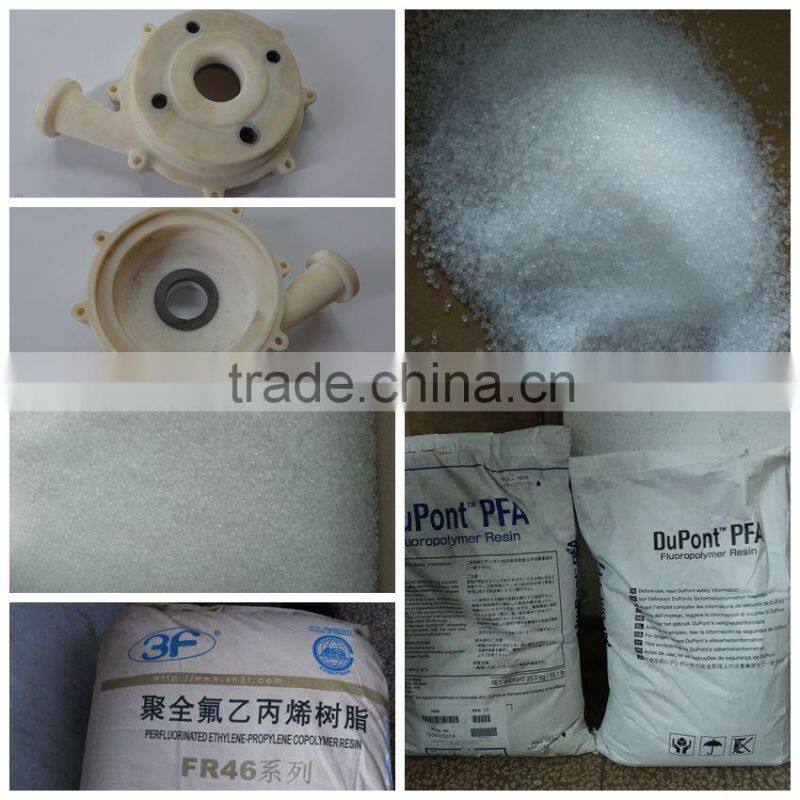

0.2 Material advantage
- Qualified Virgin Fluoroplastic

PTFE, FEP, PFA are qualified large manufacture production, safe and secure plastic , has good stability, safety and environmental protection. Please ease of use

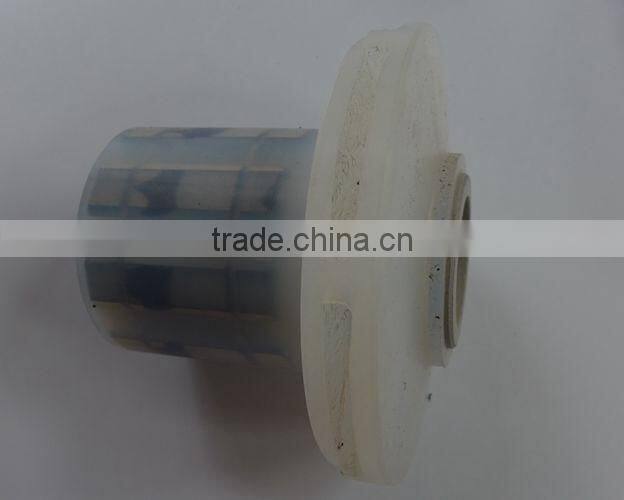

0.2 Impeller Advantage
Closed impeller with flow-optimized vane channels: for high efficiency and low NPSH values.
The metal core is protected by a thick-walled seamless plastic lining, the large metal core can increase the mechanical strength considerably even at elevated temperature and high flow rates
Product Parameters
Model Identification
Model and parameters
Design Pressure: 1.6MPa
Item  | Model  | Flow   | Pump head   | Efficiency  | NPSHa   | Inlet*outlet   | Speed  | KW  | Cross weight  |
1  | CQB16-12-50F  | *0.6  | 2  | 8  | 9.0  | 16*12  | 2900  | 0.025  | 5  |
0.8  | 1.5  | 10  | |||||||
2  | CQB15-15-65F  | *0.8  | 3.2  | 16  | 6.0  | 15*15  | 2900  | 0.180  | 7  |
1  | 2.8  | 18  | |||||||
3  | CQB20-15-75F  | 1  | 7  | 20  | 6.0  | 20*15  | 2900  | 0.180  | 8  |
*1.6  | 7  | 22  | |||||||
4  | CQB25-20-100F  | 1  | 10.5  | 25  | 6.0  | 25*20  | 2900  | 0.370  | 12  |
*2.5  | 10.5  | 28  |

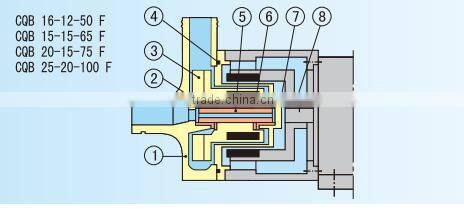

Sectional drawing
Item  | Designation  | Material  |
1  | Housing  | F50( PTFE and PEP polymers)  |
2  | Seal ring  | Fluorubber/PTFE  |
3  | Bearing  | PTFE/SIC/SSIC  |
4  | Impeller  | F50( PTFE and PEP polymers) with magnet  |
5  | Pump shaft  | Alumina/aluminium nitride  |
6  | Thrust plate  | High-density carbon  |
7  | Can  | F50( PTFE and PEP polymers)  |
8  | Drive magnet assembly  | PP/Magnet  |
OEM
Factory Basic Information:
- Established in 1985, 30 years history
 - Land area: 100,000m2, 2 factory division for chemical process pump production
 - 1 precision foundry
 - 20 Engineers R&D

Advantages
1. Research & Development: SBMC factory have a total of 20 engineer research and development team, which gives it distinct advantages in terms of product and technology upgrading.
2. Law Material Purchase:
- 28 years raw material purchasing experience
 - Fully integrated supply chain
 - High quality and affordable purchase sing cost
 - High supplier quality management

3. Quality : ISO9001 Quality Management System

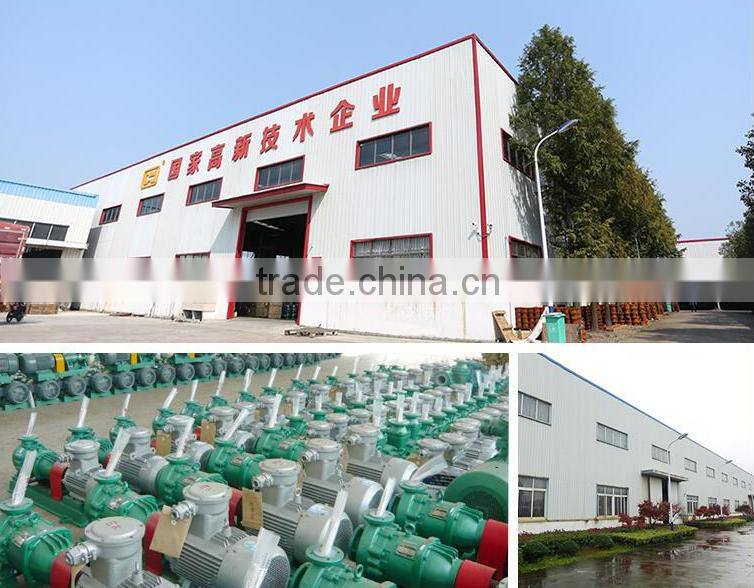

Company Show
Since from 1985, focus on magnetic drive pump and Teflon lined process pump manufacturing .
Production Process
Strictly Compliant with ISO9001 standard
Robust Service Team
Patent Certificate / Certification LOGO
Our Clients
Packaging Transportation Process
FAQ
Can you supply pump qualified with ANSI and ASME standard?Yes, our pump compliant with ISO / ASME/ANSI standard.
How can I purchase order without seeing the quality first?If it is a big order, we can provide a sample for running testing at your plant. And you can see the below our customers photos and more project reference list on.
How do you control the quality of the products?Our production is strictly according to ISO 9001 standard and factory was established in 1985, have 30 years experience in Teflon lined chemical process pumps, valves, piping and fittings.
How to customize pumps and mechanical seals ?Customers could send us application data, we will select suitable pump and seal types, or client could send us drawings, We are well in OEM and ODM.
How can I pay for my items? What is the payment you can provide?Usually by T/T, 30% down payment once PI confirmed, the balance will be paid after inspection and before shipment.
 L/C at sight
1 year for main construction warranty.
How long is production lead time?Normally 25 days. If client need urgently, we have a huge spare parts stock, we could finish assembly and testing in 7-15 days.
What is the shipping terms you can provide ?Depnends on customer's requirements, we can provide different transportantin terms, such as EXW, FOB, CIF.
Who is in charge of after-sales?Inside sales. It can save customer's time and high efficiency communicate. Shuangbao has professional after sales service team, we will follow up the client's comments and suggest them good solutions. Solve client's problems and keeping the clients profit.
Who is in charge of maintenance?Local agent. Client is first, if pump running has any problem on site, our local agent will arrival the plant within 24 hours.
Company Profile
                    Shuangbao Machinery Co., Ltd is a profassional centrifugal pump, magnetic drive pump, self-priming pump, inline pump, slurry pump, valves , piping fittings and mechanical seals for chemcial and petrochemical industry . Tel.: +86 21 68415960. e-mail: sales @sbmc.com.cn, whatsapp: 008615921321349. Year of established: 1985 Gertificate: ISO9001:2008; SGS, 15 Patent products. Annual capacity: 29,198 OEM and ODM Accept.
