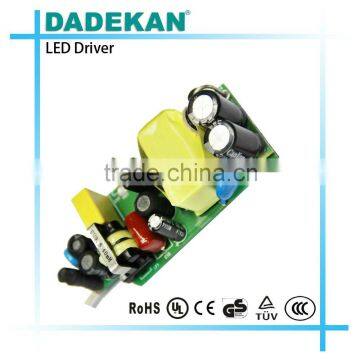

PAR38 led bulb driver 350ma

MODEL

PAR38-20A1-UA3042-035-AS

Input

Input Voltage

90VAC~264VAC

Voltage Range

100VAC~240VAC

Start-up Voltage(-25~70℃)

90VAC

Frequency Range

47Hz~63Hz

Power Factor(@25℃)

>0.95@220VAC  Full Load.

AC Current (@25℃)

0.185A  Max.

Inrush Current (@ 25℃)

10A  Max.

Output

Output Voltage Range

30V~42V

Output Current

350mA

Output Power

12~18W

Conversion Efficiency (@25℃)

89% @220VAC  Full Load.

No-load Output Voltage

54V Max.

Line Regulation (@-25~70℃)

±5%

Accuracy Constant(@-25~70℃)

±5%

Set-up Time(@25℃)

<1S@220VAC, <2S@110VAC

Temperature Coefficient(@-25~70℃)

±0.03%/℃

Overshoot (@-25~70℃)

±5%  No-load Rated Voltage

Output Ripple & Noise

0<Ta≤70℃

720mVP-P

-25≤Ta≤0℃

1800mVP-P

Protection

(-25~70℃)

Input Electrical

Low Voltage Protection

/

Over Voltage Protection

/

Output Electrical

Shorted Circuit Protection

Hiccup, Auto Recovery

No-load Protection

Constant Voltage

Over Temperature Protection

/

Environmental

Requirement

Vibration

10~500Hz, 2G 10min./1cycle, period for 60min. each along

X, Y, Z, axes

Impact

20G/11mS pulse,3times at each X, Y, Z axes

Storage Temp. & Hum.

-40℃~85℃; 10%~95%RH  No condensing

Operating amb. Temp. & Hum.

-40℃~60℃; 20%~90%RH  No condensing

Altitude

3000m

IPX

/

EMC

Isolation Resistance

Input--out: 100M OHMS

Withstand Voltage

Input--out: 3KVAC/10mA

Ground Impedance

/

Safety Standards

IEC 61347-2-13/GB19510.14/UL8750

EMI

CE

EN55015 Class B/FCC Part15 B

RE

EN55015 Class B/FCC Part15 B

Harmonic Current

EN6100-3-2, Class C

EMS

CS

EN61000-4-6 Level  2  Class B

RS

EN61000-4-3 Level  2  Class B

ESD

EN61000-4-2 Level  2

SURGE

EN61000-4-2 Level  2

Power Frequency Harassment

EN61000-4-8 Level  2

EFT

EN61000-4-4 Level  2

Other

Dimensions (L * W * H)

66mm X 29mm X 22mm;±1mm

Weight

39g;±1g

Package

/

Cooling Method

Ventilation Cooling

Reliability

Burn-in

The power supply shall go a minimum of 4 Hours burn-in test under full load condition.

Design MTBF

50,000Hrs @25℃, MIL-HDBK-217 Method 2 Components Stress Method

Design electrolytic capacitor life

17520Hrs @50℃ Full load and units continuously working

Note

1. Measured at 20MHz of bandwidth by using a 12” twisted pair-wire terminated with a 0.1 uF & 10uF parallel capacitor.

2. Test spare parts: test voltage for 500 VDC, 65% RH @ 25 ℃.

3. The SPS is considered a component which will be installed into final equipment. The equipment must be re-confirmed that it still meets EMC directives.

Minimum

Negative Load

Requirements

None
