wood type stone coated roof tile

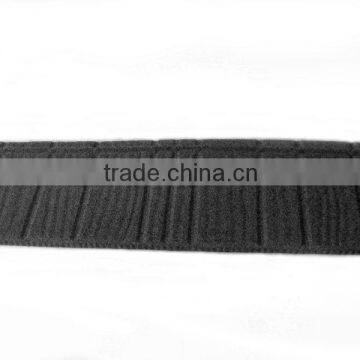

colorful stone coated steel roof tile

Colorful stone coated steel roof tile made from Zn-Al galvanized steel (galvalume steel) and painted with colorful stone chips, the main tiles and the accessories are made up of the stone chip coated metal roofing system, this roofing system is popular all over the world.

Specifications

Zn-Al galvalume steel
thickness: 0.35mm-0.50mm
size: 1340*420mm, 1400*420mm

Valid size:1270mm*380mm

The advantages of color metal tile

1. Beautiful appearance—texture and strong stereoscopic impression of natural stone , various colors and styles, good effect in decorating the buildings.

2. Durable—base material is high-strength, high rotproof Al-Zn coated steel and its rotproofness is 3-6 times higher than galvanized steel; the surface material is weathering natural colorful stone chips or inorganic pigments dyeing natural gravel and water-based acrylic resin. Life cycle of product is up to more than 30 years.

3. Light weight—1/6 weight of clay tile or cement tile to reduce the load of the building and the construction costs, easy to transport and repeated construction and installation.

4. Constructing simply—easy to be bent, cut, installed simply and fast, even in low temperature.

5. Energy-efficient and eco-friendly—1.4-7 times higher than the common roofing materials in heat-reflective rate to save energy; no harm to human and environment in eco-friendly materials

Technical Performance

1).Manpower Resistant,Climate Resisitant, Aging Resisitant:Painting film without splitting with 100h, without pulverization,without bubbles obvious color changes.

2).Heat resistant:90±2°C without obvious changes

3).Low temperature-Resistant:-40±2°C,24h without obvious changes

4).Water proofing:24h without bubbles without obvious color changes

Main physiochemical index of stone coated metal roofing tile

1.Water resistance:After 24h test without anomalies

2.Heat resistance:No abnormalities after 90°C*5 test

3.Low temperture resistance:After -40°C*24h test without anomalies

4.Alkaline resistance:After 48h test without anomalies

5.Acid resistance:After 48h test without anomalies

6.Resistance salt spry:After 240h test without anomalies

7.Cycle of freezing and thawing:After 20 times test without anomalies

8.Artificial weathering:After 1000h test without anomalies
