UFO android wifi controller route Iphone wifi controller RGBW led wifi controller more than 16 million colors

UFO android wifi controller route Iphone wifi controller RGBW led wifi controller more than 16 million colors

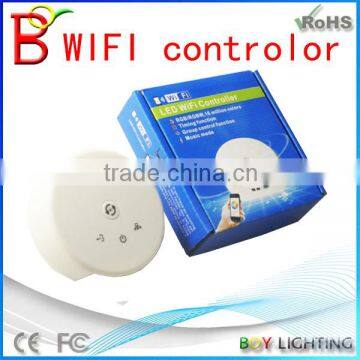

Product picture:

UFO wifi controller Packing:

Product Spec

Product Features :

1) RGB/RGBW, 16 million colors, built-in 20 dynamic model, DIY model, music mode
2) Divide into groups function.
3) Timing function, automatic turn on/off as your setting time. Set any dynamic models.
4) Allocate to router by one key "WPS".
5) After connecting router, controller wifi signal will be hided automatically to prevent hotlinking.
6) Memory function, keep same status as last time after power off.
7)Controlled  by phone or integrated control by router.
8)Suitable for low voltage (12V-24V) light, such as 12V LED strip, 12V panel light etc.
9)Operating platform: requires Android 2.3.3 or later,IOS 6.0 or later

Product  Connect :

Input: (wire terminal or DC head)
V+: connect anode of power supply
V-: connect cathode of power supply
Output:
V+: connect anode of lamp
R: connect anode of red color
G: connect anode of green color
B: connect anode of blue color

W: connect anode of white color if your light have this port

Download Magic home:

Find the led wifi:

Connect led wifi and open Magic home:

You can control led colors by the phone:

Software User Manual

1)  Android:

Name:Magic UFO -WiFi Controller

Running platform: requires Android 2.3 with wifi function or later

Language: Chinese/English, app shows same language as your system’s in default

2)  IOS:

Name:Magic UFO-WiFi

Running platform: requires ISO 6.0 or later

Language: Chinese/English, app shows same language as your system’s in default

3)Go in “setting” interface to set WiFi. Click " LEDnetxxxxxxxxxxxx" WiFi signal, then input wifi password 88888888.

 Start app “magic UFO”, then you can find that device.  or  scan by QR code, then download and install it .

How connect  the LED controller to router by One-Click  WPS ?

If you have a wireless router , you can connect LED controller box to router first , then conecct phone  (wifi) to router and open app to control led controller box

 How reset your controller ?
