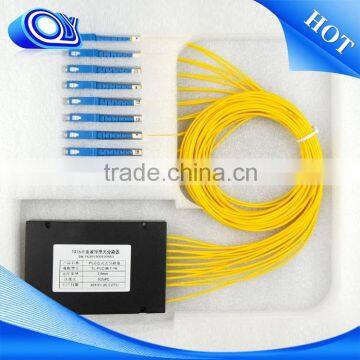

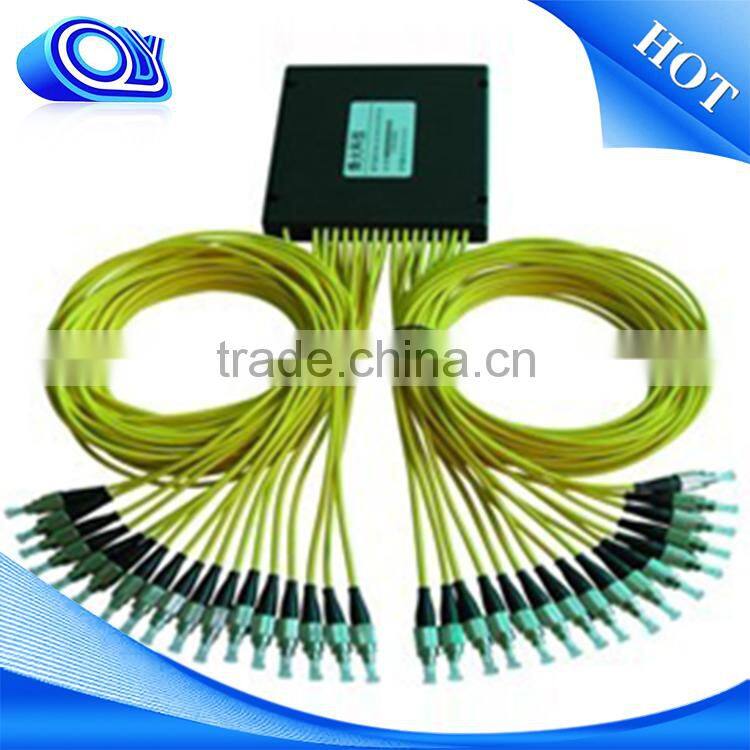

1x16 Mini Plc Splitter CWDM System/PON Networks/CATV Links Optic Fiber Splitter

Ports

1×2

1×4

1×8

1×16

1×32

1×64

Operating Wavelength (nm)

1260~1650

Insertion Loss (dB)

Max(P/S)

3.8/4.0

7.1/7.3

10.2/10.5

13.5/13.7

16.5/16.8

20.5/21.0

Loss Uniformity (dB)

Max

0.6

0.6

0.8

1.2

1.5

2.5

PDL (dB)

Max

0.15

0.15

0.25

0.3

0.3

0.3

Return Loss (dB)

Min

UPC:50   APC:55

Directivity (dB)

Min

55

Standard Input Fiber

Bend Insensitive SM Single Fiber(ITU G.657A)

Standard Output Fiber

Bend Insensitive SM Ribbon Fiber(ITU G.657A)

Standard Output Color

Blue, Orange, Green, Brown, Grey, White, Red ,Black(TIA/EIA 598-B)

Max. Optical Power(mw)

300

Humidity Range(rh)

5%~85%

Operating Temperature(℃)

-40~+85

Storage Temperature(℃)

-40~+85

Connector Options

FC/SC/LC/ST/MU

Packaging Options

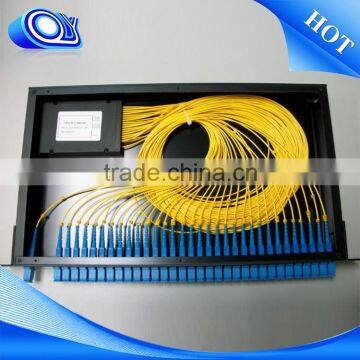

Bare Device*Mini Tube*ABS Module*LGX Box*19''/23'' Rack-mount

*Telcordia GR-1221-CORE&G-1209-CORE Compliant.
*Premium spec available upon request. (P/S: Premium Grade/Standard Grade)
*Typical value at +23℃ without connectors losses.

Factory Scale:

Total Area of: 8000 square meters

Factory history: 10 years

Production Staff: 60 to 100
QC Staff: 10 to 12
R&D Staff: 5 to 10

Certificates:

ISO9001:2015

SGS

RoHS

CE

Logistics Ability:

Arrange the Mixed logistical for Election delivery as By Air and By Sea,

over 10 years’ experience for logistical arrange.

Features;

Good uniformity and low insertion loss

 Low Polarization Dependent Loss

Excellent Environmental Stability

Excellent Mechanical

Stability

Delivery Time:

Material Preparation Time: 3 days (or inventory)

Production & Assembly Time 7 days

Testing & Packaging Time: 2 days

Total Delivery Time:  15 days in 15000pcs

 for safe delivery lead time.

The faster delivery could be negotiable.

Applications:

1.Asynchronous Transmission Mode(ATM)     Package for 100PCS   :

2.Passive optical networks (PON)

3.Fiber to The Home (FTTH)                          Package dimensions :46 X 33 X 23 CM

4.Local Area Networks (LAN)

5.Cable Television (CATV)

6.Test Equipment
