Home > Products > Xenon aging chamber > Xenon Lamp Climatic Simulation Testing Chamber for Lab
Xenon Lamp Climatic Simulation Testing Chamber for Lab
- SHENZHEN XIANGGANG TIANJING
- T/T Credit Card
You May Like
Product Details
| Place of Origin | Guangdong, China | Brand Name | SANWOOD | |
| Model Number | SM-XD | Power | Electronic | |
| Usage | Universal Testing Machine |
Product Description

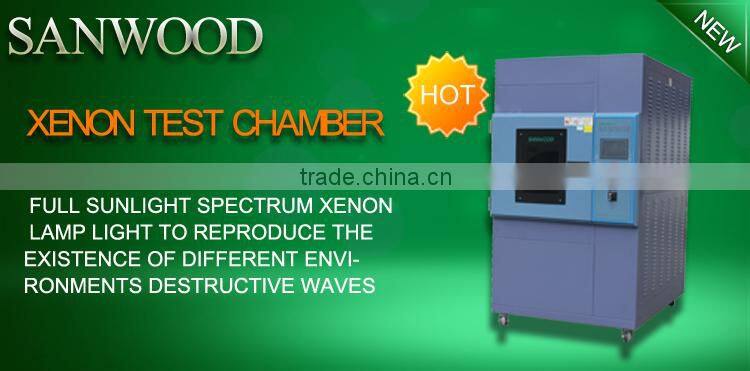

Xenon Lamp Climatic Simulation Testing Chamber for Lab

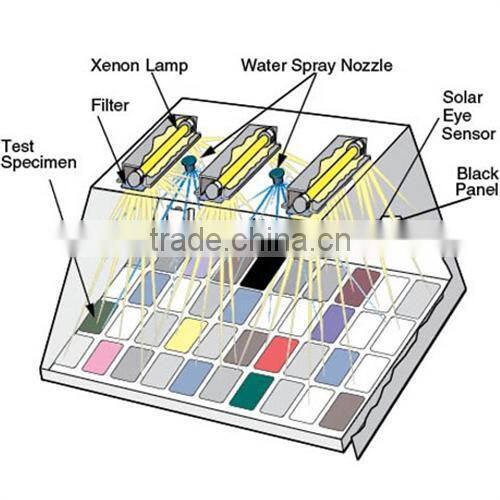

Xenon weathering ometer adopts the xenon arc lamp that can simulate full sunlight spectrum to reproduce destructive light waves existing in different environments so as to provide the corresponding environment simulation and acceleration test for scientific research, product development and quality control. It is approved by many OEMs in the automotive, paints and coatings, and plastics industries as the exclusive platform to deliver accurate, and repeatable results for predicting service life.

Xenon Lamp Climatic Simulation Testing Chamber Advantage:

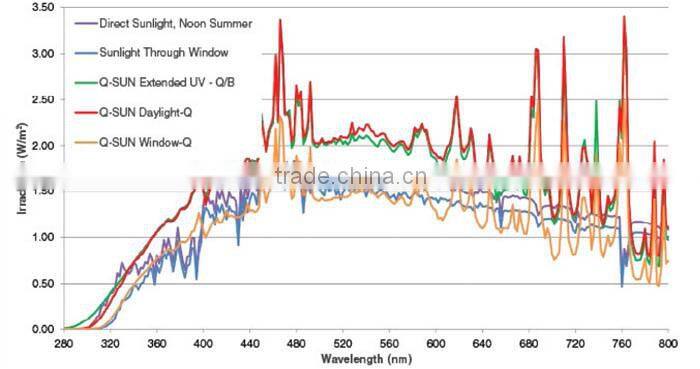

1. The full spectrum of xenon lamp
2. Irregular shape sample holder
3. Multiple alternative filtration systems
4. High quality low price Xenon arc lamp


| Xenon Lamp Climatic Simulation Testing Chamber Model | SM-300XD | SM-800XD | SM-1200XD | |
| Inner size(W*H*D mm) | 600*800*600 | 900*900*900 | 1000*1200*1000 | |
| Water cooled xenon lamp power(kw) | 4.5KW | |||
| Xenon Lamp Climatic Simulation Testing Chamber Performance indicator | Temperature range | RT+10℃~90℃ | ||
| Gumidity range (light) | 10%~70%R.H | |||
| Gumidity range (dark) | 10%~95%R.H | |||
| Rainfall time | 1~9999h/59min adgustable | |||
| Rainfall cycle | 1~9999h/59min adgustable | |||
| Illuminant | 280nm~800nm | |||
| Irradiance deviation | ±0.1 W/m2 | |||
| Ultraviolet radiation intensity | 150±8mW/cm2 | |||
| UV illumination distribution | 90% Uniformity of 90% | |||
| Irradiatometer | meet the test requirement | |||
| Irradiance calibration function | Automatic calibration, and meet the requirements of the National Metrology Department | |||
| Xenon lamp power | 4.5KW(life span:2000h) | |||
| Effective radiating area | 190*422mm | |||
| Temperature and humidity control system | Accuracy range | Set location precision :temperature±0.1 humidity±1%R.H | ||
| Temperature and humidity sensor | Platinum resistance.PT100Ω/MV | |||
| Heating system | independent system-wide , Ni Cr alloy electric heating type heater | |||
| Humidity System | External isolated, stainless steel shallow surface evaporative humidifier | |||
| Black Panel Temperature | 40-110℃ | |||
| Water supply system | Bring filter,Automatic control by humidifying water. Cooling water loop xenon lamp | |||
| Temperature controller | Imported weinview color touch screen and PLC control module Siemens Germany | |||
| Cycle system | High quality carbon steel phosphating, electrostatic spray processing | |||
| Material used | Outside mertail | High quality carbon steel phosphating, electrostatic spray processing | ||
| Outside mertail | SUS304 stainless steel plate | |||
| Sample material | SUS304 high quality stainless steel bar | |||
| Door insulation | High temperature aging silicone rubber door seal | |||
| Xenon Lamp Climatic Simulation Testing Chamber Safety protection | Leakage, short circuit, over temperature, water shortage, motor overheating, over current protection | |||
| Xenon Lamp Climatic Simulation Testing Chamber Supply voltage | AC380V±10% 50±0.5Hz Three phase five wire system Phase | |||
We have independent quality control department, each production process will pass through
the three test. If it is not qualified products, it will be returned to re-production.
Cost
PARTNERS AND SERVICE
AFTER SALES SERVICE
ALL OF OUR TEST CHAMBERS HAS ONE YEAR WARRANTY.
SANWOOD REPAIR THE EQUIPMENT IS UNDER THE ORDINARY USAGE AND ARISE ANY
HARDWARE PROBLEMS WHICH CAUSED BY PRODUCT ITSELF, RATHER THAN HUMAN
ERROR.
FIRSTLY, WE CAN PROVIDE THE SPARE PARTS WITH YOU. AND ALSO PROVIDE THE
SOLUTION ABOUT THE TROUBLE OF THE EQUIPMENTS.
SECONDLY, PLEASE SEND BACK THE EQUIPMENT, WHICH WILL BE REPAIRED BY OUR
COMPANY.
LASTLY, WE WOULD LIKE TO APPOINT OUR TECHNICAL ENGINEER TO YOUR COMPANY
TO REPAIR THE EQUIPMENT.
1.Do you have any advantages in Xenon Lamp Climatic Simulation Testing Chamber price?
SANWOOD has 8000 production bases in Dongguan, China. Factory direct sales, can reduce the cost of agency for you.
2.May I ask you how do you deliver Xenon Lamp Climatic Simulation Testing Chamber?
We have so many ways of Xenon Lamp Climatic Simulation Testing Chamber delivery, such as FOB, CIF,etc.
3.Is there a variety of language options for your operating system?
We use Korea SAMWON controller system, it has Russian, English, Chinese, Korean and other languages.
4. How long is the warranty period of your Xenon Lamp Climatic Simulation Testing Chamber?
We provide free parts replacement service for accessories with one year.
5. When will you give a respond if your Xenon Lamp Climatic Simulation Testing Chamber break down?
We will give you guidance by video conference when we receive your need of requirement.
The above is " Xenon Lamp Climatic Simulation Testing Chamber" items, Please contact us freely, we are always here to support you. If you have any question,we can have a talk. We are partner, thank you! = =)
